120W LED Street Light Fixtures 12000lm for Roadway Die casting Aluminium

China 120W LED Street Light Fixtures 12000lm for Roadway Die casting Aluminium supplier
120W LED Street Light Fixtures 12000lm for Roadway Die casting Aluminium supplier 120W LED Street Light Fixtures 12000lm for Roadway Die casting Aluminium supplier

Large Image :  120W LED Street Light Fixtures 12000lm for Roadway Die casting Aluminium

Product Details:

Place of Origin: China
Brand Name: Die Casting Man
Certification: CE
Model Number: ZHSL-14-120

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: Carton box
Delivery Time: 7-30 days base on order quantity
Payment Terms: By T/T 30% in advance and 70% after shipment EXW/FOB NINGBO, Western Union, L/C
Supply Ability: 10000PCS/Month.
Contact Now
Detailed Product Description
Manufacturer: Ninghai Zhouhua Die Casting Co.,Ltd Material: ADC12 Aluminum
CRI: >70 Fixture Color: Grey
Input Voltage: AC85 - 265V Working Ambient Temperature: -30℃ - 50℃
IP: 65 Lamp Power: 120


Newest IP65 120W LED STREET LIGHT FIXTURES



Product Code ZHSL-14-120
Electric current 2250mA
Rated Power 120W
Color Temperature 3000/4000/6500K
Luminous Flux 1400Lm±5%
Input Voltage AC100-270V
Frequency Range 50/60Hz
Power Factor PF>0.9
color rendering index 70-80Ra
Temperature of Working Condition -35°C~50°C
Humidity of Working Condition 20%-90%
LED Lifetime 70000h
Protectin Grade IP65
Installation Pipe Diameter φ70mm
Installation Height 8-10m
Net Weight 8.2kg
Gross Weight 10.1kg
Packing Size 980*410*200mm


Item no:

ZHLS-14-120



Production Lead Time*:

7-30 Days

Shipping:

EXW / FOB NINGBO

Quantity:

10pcs


120W LED Street Light Fixtures 12000lm for Roadway Die casting Aluminium

LED Engine Module


·                     High power integrated packaging LED chips, 120° beam spread available

·                     Minimum CRI of 70, custom CRI available

·                     Operating temp: -30º C to +60º C

·                     No toxic chemicals / ROHS compliant

·                     Low Tj for long life, low lumen depreciation

·                     CE certified, meets ROHS standards

·                     Eligible for Rebates, Design Lights Consortium® Qualified*

·                     50-80% energy savings

·                     Manufactured in the China

·                     Standard distribution is Type V, others distributions available
Electrical

·                     Standard AC input of 85-265v VAC, up to 480v available

·                     EMI filter: 47CFR, part 2, part 15

·                     Power factor: >0.9

·                     Total harmonic distortion: <20%

·                     Surge protection: IEC/EN 61000-4-5 EMC test standard

·                     Licensed electrician required for installation
Housing

·                     Rugged, fully sealed, die-cast aluminum housing

·                     UV-resistant, multi-layer, architectural color, powder coat finish

·                     High impact, heat resistant, tempered lens
Energy Control Options

·                     Motion detection available

·                     Photo sensors available

Feature
.Die casting aluminum body with anti-corrosion treatment.
.Highly polished aluminum reflector.
.Toughened glass with good light transmition rate.
.IP65 Rated for external use
.Equipped with LG/CREE LED chip, generate high luminous flux
.LED emiiter brand can be varied according to requirement.
.High efficient and power factor LED power supply.
.Longlife span over 50000 Hours.
.Obtain a 50-70% Energy Saving compared with Halogen Lamps.

Application:
Motorways , Major roads, minor roads, roundabouts, crossings and industrial areas.

Available housing colors: Black, Grey, White.


We are a professional Die casting factory for around 30years.

If you are importing lighting fixture,of sure our company will be a good option for you since:

1)we can use the material according to your component request.
2)we are die-casting manufacturer for around 30year, we are professional on lighting design and  the quality and cost control.
3)we have profession engineer to make sure the design of the housing or the technical date of the product is meet your requirement.
   make your idea/drawing to be truth.
4)we are a lighting industrial park,so we can offer the best delivery for you.
5)we have good experience on assembling and  exporting lighting fixture for around 10 years,so can offer you very good service.

Note: Additional wattages and configurations available upon request. Specifications are subject to change without notice.
120W LED Street Light Fixtures 12000lm for Roadway Die casting Aluminium120W LED Street Light Fixtures 12000lm for Roadway Die casting Aluminium

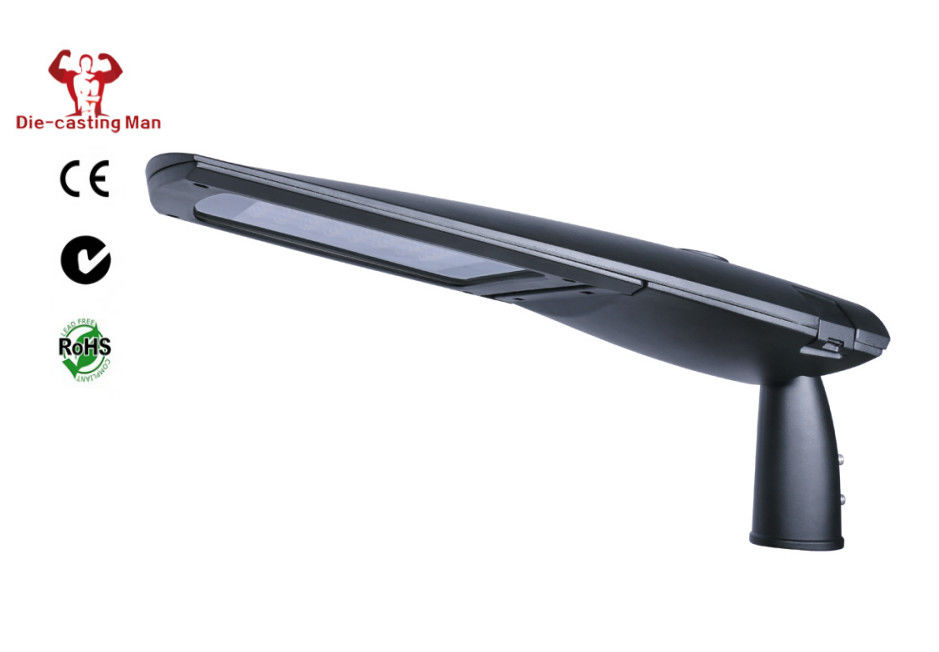

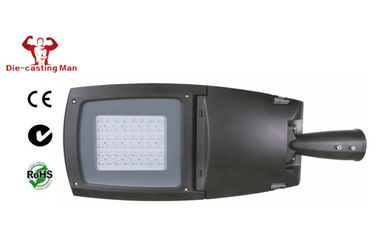

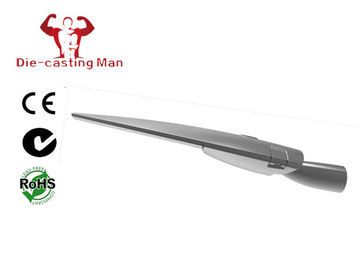

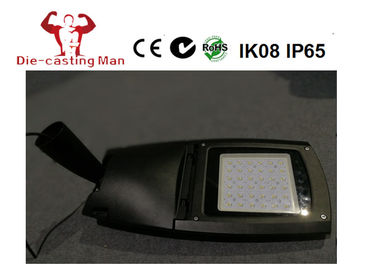

Fixtures picture front.
120W LED Street Light Fixtures 12000lm for Roadway Die casting Aluminium
120W LED Street Light Fixtures 12000lm for Roadway Die casting Aluminium


Lighting Distribution Curve:

120W LED Street Light Fixtures 12000lm for Roadway Die casting Aluminium
