50-150Watt Outdoor LED Street Lights 110Lm/w Aluminum IP65 for Main Road and Industrial Area

China 50-150Watt Outdoor LED Street Lights 110Lm/w Aluminum IP65 for Main Road and Industrial Area supplier
50-150Watt Outdoor LED Street Lights 110Lm/w Aluminum IP65 for Main Road and Industrial Area supplier 50-150Watt Outdoor LED Street Lights 110Lm/w Aluminum IP65 for Main Road and Industrial Area supplier 50-150Watt Outdoor LED Street Lights 110Lm/w Aluminum IP65 for Main Road and Industrial Area supplier 50-150Watt Outdoor LED Street Lights 110Lm/w Aluminum IP65 for Main Road and Industrial Area supplier

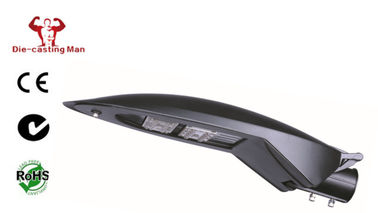

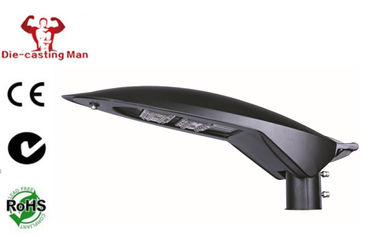

Large Image :  50-150Watt Outdoor LED Street Lights 110Lm/w Aluminum IP65 for Main Road and Industrial Area

Product Details:

Place of Origin: China
Brand Name: Die Casting Man/OEM
Certification: CE,ROHS, ENEC
Model Number: ZHSL-07-50

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: Carton box with foam
Delivery Time: 7-30 days base on order quantity
Payment Terms: By T/T 30% in advance and 70% after shipment EXW/FOB NINGBO, Western Union
Supply Ability: 10000PCS/Month.
Contact Now
Detailed Product Description
Manufacturer: Ninghai Zhouhua Die Casting Co.,Ltd Material: ADC12 Aluminum
Wattage: 80 Fixture Color: Gold Grey
LED Color: WW/NW/CW CRI: >70
Input Voltage: AC85 - 265V Frequency Range: 50 - 60Hz
Working Ambient Humidity: 10% - 90% Working Ambient Temperature: -30℃ - 50℃

 SMD 50-150W LED Led Street Light Fixtures with standard Module lens



Quick Detail:

ZHSL-07-50 & ZHSL-07-100



Name

50W module Led Steet light

Application

Use for Street

Color

Grey,black,White

Feature

New Design

Lamp Luminous Flux(lm)

8000

Certificate

TUV/UL /CE/ROHS



Description:

New Patent 50W SMD LED streetlight made of High quality Die Casting Aluminum housing +Cree LED +UL LED Driver



1. The latest version of high power SMD LED Street Light Housing



2. State-of-art designing with completed die-casting body as heat sink offer the maximum heat management system,which can hold maximum 120pcs of 1W Creee SMD led.



3. Patented anti-glare optic lense enable this street light give an maximum 130 degree and 140 degree light spread,with an asymmetrical polar curve.



4. IP65 protection grade.



5. User-friendly mechanical  designing,easy to assemble the led,potic lense and led power supply.



6.The Led power supply is designed to installed with two U brackets,so any brand of led power supply can be easily installed.





Applications:



minor roads,Motorways,Major roads,roundabouts,crossing and industrial areas.





Specifications

50-150Watt Outdoor LED Street Lights 110Lm/w Aluminum IP65 for Main Road and Industrial Area



Model Number

ZHSL-07-50

Electrical Specifications

LED QTY



TotaLPower consumption

80W

Operation Voltage

85-265VAC or 12VDC or 24VDC

Operating Humidity

10%~90%

Working Temperature

-30 ~ 50°C

Power Fact(PF)

>0.95

Driver Efficiency

> 0.9

Photometric Specifications

LED Luminous Flux

8000 lm - Initial



7200 lm - Maintain

Led Luminous Efficiency

>90LM/W

CRI

Ra ≥ 70

LED Color

3000k-6500k

Mechanical Specifications

IP Rating

IP65

Warranty

3Years

Heat Radiator

die-casting body as heat sink

Lens

tempering glass

Fixture Dimension

858x364x134MM

Fixture Weight

11kgs(24.3lbs)



Packing Information

Packing Type

1unit /ctn

Packing Dimension

97x45.5x22cm (38.2” x17.9” x8.7”)

Packing Weight

12kgs(26.5lbs)



Our service:



your inquiries will be replied in 24 hours in our working days.

  • 3years warranty under normal use.
  • Professional design provided.
  • Timely delivery guaranteed.
