Product Details:
Payment & Shipping Terms:
|
| Material: | ADC 12 Aluminum | Input Wattaage: | 50W |
|---|---|---|---|
| Color Temperature: | 3000/4000/6500K | Luminous Flux: | 5250~6000 Lm |
| Color Rendering Index: | Ra≥70 | LED Lifetime: | 50000h |
| High Light: | outdoor light housing,street light housing |
||

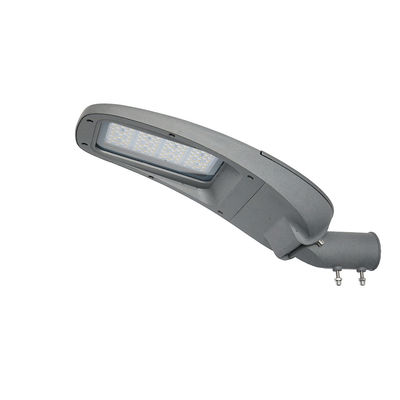

50W 100W Road Outdoor LED Street Light Housing IP65 Aluminum Die-Casting Housing
YASL-03 Family Product Specification
| Product Code | ZHSL-03-40 | ZHSL-03-50 | ZHSL-03-100 | ZHSL-03-200 |
| Input Wattage | 40W | 60W | 120W | 200W |
| Color Temperature | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K |
| Luminous Flux | 3000-3600lm | 6600-7200lm | 13200-14400lm | 22000-25000lm |
| Input Voltage | AC90-305V | AC90-305V | AC90-305V | AC90-305V |
| Frequency Range | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
| Power Factor | PF≥0.95 | PF≥0.95 | PF≥0.95 | PF≥0.95 |
| Color rendering index | Ra≥70 | Ra≥70 | Ra≥70 | Ra≥70 |
| Temperature of working condition | -40-50℃ | -40-50℃ | -40-50℃ | -40-50℃ |
| Humidity of working condition | 20%-90%RH | 20%-90%RH | 20%-90%RH | 20%-90%RH |
| LED Lifetime | 50000h | 50000h | 50000h | 50000h |
| Protection Grade | IP66 | IP66 | IP66 | IP66 |
| Installation Pipe Diameter | Φ50mm | Φ60mm | Φ60mm | Φ60mm |
| Installation Height | 4-6m | 4-8m | 8-12m | 10-14m |
| Net Weight | 3.7kgs | 5.5kgs | 7.5kgs | 11.8kgs |
| Gross Weight | 4.0kgs | 6.0kgs | 8.0kgs | 12.5kgs |
| Packing Size(mm) | 570*240*255 | 680*295*150 | 750*355*165 | 915*415*185 |
| Product Size(mm) | 500*210*151 | 618*260*187 | 684*300*185 | 850*365*198 |
