Dmmiable 30W 40W Outdoor LED Street Lights With Aluminium Die Casting Body

China Dmmiable 30W 40W Outdoor LED Street Lights With Aluminium Die Casting Body supplier
Dmmiable 30W 40W Outdoor LED Street Lights With Aluminium Die Casting Body supplier Dmmiable 30W 40W Outdoor LED Street Lights With Aluminium Die Casting Body supplier Dmmiable 30W 40W Outdoor LED Street Lights With Aluminium Die Casting Body supplier

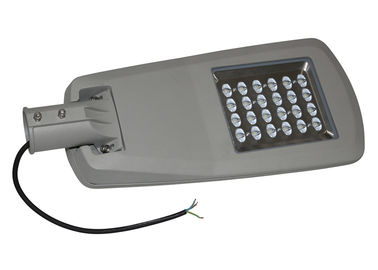

Large Image :  Dmmiable 30W 40W Outdoor LED Street Lights With Aluminium Die Casting Body

Product Details:

Place of Origin: China
Brand Name: Die-casting Man
Certification: CE, RoHs
Model Number: ZHSL-11-30

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: 1pc/bag/foam/carton, pallet optional
Delivery Time: 7-10 days based on order QTY
Payment Terms: T/T, 30% T/T as deposit, 70% T/T balance before delivery(EXW) or against shipping documents(FOB Ningbo), L/C
Supply Ability: 30000pcs/month
Detailed Product Description
Manufacturer: Ninghai Zhouhua Die-casting Co., Ltd Material: ADC-3 Die-casting Aluminium
Cover: Toughened Glass Screws:: 304 Stainless Screws
Color: Grey/ Black/ White Warranty: 5 Years

High-pressure Aluminium Die-casiting Body IP66 CE Certified LED street light 30W 40W , Photocell , Dmmiable optional



Item NO.: ZHSL-13-30



Production Description:

- SL-11 series luminaire is the ideal solution that fufils requiremnents of dunctional street lighting and residential areas, which working with outstanding heat dissipation and compacting system. Equipped with high-quality electrical components, long lifespan is assured. Tool-free design and disconnector device, enable easy, safe and minimal cost for maintenace. Efficient system also reduce energy consumption and creat a more attractive urban living environment and visual comforts for public and residential areas.

- With patented housing design and range of optics, SL-11 series luminaires is also a perfect choice for project oriented usage.



Technical Datas:

Item NO. ZHSL-11-30
Power 30w
LED chip LUXEON 3030 2D
LED Quantity 48pcs
LED driver MeanWell / Inventronics
Input Voltage AC 90-305V
Frequency 50/60Hz
Power Factor >0.9
Total flux >3600lm
Working temperature -40℃-50℃
Working Humidity 20%-90% RH
Optic angle 135°* 85°  , Type I, II, III, IV
Color Rendering Index Ra>70
Color Temperature 2700-6500K
Life Span ≥70000h
Protection Grade IP66/IK08
Installation Pipe Diameter Φ50mm/Φ60mm
Installation Height 3-6m
Product Dimension 519*220*117mm
Net Weight 2.8KG
Gross Weight 3.5KG
Packing Size 557*358*155mm



Features:

- European standard high-pressure aluminium housing material ADC-3

-Patented Ribbon-Free housing technology

- Excellent thermal management

- Outstanding self-cleaning capability

- Patented optics for increased application efficiency

- Tool-free maintenance

- Electrical disconnector, automatically disconnect the power supply when opening the luminaire

- Post-top or side-entry mounted +15° or -15° title

- Toughed glass with 4mm thickness, IK08 Impact Resistance; IK09 with 5mm glass optional



 LED Engine Module

  LED life time of 100,000 hours at 25℃ ambient temperature

  Lumiaire efficiency: 110-130lm/w

  CCT: 4000k (3000K/ 5000K/ 5700K upon request)

  CRI: >70; >80 (upon request)

  Operating temperature range: -30 to 45 ℃





Electrical

  MeanWell / Inventronics optional (other brand of driver upon request)

  Class I or  Class II

  Input Voltage: 90-305VAC/50-60Hz, 170-305VAC/ 50-60Hz

  10KV/20KV SPD

   Power automatically switch off when opening



Dimming:

  Dali

  1-10V

  PWM

  AstroDIM for autonomous dimming with five independent levels

  Smart control management system



Options:

  Photocell

  Surge protection device (up to 20KV)

  0.5m External cable(Other length upon request)

  Smart control device

  Motion detection



Standards & Certifications:

  CE, ROHS, ENEC pending, GS pending, IEC pending, LM79 pending, TM21 pending



Dmmiable 30W 40W Outdoor LED Street Lights With Aluminium Die Casting Body

Dmmiable 30W 40W Outdoor LED Street Lights With Aluminium Die Casting Body











Dimension:

ZHSL-11-30

Dmmiable 30W 40W Outdoor LED Street Lights With Aluminium Die Casting Body





Application:

  Highway roads

  Streets

  Parking lots

  Residential areas



Why us?

1) We are not only a die casting factory, but also a factory consist of a completed lighting design team, tooling and mold development workshop, auto-painting finishing lines, assembly lines, and completed lighting products testing.

2) All of the material and finished products will be tested under the ISO9001 quality control system.

3) We have many advanced equipments, such as semi-automatic die cast machines, CNC treatment, and full sets of completed lights IP testing, lumen test ,aging test, and photometric testing equipments. All those facilities make sure the quality is approved by CE, RoHS, TUV certificate.

4) Our team develops new items every year according to different market’s style. The products rang is including LED street light, LED urban light, LED High bay light and LED tunnel light. Our new patent design of led street lights is very popular in the market.

5) In order to meet more and more requirements of customers, we offer ODM and OEM good service. Welcome to contact the sales and visit Zhouhua factory to discuss face to face.
