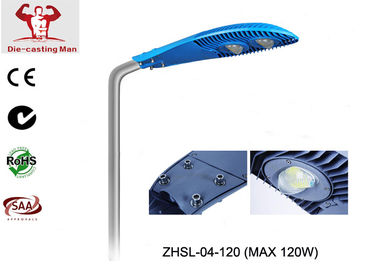

120w Aluminum Die casting Meanwell Photocell Led Street Light Housing

China 120w Aluminum Die casting Meanwell Photocell Led Street Light Housing supplier
120w Aluminum Die casting Meanwell Photocell Led Street Light Housing supplier 120w Aluminum Die casting Meanwell Photocell Led Street Light Housing supplier 120w Aluminum Die casting Meanwell Photocell Led Street Light Housing supplier

Large Image :  120w Aluminum Die casting Meanwell Photocell Led Street Light Housing

Product Details:

Place of Origin: China
Brand Name: Die-casting Man
Certification: CE, RoHs
Model Number: ZHSL-04-120

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: 1pc/bag/foam/carton, pallet optional
Delivery Time: 7-10 days based on order QTY
Payment Terms: T/T, 30% T/T as deposit, 70% T/T balance before delivery(EXW) or against shipping documents(FOB Ningbo), L/C
Supply Ability: 30000pcs/month
Contact Now
Detailed Product Description
Manufacturer: Ninghai Zhouhua Die-casting Co., Ltd Material: ADC-3 Die-casting Aluminium
Beam Angle: 150*70 Degree Working Lifetime: >70000hrs
LED Driver: M/W , Inventronics Installation Pipe Diameter: 60mm

120w Aluminum Die-casting Meanwell Photocell Led Street Light Housing 10KV 20KV SPD Waterpfoof IP66 for Urban Area



Item NO.: ZHSL-04-120



Production Description:

The ZHSL-04 series offer a high power LED street lighting alternative with ultra-modern styling and a robust hard-shell exterior. An incredibly versatile unit for any application.



Advanced Features:

1, Robust Die-cast 5mm hard-shell

2, High wind resistance / excellent heat dissipation

3, Class Leading LED Optics with interchangable lenses

4, Light dispersion between 120-150

5, Ideal for high vandalism areas

6, Fully titable pole bracket

7, Smart lighting - Progammable controller option compatible

8, Inbuilt lightning Surge Arrestor & Optional Day/ Night Sensors.



Technical Datas:

Item NO. ZHSL-04-120 ZHSL-04-120 ZHSL-04-120
Power 80w 100w 120w
LED chip Bridgelux  Bridgelux Bridgelux
LED Quantity 2pcs 2pcs 2pcs
LED driver MeanWell / Inventronics MeanWell / Inventronics MeanWell / Inventronics
Input Voltage AC 90-305V AC 90-305V AC 90-305V
Frequency 50/60Hz 50/60Hz 50/60Hz
Power Factor >0.9 >0.9 >0.9
Total flux >9600lm >12000lm >14400lm
Working temperature -40℃-50℃ -40℃-50℃ -40℃-50℃
Working Humidity 20%-90% RH 20%-90% RH 20%-90% RH
Optic angle 150°* 70°, other optic angle optional 150°* 70°, other optic angle optional 150°* 70°, other optic angle optional
Color Rendering Index Ra>70 Ra>70 Ra>70
Color Temperature 2700-6500K 2700-6500K 2700-6500K
Life Span ≥70000h ≥70000h ≥70000h
Protection Grade IP66/IK09 IP66/IK09 IP66/IK09
Installation Pipe Diameter Φ60mm Φ60mm Φ60mm
Installation Height 8-10m 8-10m 10-12m
Product Dimension 880*291*131mm 800*291*131mm 800*291*131mm
Net Weight 6.7KG 6.7KG 6.7KG
Gross Weight 8.0KG 8.0KG 8.0KG
Packing Size 860*330*160mm 860*330*160mm 860*330*160mm





Standards & Certifications:

CCC, CE, EMC, GS, LVD, RoHS, SAA



Product Detail:

Lamp body is processed by advanced aluminum die molding and anodized, with good corrision resistance; finned cooling structure, the heat dissipation area is large enough, good heat dissipation effect promptly, to ensure the light-source long life

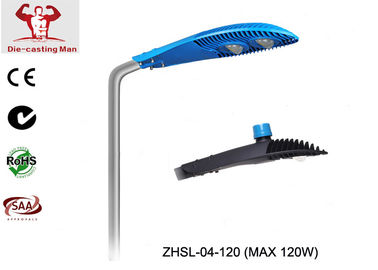

120w Aluminum Die casting Meanwell Photocell Led Street Light Housing



Lights interfaces, and a light source are using stainless steel screws Hexagon lock, good sealing performance; and overall very strong joints, loose parts or corrosion problem does not occur.

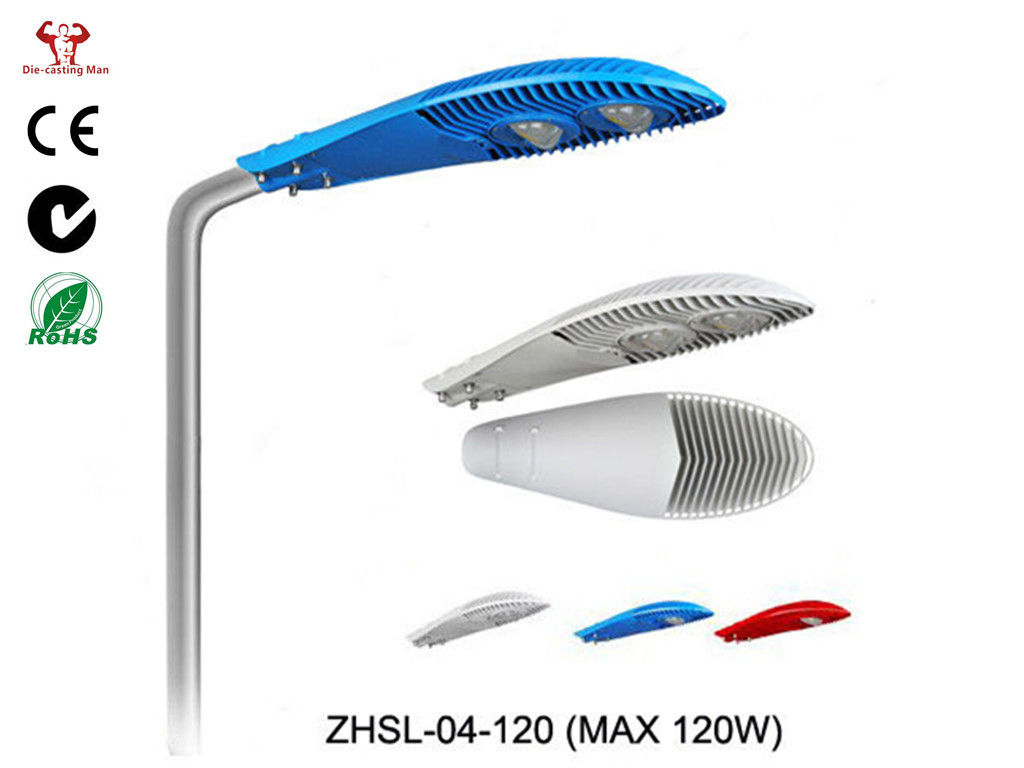

120w Aluminum Die casting Meanwell Photocell Led Street Light Housing

Dimension & Light Distribution Curve:

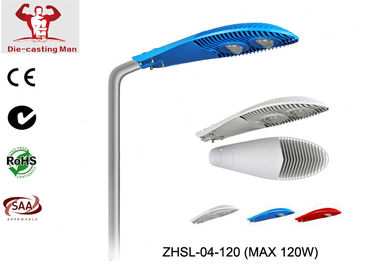

120w Aluminum Die casting Meanwell Photocell Led Street Light Housing



Application:

  Car Park & Intersection

  Caravan & Holiday Parks

  Council & Government

  Jetties & Coastal

  Mining & Industrial

  Pathway. Bike Trail & Minor Road

  Public Spaces & Parks

  Rural & Off Grid

  Security & Safety

  Smart Lighting



Why us?

1) We are not only a die casting factory, but also a factory consist of a completed lighting design team, tooling and mold development workshop, auto-painting finishing lines, assembly lines, and completed lighting products testing.

2) All of the material and finished products will be tested under the ISO9001 quality control system.

3) We have many advanced equipments, such as semi-automatic die cast machines, CNC treatment, and full sets of completed lights IP testing, lumen test ,aging test, and photometric testing equipments. All those facilities make sure the quality is approved by CE, RoHS, TUV certificate.

4) Our team develops new items every year according to different market’s style. The products rang is including LED street light, LED urban light, LED High bay light and LED tunnel light. Our new patent design of led street lights is very popular in the market.

5) In order to meet more and more requirements of customers, we offer ODM and OEM good service. Welcome to contact the sales and visit Zhouhua factory to discuss face to face.
