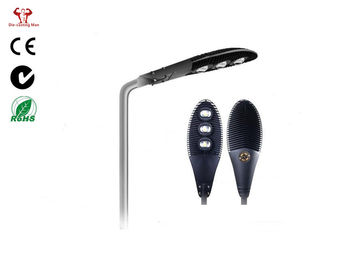

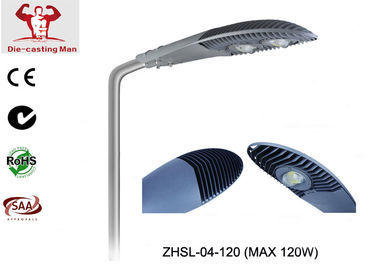

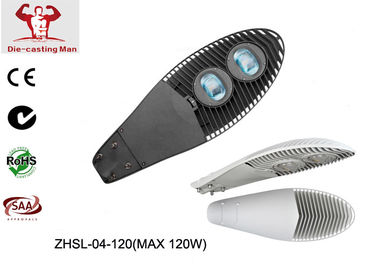

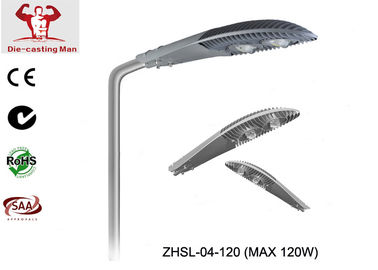

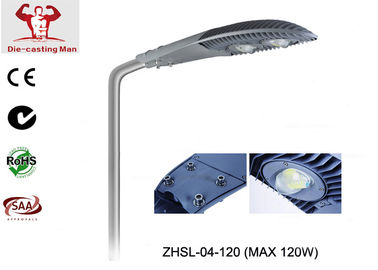

Die casting Aluminium CE IP66 LED Street Light Housing 120 Watt With Meanwell LED Driver

Good quality LED Street Light Housing for sales
Good quality LED Street Light Housing for sales
Gold supplier, save me a lot of time to do the purchasing! And always giving professional suggestion, help me a lot in business! Thanks!

—— Ian Nicholas USA

Good quality products, low price and high quality services. Worthy trust and recommending business partner.

—— Michal Jussize

Hi,Summer, I have received the cargo. I want to say that we are very satisfied with your product and exelent service. I want also make a new order.

—— Ryan Retherford

I'm Online Chat Now

Die casting Aluminium CE IP66 LED Street Light Housing 120 Watt With Meanwell LED Driver

China Die casting Aluminium CE IP66 LED Street Light Housing 120 Watt With Meanwell LED Driver supplier
Die casting Aluminium CE IP66 LED Street Light Housing 120 Watt With Meanwell LED Driver supplier Die casting Aluminium CE IP66 LED Street Light Housing 120 Watt With Meanwell LED Driver supplier Die casting Aluminium CE IP66 LED Street Light Housing 120 Watt With Meanwell LED Driver supplier Die casting Aluminium CE IP66 LED Street Light Housing 120 Watt With Meanwell LED Driver supplier

Large Image :  Die casting Aluminium CE IP66 LED Street Light Housing 120 Watt With Meanwell LED Driver

Product Details:

Place of Origin: China
Brand Name: Die-casting Man
Certification: CE, RoHs
Model Number: ZHSL-04-120

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: 1pc/bag/foam/carton, pallet optional
Delivery Time: 7-10 days based on order QTY
Payment Terms: T/T, 30% T/T as deposit, 70% T/T balance before delivery(EXW) or against shipping documents(FOB Ningbo), L/C
Supply Ability: 30000pcs/month
Contact Now
Detailed Product Description
Manufacturer: Ninghai Zhouhua Die-casting Co., Ltd Material: ADC-3 Die-casting Aluminium
Life Working Span: >70000hrs Beam Angle: 150*70 Degree, Other Upon Request
Input Voltage: AC 85-265V LED Light Source: COB
Driver: MW HLG / Inventronics Lamp Pipe Pole: Φ 60mm

5 Years Warranty Die-casting Aluminium CE IP66 LED Street Light Housing 120 Watt With Meanwell LED Driver



Item NO.: ZHSL-04-120



Product Quick Details:

Item NO. ZHSL-04-120
Power 80w / 100w / 120w
LED chip Bridgelux / Cree / Nichia
LED Quantity 2pcs
LED driver MeanWell HLG/ Inventronics
Input Voltage AC 90-305V
Frequency 50/60Hz
Power Factor >0.9
Total flux

80W: >9600lm

100W: >12000lm

120W: >14400lm

Working temperature -40℃-50℃
Working Humidity 20%-90% RH
Optic angle 150°* 70°, other optic angle optional
Color Rendering Index Ra>70, Ra>80 upon request
Color Temperature WW/PW/CW
Life Span ≥70000h
Protection Grade IP66/IK09
Installation Pipe Diameter Φ60mm
Installation Height 8-12m
Product Dimension 880*291*131mm
Net Weight 6.7KG
Gross Weight 8.0KG
Packing Size 860*330*160mm



Production Description:

* Better ZHSL-04 series LED Street Lights adopt LED Chip with COB from 50w to 180w encapsulation. * American CREE high power LED luminous source, with LM-80 test report, providing excellent lumen  output and high CRI, is compatible with Bridgelux, Sharp, Nichia COB LED source as well. It makes  the LED efficiency more than 130lm/w and Life time more than 50,000 hours.

* Bionic structure design, low wind resistance, excellent self-cleaning performance.

* High quality European standard Aluminum  alloy material ADC-3 die-casted.

* Double fins, efficient heatsink.

* Full Range EVERLITE SL08 series LED street lights are utilizing MEAN WELL high-end driver,  great  luminaire stability, long life span and optimal performance status.

Anti-glare Glass Lens, Bat Wing Pattern beam angle,120° 130° 140° 150°available

Colorful housing: White / Black / Gray / Blue, other color upon request

Dimming: Dali / 1-10V / PWM / AstroDIM for autonomous dimming with five independent levels

                    Smart control management system



* Options: Photocell / Surge protection device (up to 20KV) / 0.5m External cable(Other length                       upon request) / Smart control device / Motion detection



Standards & Certifications:

  CE, ROHS, ENEC pending, GS pending, IEC pending, LM79 pending, TM21 pending















Die casting Aluminium CE IP66 LED Street Light Housing 120 Watt With Meanwell LED Driver







Application:

  Car Park & Intersection

  Caravan & Holiday Parks

  Council & Government

  Jetties & Coastal

  Mining & Industrial

  Pathway. Bike Trail & Minor Road

  Public Spaces & Parks

  Rural & Off Grid

  Security & Safety

  Smart Lighting



Why us?

1) We are not only a die casting factory, but also a factory consist of a completed lighting design team, tooling and mold development workshop, auto-painting finishing lines, assembly lines, and completed lighting products testing.

2) All of the material and finished products will be tested under the ISO9001 quality control system.

3) We have many advanced equipments, such as semi-automatic die cast machines, CNC treatment, and full sets of completed lights IP testing, lumen test ,aging test, and photometric testing equipments. All those facilities make sure the quality is approved by CE, RoHS, TUV certificate.

4) Our team develops new items every year according to different market’s style. The products rang is including LED street light, LED urban light, LED High bay light and LED tunnel light. Our new patent design of led street lights is very popular in the market.

5) In order to meet more and more requirements of customers, we offer ODM and OEM good service. Welcome to contact the sales and visit Zhouhua factory to discuss face to face.
