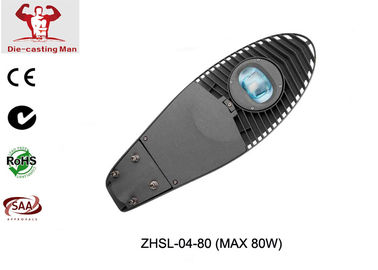

Heat Dissipation Performance LED COB Street Light Fixture IP66 IK09 With Patent Lens

China Heat Dissipation Performance LED COB Street Light Fixture IP66 IK09 With Patent Lens supplier
Heat Dissipation Performance LED COB Street Light Fixture IP66 IK09 With Patent Lens supplier Heat Dissipation Performance LED COB Street Light Fixture IP66 IK09 With Patent Lens supplier Heat Dissipation Performance LED COB Street Light Fixture IP66 IK09 With Patent Lens supplier Heat Dissipation Performance LED COB Street Light Fixture IP66 IK09 With Patent Lens supplier

Large Image :  Heat Dissipation Performance LED COB Street Light Fixture IP66 IK09 With Patent Lens

Product Details:

Place of Origin: China
Brand Name: Die-casting Man
Certification: CE, RoHs
Model Number: ZHSL-04-80

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: 1pc/bag/foam/carton, pallet optional
Delivery Time: 7-10 days based on order QTY
Payment Terms: T/T, 30% T/T as deposit, 70% T/T balance before delivery(EXW) or against shipping documents(FOB Ningbo), L/C
Supply Ability: 30000pcs/month
Contact Now
Detailed Product Description
Manufacturer: Ningbo Die-casting Man Technology Co., Ltd Material: ADC-3 Die-casting Aluminium
Screws:: 304 Stainless Screws Color: Grey/ Black/ White
Warranty: 5 Years Beam Angle: 150*70 Degree

Excellent Heat Dissipation Performance LED COB Street Light Fixtures Aluminium Die Cast IP66 IK09 with Patent Lens



Item NO.: ZHSL-04-80



Product Description

  • Energy-saving effect is very obvious.
  • Super power integrated chips, high luminous efficiency >130lm/w.
  • Good monochromaticity, diffusion degree good, the light is downy.
  • LED light source, no radiation, no harmful metallic mercury, green environmental protection.
  • LED street light installation is simple, convenient adjustmen.
  • The lamp body adopts imported raw materials, elaborate, good impact resistance, surface oxidation handle, strong and durable.

Technical Datas:

Item NO. ZHSL-04-80
Power 60w/70w/80w
LED chip Bridgelux /CREE /Nichia
LED Quantity 1pc
LED driver

MeanWell / Inventronics optional (other brand of driver upon request)

Class I or Class II

Input Voltage AC 90-305V
Frequency 50/60Hz
Power Factor >0.9
Total flux

60w: >7800lm

70w:  >9100lm

80w: 10400lm

Dimming:

Dali

1-10V

PWM

AstroDIM for autonomous dimming with five independent levels

Smart control management system

Options:

Photocell

Surge protection device (up to 20KV)

0.5m External cable(Other length upon request)

Smart control device

Motion detection

Standards & Certifications: CE, ROHS, ENEC, GS, IEC, LM79, TM21
Working temperature -40℃-50℃
Working Humidity 20%-90% RH
Optic angle 150°* 70°, other optic angle optional
Color Rendering Index Ra>70
Color Temperature 4000k (3000K/ 5000K/ 5700K upon request)
Life Span ≥70000h
Protection Grade IP66/IK09
Installation Pipe Diameter Φ60mm
Installation Height 6-8m
Product Dimension 650*237*121mm
Net Weight 4.3KG
Gross Weight 5.4KG
Packing Size 707*290*160mm



Features:

1.LED Driver: External Meanwell driver
2.Warm and cold color temperature are available
3.Quick and easy installation to minimize retrofit costs.
4.Patented heat dissipation technology for radiator;
5.Aluminum ADC-3 for resistance to corrosion, seawater, oil and lubricant etc;
6.Acrylic sealing reflector around LED; anodized oxide treated aluminum reflector & acrylic reflector available;
7.Closed corrosion-proof silicone ring for dustproof and waterproof
8.Beam angle: 150x70 degree. Dustproof cover, or Crystal PC reflector available
9.Lamp surface treated with anodization, corrosion-resistant, shake-resistant and artistic appearance
10.Terrific heat dissipation technology: LED temperature will be rapid transfered to fin-style heatsink through heatpipe
11.Energy saving: Replace 240-300w traditional lamps, saving more than 80%
12.Eco-friendly: No lead, mercury, UV interference
13.Long lifespan: more than 50000 hours, If LED works 11-12 hours per day, it can work over 10 years.
14.Warranty: 5 years



Product details:

Heat Dissipation Performance LED COB Street Light Fixture IP66 IK09 With Patent Lens

Heat Dissipation Performance LED COB Street Light Fixture IP66 IK09 With Patent Lens

Heat Dissipation Performance LED COB Street Light Fixture IP66 IK09 With Patent Lens







Lense & light distribution options:

Heat Dissipation Performance LED COB Street Light Fixture IP66 IK09 With Patent Lens



Application:

  Car Park & Intersection

  Caravan & Holiday Parks

  Council & Government

  Jetties & Coastal

  Mining & Industrial

  Pathway. Bike Trail & Minor Road

  Public Spaces & Parks

  Rural & Off Grid

  Security & Safety

  Smart Lighting

Heat Dissipation Performance LED COB Street Light Fixture IP66 IK09 With Patent Lens



Why us?

1) We are not only a die casting factory, but also a factory consist of a completed lighting design team, tooling and mold development workshop, auto-painting finishing lines, assembly lines, and completed lighting products testing.



2) All of the material and finished products will be tested under the ISO9001 quality control system.



3) We have many advanced equipments, such as semi-automatic die cast machines, CNC treatment, and full sets of completed lights IP testing, lumen test ,aging test, and photometric testing equipments. All those facilities make sure the quality is approved by CE, RoHS, TUV certificate.



4) Our team develops new items every year according to different market’s style. The products rang is including LED street light, LED urban light, LED High bay light and LED tunnel light. Our new patent design of led street lights is very popular in the market.



5) In order to meet more and more requirements of customers, we offer ODM and OEM good service. Welcome to contact the sales and visit Zhouhua factory to discuss face to face.
