Dimmable High Lumen 130lm/W LED COB SMD Aluminum Light Housing

China Dimmable High Lumen 130lm/W LED COB SMD Aluminum Light Housing supplier
Dimmable High Lumen 130lm/W LED COB SMD Aluminum Light Housing supplier Dimmable High Lumen 130lm/W LED COB SMD Aluminum Light Housing supplier Dimmable High Lumen 130lm/W LED COB SMD Aluminum Light Housing supplier Dimmable High Lumen 130lm/W LED COB SMD Aluminum Light Housing supplier

Large Image :  Dimmable High Lumen 130lm/W LED COB SMD Aluminum Light Housing

Product Details:

Place of Origin: China
Brand Name: Die-casting Man
Certification: CE, RoHs
Model Number: ZHSL-15-200

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: 1pc/bag/foam/carton, pallet optional
Delivery Time: 7-10 days based on order QTY
Payment Terms: T/T, 30% T/T as deposit, 70% T/T balance before delivery(EXW) or against shipping documents(FOB Ningbo), L/C
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Manufacturer: Ninghai Zhouhua Die-casting Co., Ltd Material: ADC-3 Die-casting Aluminium
Cover: 5MM Toughened Glass Color: Grey/ Black/ White
Warranty: 5 Years Finish: UV Resisted Powder Coating
Working Temperature: -35- 50℃ Customized Logo: Available

Dimmable High Lumen 130lm/w LED COB & SMD Street Light Housing 100w - 200w Aluminium Die-casiting Body IP66



Item NO.: ZHSL-15-100, ZHSL-15-200



Production Description:

Die-casting Man new-designed ZHSL-15 Series is a based on its really know-how team with over 5 years experience of R&D, manufacturing and marking of LED street lights. We are making great changes from aspects like heat dissapation, optics system, LED components and LED power supply.

- ZHSL-15 series luminaire is the ideal solution that fufils requiremnents of functional street lighting and residential areas, which working with outstanding heat dissipation and compacting system. Equipped with high-quality electrical components, long lifespan is assured. Efficient system also reduce energy consumption and creat a more attractive urban living environment and visual comforts for public and residential areas.

- With patented housing design and range of optics, ZHSL-15 series luminaires is also a perfect choice for project oriented usage.



Technical Datas:

Item NO. ZHSL-15-100 ZHSL-15-200
Power 100W 200W
LED chip SMD LUXEON 3030 2D /                   COB Cree/ Bridgelux/ Nichia SMD LUXEON 3030 2D / COB Cree/ Bridgelux/ Nichia
LED driver MeanWell / Inventronics MeanWell / Inventronics
Input Voltage AC 90-305V AC 90-305V
Frequency 50/60Hz 50/60Hz
Power Factor >0.9 >0.9
Total flux >13000lm >26000lm
Working temperature -40℃-50℃ -40℃-50℃
Working Humidity 20%-90% RH 20%-90% RH
Optic angle 145°* 85°  , Type I, II, III, IV 145°* 85° , Type I, II, III, IV
Color Rendering Index Ra>70 Ra>70
Color Temperature 2700-6500K 2700-6500K
Life Span ≥70000h ≥70000h
Protection Grade IP66/IK09 IP66 / IK09
Installation Pipe Diameter Φ50mm/Φ60mm Φ50mm/Φ60mm
Installation Height 10-12m 12-15m



Features:

- European standard high-pressure aluminium housing material ADC-3

-Patented Ribbon-Free housing technology

- Excellent thermal management

- Outstanding self-cleaning capability

- Patented optics for increased application efficiency

- Post-top or side-entry mounted +25° or -15° title

- Toughed glass with 5mm thickness, IK09 Impact Resistance



 LED Engine Module

  LED life time of 100,000 hours at 25℃ ambient temperature

  Lumiaire efficiency: 110-130lm/w

  CCT: 4000k (3000K/ 5000K/ 5700K upon request)

  CRI: >70; >80 (upon request)

  Operating temperature range: -30 to 45 ℃





Electrical

  MeanWell / Inventronics optional (other brand of driver upon request)

  Class I or  Class II

  Input Voltage: 90-305VAC/50-60Hz, 170-305VAC/ 50-60Hz

  10KV/20KV SPD

   Power automatically switch off when opening



Dimming:

  Dali

  1-10V

  PWM

  AstroDIM for autonomous dimming with five independent levels

  Smart control management system



Options:

  Photocell

  Surge protection device (up to 20KV)

  0.5m External cable(Other length upon request)

  Smart control device

  Motion detection



Standards & Certifications:

  CE, ROHS, ENEC pending, GS pending, IEC pending, LM79 pending, TM21 pending





Product Details:

Dimmable High Lumen 130lm/W LED COB SMD Aluminum Light Housing

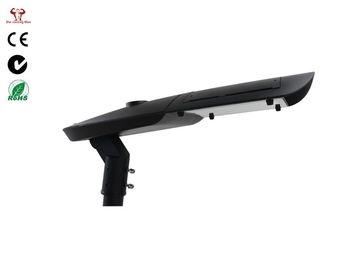

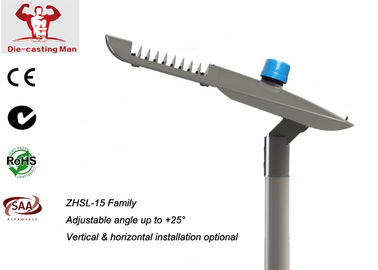

Adjustable Angle with wide range from -15° to 2

Dimmable High Lumen 130lm/W LED COB SMD Aluminum Light Housing

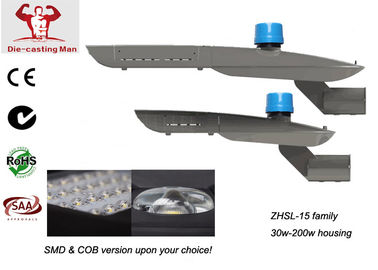

LED & Lense version:

SMD or COB upon your choice

Patented lense, wide range light distribution curve and high light transmmitance

Dimmable High Lumen 130lm/W LED COB SMD Aluminum Light Housing

Dimmable High Lumen 130lm/W LED COB SMD Aluminum Light Housing





Type version: Smooth or without cover (better heat dissipation)

Dimmable High Lumen 130lm/W LED COB SMD Aluminum Light Housing



Installation:

Dimmable High Lumen 130lm/W LED COB SMD Aluminum Light Housing



Application:

  Highway roads

  Streets

  Parking lots

  Residential areas



Why us?

1) We are not only a die casting factory, but also a factory consist of a completed lighting design team, tooling and mold development workshop, auto-painting finishing lines, assembly lines, and completed lighting products testing.

2) All of the material and finished products will be tested under the ISO9001 quality control system.

3) We have many advanced equipments, such as semi-automatic die cast machines, CNC treatment, and full sets of completed lights IP testing, lumen test ,aging test, and photometric testing equipments. All those facilities make sure the quality is approved by CE, RoHS, TUV certificate.

4) Our team develops new items every year according to different market’s style. The products rang is including LED street light, LED urban light, LED High bay light and LED tunnel light. Our new patent design of led street lights is very popular in the market.

5) In order to meet more and more requirements of customers, we offer ODM and OEM good service. Welcome to contact the sales and visit Zhouhua factory to discuss face to face.
