Aluminum Professional Led Street Light Housing Ac85 - 265v Long Life Time

China Aluminum Professional Led Street Light Housing Ac85 - 265v Long Life Time supplier
Aluminum Professional Led Street Light Housing Ac85 - 265v Long Life Time supplier Aluminum Professional Led Street Light Housing Ac85 - 265v Long Life Time supplier Aluminum Professional Led Street Light Housing Ac85 - 265v Long Life Time supplier Aluminum Professional Led Street Light Housing Ac85 - 265v Long Life Time supplier Aluminum Professional Led Street Light Housing Ac85 - 265v Long Life Time supplier

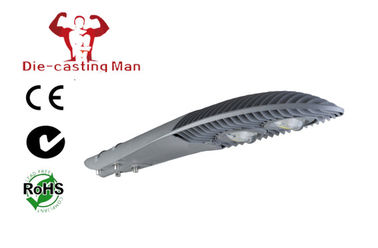

Large Image :  Aluminum Professional Led Street Light Housing Ac85 - 265v Long Life Time

Product Details:

Place of Origin: CHINA
Brand Name: Die casting man
Certification: UL;CE;ROHS
Model Number: ZHSL-04-120

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: foam filing/pc
Delivery Time: 7-30 days base on order quantity
Supply Ability: 10000PCS/Month.
Contact Now
Detailed Product Description
Material: ADC12 Aluminum Wattage: 120W
IP: 65 CRI: >70
LED Color: WW/NW/CW Input Voltage: AC85 - 265V
Frequency Range: 50 - 60Hz Working Ambient Temperature: -30℃ - 50℃
Working Ambient Humidity: 10% - 90%



Aluminum Professional Led Street Lighting AC85 - 265v 120 Wattage





Part Number:

ZHSL-04-120

Production Lead Time:

7-30 Days

Shipping:

EXW / FOB NINGBO

Quantity:

1pcs



Finish Color: Light Gray (Standard) , White, Black.



Specifications



Model Number

ZHSL-04-120

Electrical Specifications

LED QTY

60W x2Pcs

TotaLPower consumption

120W

Operation Voltage

85-265VAC or 12VDC or 24VDC

Operating Humidity

10%~90%

Working Temperature

-30 ~ 50°C

Power Fact(PF)

>0.95

Driver Efficiency

> 0.9

Photometric Specifications

LED Luminous Flux

10000 lm - Initial



9200 lm - Maintain

Led Luminous Efficiency

>100LM/W

CRI

Ra ≥ 70

LED Color

3000k-6500k

Mechanical Specifications

IP Rating

IP65

Warranty

3Years

Heat Radiator

die-casting body as heat sink

Lens

Patented anti-glare optic lense

Fixture Dimension

800x291x132MM

Fixture Weight

6.7kgs(14.8lbs)



Packing Information

Packing Type

1unit /ctn

Packing Dimension

86 x33 x16 cm (33.9” x13” x6.3”)

Packing Weight

8.0kgs(17.6lbs)





LED Engine Module

·                     LED life time of 30,000+ hours

·                     High power integrated packaging LED chips, 120° beam spread available

·                     Minimum CRI of 70, custom CRI available

·                     Operating temp: -30º C to +60º C

·                     No toxic chemicals / ROHS compliant

·                     Low Tj for long life, low lumen depreciation

·                     CE certified, meets ROHS standards

·                     Eligible for Rebates, Design Lights Consortium® Qualified*

·                     50-80% energy savings

·                     Manufactured in the China

·                     Standard distribution is Type V, others distributions available

Electrical

·                     Standard AC input of 85-265v VAC, up to 480v available

·                     EMI filter: 47CFR, part 2, part 15

·                     Power factor: >0.9

·                     Total harmonic distortion: <20%

·                     Surge protection: IEC/EN 61000-4-5 EMC test standard

·                     Licensed electrician required for installation

Housing

·                     Rugged, fully sealed, die-cast aluminum housing

·                     UV-resistant, multi-layer, architectural color, powder coat finish

·                     High impact, heat resistant, tempered lens

Energy Control Options

·                     Motion detection available

·                     Photo sensors available



Aluminum Professional Led Street Light Housing Ac85 - 265v Long Life Time

Aluminum Professional Led Street Light Housing Ac85 - 265v Long Life Time

Aluminum Professional Led Street Light Housing Ac85 - 265v Long Life Time
