| Item: | ZHSL-14-40 | Material: | Die-Casing Aluminium |
|---|---|---|---|
| Wattage: | 40W | LED Lifetime: | 5000h |
| Protection Grade: | IP66 | Pole Size: | 60mm |
| Colour: | Black And Grey | Product Size: | 620*287*118mm |
| High Light: | outdoor light housing,street light housing |
||

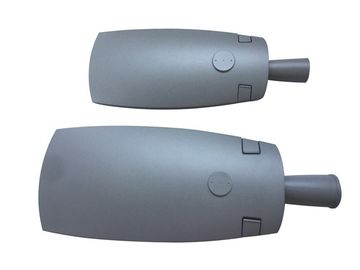

40 W Outdoor Street Light Fixtures / Led Pole Light Fixtures 3000-6500K
ZHSL-14 Family Product Specification
| Product Code | ZHSL-15-40 | ZHSL-15-80 | ZHSL-15-120 |
| Input Wattage | 40W | 80W | 150W |
| Color Temperature | 3000-6500K | 3000-6500K | 3000-6500K |
| Luminous Flux | 4400-5000lm | 9200-10400lm | 17250-19500lm |
| Input Voltage | AC90-305V | AC90-305V | AC90-305V |
| Frequency Range | 50/60Hz | 50/60Hz | 50/60Hz |
| Power Factor | PF≥0.95 | PF≥0.95 | PF≥0.95 |
| Color rendering index | Ra≥70 | Ra≥70 | Ra≥70 |
| Temperature of working condition | -40-50℃ | -40-50℃ | -40-50℃ |
| Humidity of working condition | 20%-90%RH | 20%-90%RH | 20%-90%RH |
| LED Lifetime | 50000h | 50000h | 50000h |
| Protection Grade | IP66 | IP66 | IP66 |
| Installation Pipe Diameter | Φ60mm | Φ60mm | Φ60mm |
| Installation Height | 4-7m | 6-10m | 8-12m |
| Net Weight | 4.6kgs | 6.0kgs | 9.8kgs |
| Gross Weight | 5.0kgs | 6.5kgs | 10.6kgs |
| Packing Size(mm) | 660*315*185 | 770*315*185 | 800*290*400 |
| Product Size(mm) | 620*287*118 | 738*289*118 | 922*362*140 |
Photometric Data
Line Drawing
Product Description
*This series is a high-performance street lighting available in three size
*The luminaire is manufactured from high pressure die-casting aluminum
*It shall have a led efficiency up to 120lm/w and will be capable of producing up to 18000luminair lumens at 4000K finished in grey or black as standard.
