Home ProductsHigh Power LED Street Light

100W SMD Outdoor High power led street light for roadway

China NingBo Die-Casting Man Technology Co.,ltd. certification
China NingBo Die-Casting Man Technology Co.,ltd. certification
Gold supplier, save me a lot of time to do the purchasing! And always giving professional suggestion, help me a lot in business! Thanks!

—— Ian Nicholas

Good quality products, low price and high quality services. Worthy trust and recommending business partner.

—— Michal Jussize

Hi Jenny, I have received the cargo. I want to say that we are very satisfied with your product and exelent service. I want also make a new order.

—— Ryan Retherford

I have been cooperating with Die casting man for 3 years. they supplied me thousands pieces of street light housing, I am glad to work with them because of the reliable quality and competitive price. A good experience to me.

—— Diana

I'm Online Chat Now

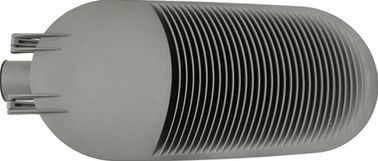

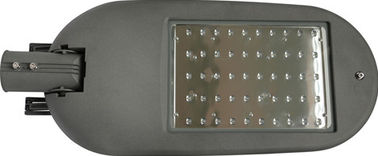

100W SMD Outdoor High power led street light for roadway

100W SMD Outdoor High power led street light for roadway
100W SMD Outdoor High power led street light for roadway
video play

Large Image :  100W SMD Outdoor High power led street light for roadway

Product Details:
Place of Origin: NINGBO,CHINA
Brand Name: DIE-CASTING MAN
Certification: CE,ROHS
Model Number: SL-09-100
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: 1pc/foam/ctn
Delivery Time: 30-40days
Supply Ability: 10000pcs/month
Detailed Product Description
Item: SL-09-100 Material: Aluminium
Wattage: 100W LED Lifetime: 50000h
Protection Grade: IP66 Pole Size: 50-60mm
Colour: Black And Grey Product Size: 736*292*112mm
High Light:

outdoor light housing

,

street light housing

ZHSL-09 Family Product Specification



Product Code ZHSL-09-30 ZHSL-09-50 ZHSL-09-100 ZHSL-09-150
Input Wattage 40W 60W 100W 180W
Color Temperature 3000-6500K 3000-6500K 3000-6500K 3000-6500K
Luminous Flux 4200-4800lm 6600-7500lm 11000-12500lm 19800-22500lm
Input Voltage AC90-305V AC90-305V AC90-305V AC90-305V
Frequency Range 50/60Hz 50/60Hz 50/60Hz 50/60Hz
Power Factor PF≥0.95 PF≥0.95 PF≥0.95 PF≥0.95
Color rendering index Ra≥70 Ra≥70 Ra≥70 Ra≥70
Temperature of working condition -40-50℃ -40-50℃ -40-50℃ -40-50℃
Humidity of working condition 20%-90%RH 20%-90%RH 20%-90%RH 20%-90%RH
LED Lifetime 50000h 50000h 50000h 50000h
Protection Grade IP66 IP66 IP66 IP66
Installation Pipe Diameter Φ50-60mm Φ50-60mm Φ50-60mm Φ60-70mm
Installation Height 3-6m 4-8m 8-12m 10-14m
Net Weight 2.7kgs 4.0kgs 6.5kgs 12.8kgs
Gross Weight 3.0kgs 4.5kgs 7.0kgs 13.2kgs
Packing Size(mm) 490*250*210 560*250*210 675*315*155 895*400*175
Product Size(mm) 455*180*95 530*230*105 736*292*112 846*367*134





Photometric Data



100W SMD Outdoor High power led street light for roadway 0

Line Drawing

100W SMD Outdoor High power led street light for roadway 1



Product Description



*This series is a high-performance street lighting available in three size



*The luminaire is manufactured from high pressure die-casting aluminum



*It shall have a led efficiency up to 120lm/w and will be capable of producing up to 18000luminair lumens at 4000K finished in grey or black as standard.





100W SMD Outdoor High power led street light for roadway 2
