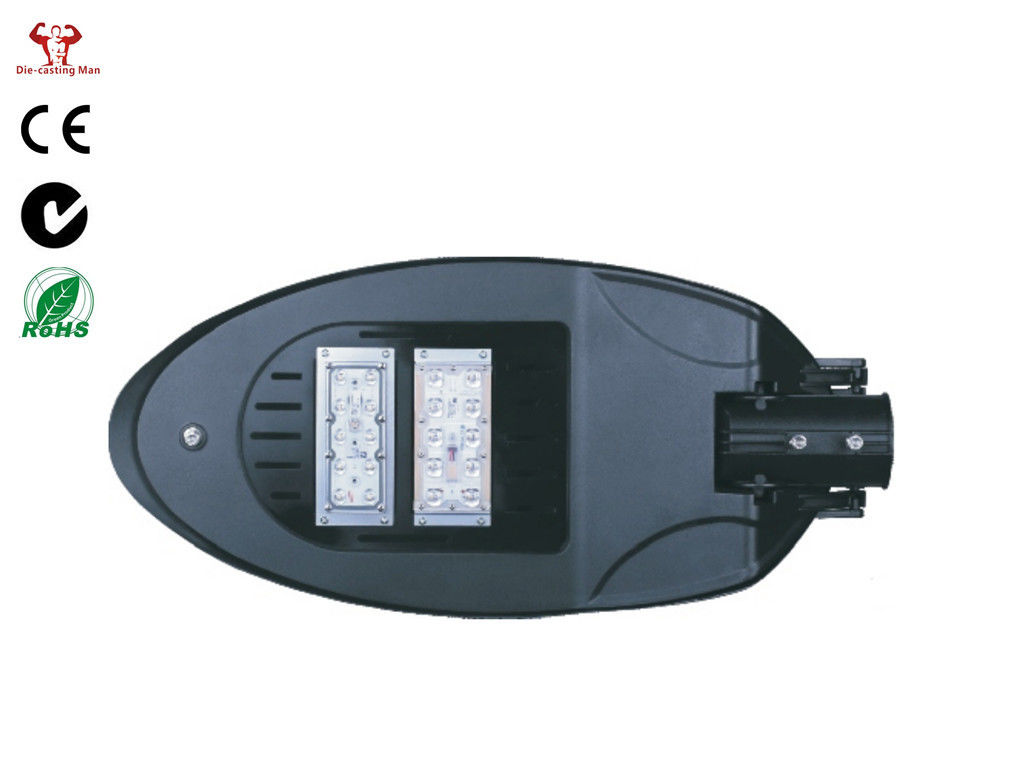

Water Resistance Led Street Light Enclosure 50 / 60Hz Frequency Module Empty Housing

Water Resistance Led Street Light Enclosure 50 / 60Hz Frequency Module Empty Housing
Water Resistance Led Street Light Enclosure 50 / 60Hz Frequency Module Empty Housing Water Resistance Led Street Light Enclosure 50 / 60Hz Frequency Module Empty Housing Water Resistance Led Street Light Enclosure 50 / 60Hz Frequency Module Empty Housing Water Resistance Led Street Light Enclosure 50 / 60Hz Frequency Module Empty Housing

Large Image :  Water Resistance Led Street Light Enclosure 50 / 60Hz Frequency Module Empty Housing

Product Details:
Place of Origin: NINGBO,CHINA
Brand Name: DIE-CASTING MAN
Certification: CE,ROHS
Model Number: ZHSL-07-100
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: 1pc/foam/ctn
Delivery Time: 30-40days
Supply Ability: 10000pcs/month
Detailed Product Description
Item: ZHSL-07-100 Material: Aluminium
Wattage: 100W LED Lifetime: 5000h
Pole Size: 60mm Colour: Black And Grey
Product Size: 864*374*177mm Packing Size: 905*415*190mm
High Light:

outdoor light housing

,

street light housing

Water Resistance Led Street Light Enclosure 50 / 60Hz Frequency Module Empty Housing



Description
*Installing Ways:Both Horizontal and Vertical available and adjustable angle -10° to 10°
*Material: Die casting Aluminum body,and PC lens
*Product Size:864*374*177mm
*Packing Size:905*415*190mm
*Color:double grey,sandy black,matt silver
*This series is a high-performance street lighting available in two sizes
*The luminair is manufactured from high pressure die-casting aluminum
*It shall have a led efficacy up to 120lm/w and will be capable of producing up to 11000 luminair lumens at 4000K finished in grey or black as standard.

Why choose us
1.Die-casting Man has more than 21 years experience in manufactuering the outdoor lighting.
2.We have our own die-casting machine,CNC machine,spray line,assembling line.In this way,will be easy to control the quality.
3.And we also have our own tooling shop and develop department,can help customer develop their own products.



ZHSL-07 Family Product Specification

Product Code ZHSL-07-50 ZHSL-07-100
Input Wattage 50W 100W
Color Temperature 3000-6500K 3000-6500K
Luminous Flux 9200-10400lm 17250-19500lm
Input Voltage AC90-305V AC90-305V
Frequency Range 50/60Hz 50/60Hz
Power Factor PF≥0.95 PF≥0.95
Color rendering index Ra≥70 Ra≥70
Temperature of working condition -40-50℃ -40-50℃
Humidity of working condition 20%-90%RH 20%-90%RH
LED Lifetime 50000h 50000h
Protection Grade IP66 IP66
Installation Pipe Diameter Φ60mm Φ60mm
Installation Height 4-8m 6-10m
Net Weight 4.5kgs 7.0kgs
Gross Weight 5.0kgs 7.5kgs
Packing Size(mm) 700*350*160 905*415*190
Product Size(mm) 646*304*140 864*374*177

Photometric Data

Water Resistance Led Street Light Enclosure 50 / 60Hz Frequency Module Empty Housing 0






























































Line Drawing
Water Resistance Led Street Light Enclosure 50 / 60Hz Frequency Module Empty Housing 1



































Product Photoes
Water Resistance Led Street Light Enclosure 50 / 60Hz Frequency Module Empty Housing 2





















































Water Resistance Led Street Light Enclosure 50 / 60Hz Frequency Module Empty Housing 3



Water Resistance Led Street Light Enclosure 50 / 60Hz Frequency Module Empty Housing 4

Equipment
ZHSL-19-50 50W ALUMINIUM OUTDOOR LED STREET LIGHT HOUSING



































































Exihibition

Water Resistance Led Street Light Enclosure 50 / 60Hz Frequency Module Empty Housing 6 Water Resistance Led Street Light Enclosure 50 / 60Hz Frequency Module Empty Housing 7
ZHSL-19-50 50W ALUMINIUM OUTDOOR LED STREET LIGHT HOUSING ZHSL-19-50 50W ALUMINIUM OUTDOOR LED STREET LIGHT HOUSING


Company profile
* A professional origin die casting manufacturer of led outdoor light.
* With more than 2 decades years experience.
* 10000+ square meter plant, 120 employees, located in China Ninghai Mould City
* Completed lighting production equipment & workshop: semi-automatic die casting machines, CNC drilling treatment, Sandblast machine, Powder spraying line, Lamps assembly line, Aging test line.
* Full facilities of outdoor lighting testing for IP/ IK/ Salt Spray / Thermal / IES files, etc.
* Offering led complete-set lamp and empty housing, including led street light / led solar street light /led high bay light / led high pole light / led garden light / led urban light.
* 6 elite designers & engineers, developing 8-12 new styles every year.
* ISO9001 quality control system.
* CE, RoHS, TUV certificates.
* 5-7years guarantee
* ODM and OEM service are both available to customers domestic and overseas.
