Product Details:
Payment & Shipping Terms:
|
| Manufacturer: | Die-casting Man | Wattage: | 50W |
|---|---|---|---|
| Certificate: | CE RoHs | Input Voltage: | AC85-265V |
| Place Of Origin:: | China | Color: | Gray / Black |
| High Light: | rohs aluminum led street light,street light led 50w,PF0.95 Aluminum Led Street Light |
||

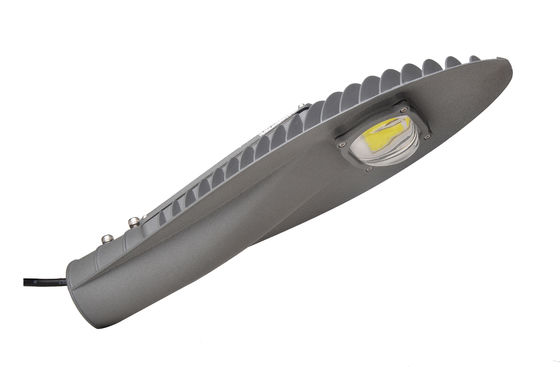

COB 50W LED Street Light Housing Lightweight For Advertisement Boards
YASL-10-50 Product Description:
| Code | YASL-10-50 | YASL-10-100 | YASL-10-110 | YASL-10-120 | YASL-10-150 | YASL-10-180 |
| Power | 50W Max | 100W Max | 110W Max | 120W Max | 150W Max | 180W Max |
| Color Temperature | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K |
| Efficiency | ＞120LM/W | ＞120LM/W | ＞120LM/W | ＞120LM/W | ＞120LM/W | ＞120LM/W |
| Voltage | AC90-305V | AC90-305V | AC90-305V | AC90-305V | AC90-305V | AC90-305V |
| Power Factor | PF≥0.95 | PF≥0.95 | PF≥0.95 | PF≥0.95 | PF≥0.95 | PF≥0.95 |
| CRI(Ra) | Ra≥70 | Ra≥70 | Ra≥70 | Ra≥70 | Ra≥70 | Ra≥70 |
| Ambient Temperature | -40-50℃ | -40-50℃ | -40-50℃ | -40-50℃ | -40-50℃ | -40-50℃ |
| Ambient Humidity | 20%-90%RH | 20%-90%RH | 20%-90%RH | 20%-90%RH | 20%-90%RH | 20%-90%RH |
| Lifetime(hrs) | 50000h | 50000h | 50000h | 50000h | 50000h | 50000h |
| IP Rate | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 |
| Installation Pipe Diameter | Φ60mm | Φ60mm | Φ60mm | Φ60mm | Φ60mm | Φ60mm |
| Installation Height | 6-8m | 10-12m | 10-12m | 12-14m | 12-14m | 12-14m |
| Net Weight | 3.6kg | 4.5kg | 4.5kg | 6.5kg | 7kg | 8.5kg |
| Gross Weight | 4.2kg | 5kg | 5kg | 7.0kg | 7.5kg | 9.0kg |
| Packing Size(mm) | 520*195*290/2pcs | 640*280*155 | 640*280*155 | 745*330*170 | 745*330*175 | 865*360*180 |
Product Dimension:
| L(mm) | W(mm) | H(mm) | |
| ZHSL-10-50 | 480 | 174 | 95 |
| ZHSL-10-100 | 600 | 235 | 100 |
| YASL-10-110 | 600 | 235 | 100 |
| ZHSL-10-120 | 700 | 271 | 112 |
| YASL-10-150 | 700 | 271 | 112 |
| YASL-10-180 | 825 | 309 | 113 |
