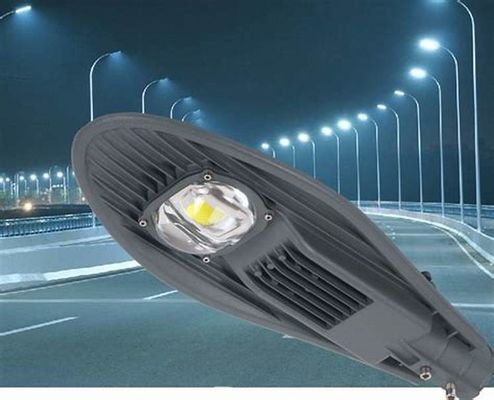

Fashion Design 80W COB LED Street Lighting Fixtures / City Street Lights Replacement

Fashion Design 80W COB LED Street Lighting Fixtures / City Street Lights Replacement
Fashion Design 80W COB LED Street Lighting Fixtures / City Street Lights Replacement Fashion Design 80W COB LED Street Lighting Fixtures / City Street Lights Replacement

Large Image :  Fashion Design 80W COB LED Street Lighting Fixtures / City Street Lights Replacement

Product Details:
Place of Origin: China
Brand Name: Die Casting Man/OEM
Certification: CE,ROHS, UL,SAA
Model Number: ZHSL-07-80(80W)
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: Carton box with foam
Delivery Time: 7-30 days base on order quantity
Payment Terms: By T/T 30% in advance and 70% after shipment EXW/FOB NINGBO, Western Union
Supply Ability: 10000PCS/Month.
Detailed Product Description
Manufacturer: Ninghai Zhouhua Die Casting Co.,Ltd Material: ADC12 Aluminum
Wattage: 80W Fixture Color: Grey
IP: 65 LED Color: WW/NW/CW
CRI: >70 Input Voltage: AC85 - 265V
Frequency Range: 50 - 60Hz Working Ambient Humidity: 10% - 90%
Working Ambient Temperature: -30℃ - 50℃ Lamp: COB LED
High Light:

outdoor light housing

,

led street light enclosure

Latest design Led Street Light Fixtures 80W COB Lamp grey color for Major roads



Quick Detail:



Name

80W Cob Led Steet light

Application

Use for Street

Color

Grey or custom color

Feature

New Design

Lamp Luminous Flux(lm)

7360

Certificate

TUV/UL /CE/ROHS



Description:



New Patent 80W LED streetlight made of High quality Die Casting Aluminum housing +Bridgelux LED +UL LED Driver



1. The latest version of high power COB Street Light Housing,User-friendly mechanical  designing,easy to assemble the led,potic lense and led power supply.



2. State-of-art designing with completed die-casting body as heat sink offer the maximum heat management system,which can hold maximum 4pc of 20W Bridgelus COB led.



3. Patented anti-glare optic lense enable this street light give an maximum 130 degree and 140 degree light spread,with an asymmetrical polar curve.



4. IP65 protection grade.



5.The Led power supply is designed to installed with two U brackets,so any brand of led power supply can be easily installed.





Applications:



Motorways,Major roads,minor roads,roundabouts,crossing and industrial areas.





Product Specifications


Code ZHSL-08-30 ZHSL-08-50 ZHSL-08-80 ZHSL-08-120 ZHSL-08-180
Power 30W 50W 80W 120W 180W
Color Temperature 3000-6500K 3000-6500K 3000-6500K 3000/4000/6500K 3000/4000/6500K
Efficiency 120LM/W 120LM/W 120LM/W 120LM/W 120LM/W
Voltage AC90-305V 50/60Hz AC90-305V 50/60Hz AC90-305V 50/60Hz AC90-305V 50/60Hz AC90-305V 50/60Hz
Power Factor PF≥0.95 PF≥0.95 PF≥0.95 PF≥0.95 PF≥0.95
CRI(Ra) Ra≥70 Ra≥70 Ra≥70 Ra≥70 Ra≥70
Ambient Temperature -20-50 -20-50 -20-50 -20-50 -20-50
Ambient Humidity 20%-90%RH 20%-90%RH 20%-90%RH 20%-90%RH 20%-90%RH
Lifetime(hrs) 50000hrs 50000hrs 50000hrs 50000hrs 50000hrs
IP Rate IP66 IP66 IP66 IP66 IP65
Installation Pipe Diameter Φ40mm Φ60mm Φ60mm Φ60mm Φ60mm
Installation Height 4-7m 4-7m 6-8m 10-12m 10-14m
Net Weight 1.8kg 1.8kg 2.8kg 4.4kg 6.2kg
Gross Weight 2.1kg 2.1kg 3.3kg 5.2kg 7.0kg
Packing Size(mm) 445*200*205/2PCS 545*230*120 665*300*145 765*300*145 920*355*150





Fashion Design 80W COB LED Street Lighting Fixtures / City Street Lights Replacement 0

Fashion Design 80W COB LED Street Lighting Fixtures / City Street Lights Replacement 1



Fashion Design 80W COB LED Street Lighting Fixtures / City Street Lights Replacement 2





Trading Conditions

1. Payment term: 30% deposit by T/T and 70% before delivery or against Copy of BL.

2. Delivery time: 25 days

3. Samples time: 7 days.

4. Shipping terms: FOB Ningbo.

5. Discounts will be determined by quantity.

6. Welcome distributors to cooperate together.



FAQ:

Q1.Can we make our own label on the sample lights?
Yes, we can use the label you offer,we can also do OEM & ODM.



Q2.Our project is on seaside, what if your lights be corrosion by sea water?
Metal has high corrosion resistance.Besides, we do best on light surface treatment,

electrostatic spraying and electrophoresis can effectively protect our lights from salt water corrision.



Q3. I really would like to try a sample first ,is that possible?
Yes,that's sure. Our MOQ only 1 pieces,easy know each other better via samples, we look on the long term and win-win cooperation.



Q4. We now have outdoor projects need to do the lighting design,can you help us?
Sure we can, we are the leader of outdoor high power LED light supplier, our design teams can provide you the best solution.

And if you have the tech to make design yourself , we can provide the IES files for you.



Q5.I have a street/high way project,what's your suggestion?

Please give me the below information:
A:the wide of the street.
B:the arrangement and the height of the light poles
C:the requirement of the illumination.
