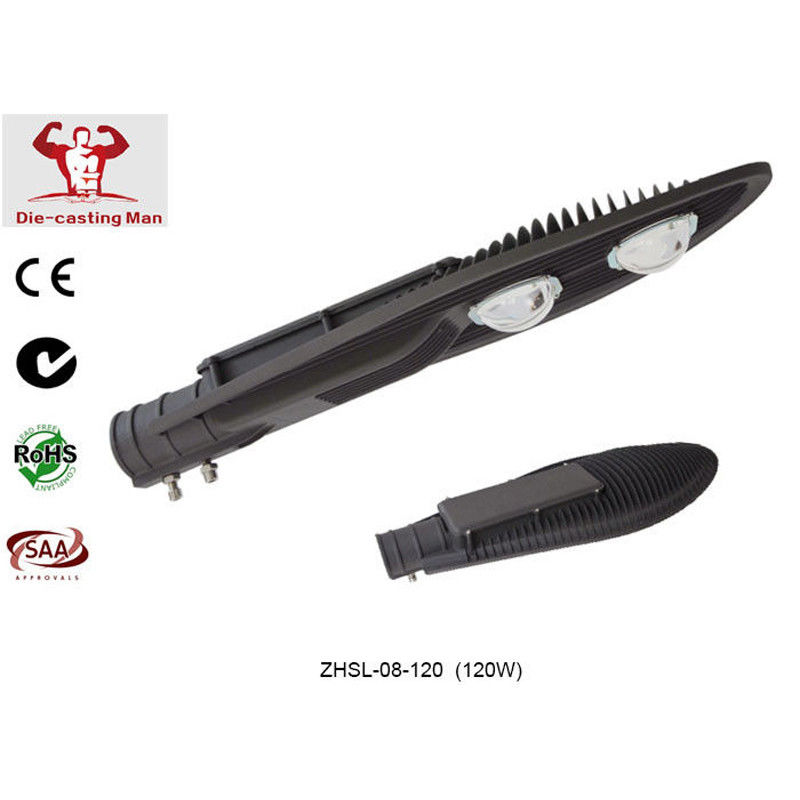

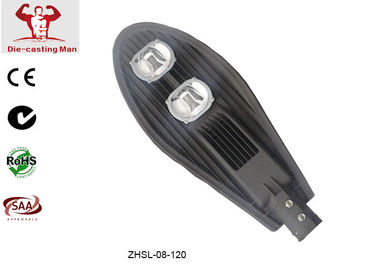

COB 120W LED Street Light Fixtures / Outdoor Waterproof Street Light Fittings IP65

China COB 120W LED Street Light Fixtures / Outdoor Waterproof Street Light Fittings IP65 supplier
COB 120W LED Street Light Fixtures / Outdoor Waterproof Street Light Fittings IP65 supplier COB 120W LED Street Light Fixtures / Outdoor Waterproof Street Light Fittings IP65 supplier

Large Image :  COB 120W LED Street Light Fixtures / Outdoor Waterproof Street Light Fittings IP65

Product Details:

Place of Origin: China
Brand Name: Die Casting Man/OEM
Certification: CE,ROHS, UL,SAA
Model Number: ZHSL-08-120(120W)

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: Carton box with foam
Delivery Time: 7-30 days base on order quantity
Payment Terms: By T/T 30% in advance and 70% after shipment EXW/FOB NINGBO, Western Union
Supply Ability: 10000PCS/Month.
Contact Now
Detailed Product Description
Manufacturer: Ninghai Zhouhua Die Casting Co.,Ltd Material: ADC12 Aluminum
Wattage: 80-120W Fixture Color: Black
IP: 65 LED Color: WW/NW/CW
CRI: >70 Input Voltage: AC85 - 265V
Frequency Range: 50 - 60Hz Working Ambient Humidity: 10% - 90%
Working Ambient Temperature: -30℃ - 50℃ Lamp: COB LED

Led Street Light Fixtures 120W COB Lamp black color for Major roads



Quick Detail:



Name

120W Cob Led Steet light

Application

Use for Street

Color

black

Feature

New Design

Lamp Luminous Flux(lm)

100LM/W

Certificate

TUV/UL /CE/ROHS



Description:



120W LED streetlight made of High quality Die Casting Aluminum housing +Bridgelux LED +UL LED Driver



1. The latest version of high power COB Street Light Housing,User-friendly mechanical  designing,easy to assemble the led,potic lense and led power supply.



2. State-of-art designing with completed die-casting body as heat sink offer the maximum heat management system,which can hold maximum 2pcs of 60W Bridgelus COB led.



3. Patented anti-glare optic lense enable this street light give an maximum 130 degree and 140 degree light spread,with an asymmetrical polar curve.



4. IP65 protection grade.



5.The Led power supply is designed to installed with two U brackets,so any brand of led power supply can be easily installed.





Applications:



Motorways,Major roads,minor roads,roundabouts,crossing and industrial areas.





Specifications



Model Number

ZHSL-08-120

Electrical Specifications

LED QTY

40W-60W x2PCS

TotaLPower consumption

MAX.120W

Operation Voltage

85-265VAC or 12VDC or 24VDC

Operating Humidity

10%~90%

Working Temperature

-30 ~ 50°C

Power Fact(PF)

>0.95

Driver Efficiency

> 0.9

Photometric Specifications

LED Luminous Flux

8000 lm - Initial



7360 lm - Maintain

Led Luminous Efficiency

>90LM/W

CRI

Ra ≥ 70

LED Color

3000k-6500k

Mechanical Specifications

IP Rating

IP65

Warranty

3Years

Heat Radiator

die-casting body as heat sink

Lens

Patented anti-glare optic lense

Fixture Dimension

703x280x120MM

Fixture Weight

4.4kgs(9.7lbs)



Packing Information

Packing Type

1unit /ctn

Packing Dimension

76 x30 x15.5 cm (30” x11.8” x6.1”)

Packing Weight

5.2kgs(11.5lbs)

Our service:



your inquiries will be replied in 24 hours in our working days.

  • 3years warranty under normal use.
  • Professional design provided.
  • Timely delivery guaranteed.
