Product Details:
Payment & Shipping Terms:
|
| Body: | Die Casting Aluminium + Glass | Efficiency: | >150lm/w |
|---|---|---|---|
| Glass: | Tempered 4mm | Packing: | With Strofoam Package |
| Impact Resistance: | IK09 | Color: | Grey / Black / White |
| High Light: | 4mm LED Street Light Housing,Led Street Light Fixtures Housing 60mm,Tempered Glass LED Street Light Enclosure |
||

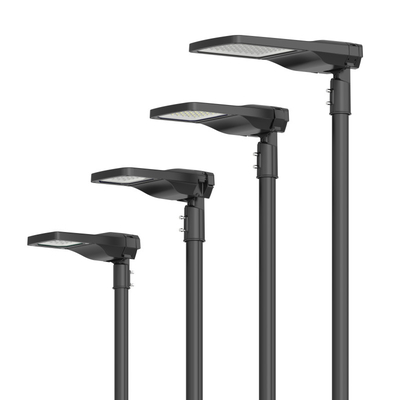

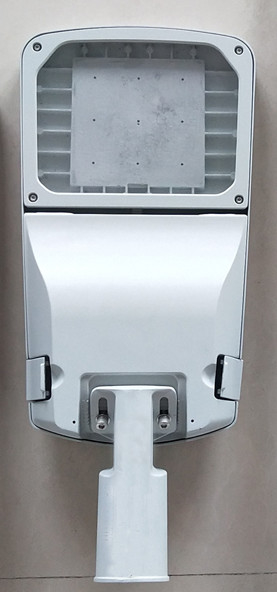

LED Street Light YASL-19M
Product Specification
| Product Code | YASL-19-80M | ||||||
| Input Wattage | 100W | ||||||
| Color Temperature | 2700～6500K | ||||||
| Luminous Flux | 13000-15000lm | ||||||
| Input Voltage | AC90～305V | ||||||
| Frequency Range | 50/60Hz | ||||||
| Power Factor | PF≥0.95 | ||||||
| color rendering index | Ra≥70 | ||||||
| Temperature of Working Condition | -40～50℃ | ||||||
| Humidity of Working Condition | 20%～90%RH | ||||||
| LED Lifetime | 50000h | ||||||
| Protectin Grade | IP66 | ||||||
| Protection level | IK08/09/10 | ||||||
| Installation Pipe Diameter | φ45/60mm | ||||||
| Installation Height | 6-10m | ||||||
| Net Weight | 5.0kgs | ||||||
| Gross Weight | 5.5kgs | ||||||
| Packing Size(m m) | 670*310*155 | ||||||
| Product Datasheet | ||||
| Item No. | YASL-19-30 | YASL-19-50 | YASL-19-80 | YASL-19-150 |
| Power | 30W | 50W | 80W | 150W |
| Lumen Efficiency | 140lm/w | 140lm/w | 140lm/w | 140lm/w |
| Lumen | 3800lm | 6500lm | 10400lm | 19500lm |
| Product Size (mm) | 459X186X119 | 577X233X103 | 627X271X103 | 768X301X104 |
| Electrical Data | ||||
| Working Voltage | AC100-265V 丨 50/60Hz | |||
| LED: | Lumileds / Epistar / SANAN | |||
| CCT | 3000K, 4000K, 5000K ,6000K | |||
| CRI | Ra>70 (standard)/ Ra>80 | |||
| Driver | local | |||
| THD | <15% | |||
| Power Factor(PF) | PF>0.9 | |||
| IP Rating | IP66 | |||
| IK Rating | 1K09 | |||
| Holder | 50mm/B60mm (standard) | |||
| Body Material | Hign pressure die-cast aluminum | |||
| Housing Calor | Dark Grey/Black/Light Grey (availabel on request) | |||
| Cover Material | UV-resistant Polycarbonate | |||
| Working Environment | -20℃ ~+50℃ , 10%~90%RH | |||
| Lifespan L70 at 25℃ | > 50,000hrs | |||
| Mounting Type | Side entry or Vertical pole mounted ±15° | |||
| Dimmable | 1-10V Dimming /Timer Dimming | |||
| Protecdion Class | Class I (standard) / Class Ⅱ | |||
| Standards | CE, RoHS, ENEC, CB, LM79. LM80, TM-21, IP66, IK09 | |||
| Available on request | NEMA socket (3/5/7pins), ZHAGA socket. Short cap, Photocell., Motion sensor, NTC. OLC, DALI Dimming | |||
| Reasonable tolerance | Watt: ±10%,CCT:±500K, Lumen efficiency: ±5% | |||
Photometric
| DH-T1 | DH-T3-M | DH-T4-M | DY-T3-M | GY-T2-M01 | GX-T2-M | GX-T4-L | HX-T2-S | ||||||||
| DH-T2-L | DH-T3-MA | DH-T5-M | GY-T1-M | GY-T3-M01 | GX-T3-M | HY-T2-M | HX-T2-M | ||||||||
| DH-T2-M | DH-T3-MB | DY-T2-M | GY-T2-M | GX-T2-S | GX-T4-M | HY-T3-M | HX-T3-M |
Product Size
| Product Code | YASL-19-50M | ||||||
| L(mm) | 577 | ||||||
| W(mm) | 233 | ||||||
| H(mm) | 103 | ||||||
MAJOR BENEFITS
Extremely long lifetime
Best system efficiency
Connectivity with lighting management and control systems
Optimized energy savings with optimum return on investment
Multiple types of optics provide visual comfort for all road users
Ideal solution for different road configurations
Advantages
1.Patent private mould, integrated die-casting AL.
2.High efficiency, 120lm/w-160lm/w available.
3.Professional glare-free- lens,type2/type3/type4/60°/90°available.
4.0-10V dimming/time control/light sensor/IOT control available.
5.Specilized aluminum sheet design, glue.free for glass fixation.
6.Ingradenter design: easy for harizontal installation.
7.Snap-on type driver housing, tool-free disassembly.
8.Bat wing light shape.
9.Various applications:street light, shoe box light. projector,etc.
