Product Details:
Payment & Shipping Terms:
|
| Input Wattage: | 80 /90 / 100W | High Efficiency: | >150lm/w |
|---|---|---|---|
| Voltage: | 220V | Package: | 1pcs/carton |
| Packing Details: | With Strofoam Package | Body Color: | Customized |
| High Light: | Residential LED Lights Housing 4000K,Aluminum Residential Street Lights,100W High Pressure LED Light Housing |
||

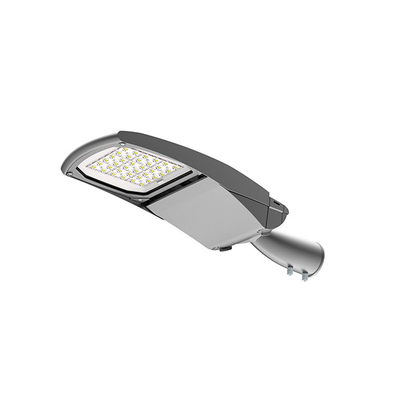

2700k 3000K 4000K different kelvin Residential Led Street Lights 5 Years Warranty
| Product Datasheet | ||||
| Item No. | YASL-25-80 | YASL-25-80 | YASL-25-80 | YASL-25-80 |
| Power | 70W | 80W | 90W | 100W |
| Lumen Efficiency | 140lm/w | 140lm/w | 140lm/w | 140lm/w |
| Lumen | 9800lm | 11200lm | 12600lm | 1400lm |
| Product Size (mm) | 645x257x147 | 645x257x147 | 645x257x147 | 645x257x147 |
| Electrical Data | ||||
| Working Voltage | AC100-265V 丨 50/60Hz | |||
| LED: | Lumileds / Epistar / SANAN | |||
| CCT | 3000K, 4000K, 5000K ,6000K | |||
| CRI | Ra>70 (standard)/ Ra>80 | |||
| Driver | local | |||
| THD | <15% | |||
| Power Factor(PF) | PF>0.9 | |||
| IP Rating | IP66 | |||
| IK Rating | 1K09 | |||
| Holder | 50mm/B60mm (standard) | |||
| Body Material | Hign pressure die-cast aluminum | |||
| Housing Calor | Dark Grey/Black/Light Grey (availabel on request) | |||
| Cover Material | UV-resistant Polycarbonate | |||
| Working Environment | -20℃ ~+50℃ , 10%~90%RH | |||
| Lifespan L70 at 25℃ | > 50,000hrs | |||
| Mounting Type | Side entry or Vertical pole mounted ±15° | |||
| Dimmable | 1-10V Dimming /Timer Dimming | |||
| Protecdion Class | Class I (standard) / Class Ⅱ | |||
| Standards | CE, RoHS, ENEC, CB, LM79. LM80, TM-21, IP66, IK09 | |||
| Available on request | NEMA socket (3/5/7pins), ZHAGA socket. Short cap, Photocell., Motion sensor, NTC. OLC, DALI Dimming | |||
| Reasonable tolerance | Watt: ±10%,CCT:±500K, Lumen efficiency: ±5% | |||
lnstalling Ways:
Both Horizontal and Vertical available and adjustable angle-15°to+15°
 |
|
| 90 degree installation | Front |
|
|
| Back | Side |
| Product Code | YASL-25-40M | YASL-25-100M | YASL-25-150M | YASL-25-240M | ||||||
| Input Wattage | 30W | 40W | 50W | 60W | 100W | 120W | 150W | 200W | 300W | |
| Installation Pipe Diameter | φ45/60mm | φ45/60mm | φ45/60mm | φ45/60/76mm | ||||||
| Luminous Flux | 3900-4500lm | 5200-6000 | 6500-7500lm | 7800-9000lm | 13000-15000lm | 15600-18000lm | 19500-22500lm | 26000-30000lm | 31200-36000lm | |
| Color Temperature | 2700～6500K | |||||||||
| Input Voltage | AC90～305V | |||||||||
| Frequency Range | 50/60Hz | |||||||||
| Power Factor | PF≥0.95 | |||||||||
| color rendering index | Ra≥70 | |||||||||
| Temperature of Working Condition | -40～50℃ | |||||||||
| Humidity of Working Condition | 20%～90%RH | |||||||||
| LED Lifetime | 50000h | |||||||||
| Protectin Grade | IP66 | |||||||||
| Protection level | IK08/09/10 | |||||||||
| Installation Height | 3-6m | 3-6m | 4-6m | 4-8m | 6-10m | 8-12m | 8-12m | 10-14m | 10-14m | |
| Net Weight | 2.9kgs | 2.9kgs | 2.9kgs | 3.8kgs | 3.8kgs | 5.7kgs | 5.7kgs | 7.2kgs | 7.2kgs | |
| Gross Weight | 3.4kgs | 3.4kgs | 3.4kgs | 4.0kgs | 4.0kgs | 6.0kgs | 6.0kgs | 7.5kgs | 7.5kgs | |
| Packing Size(m m) | 555*210*143 | 680*270*160 | 820*320*160 | 920*370*180 | ||||||

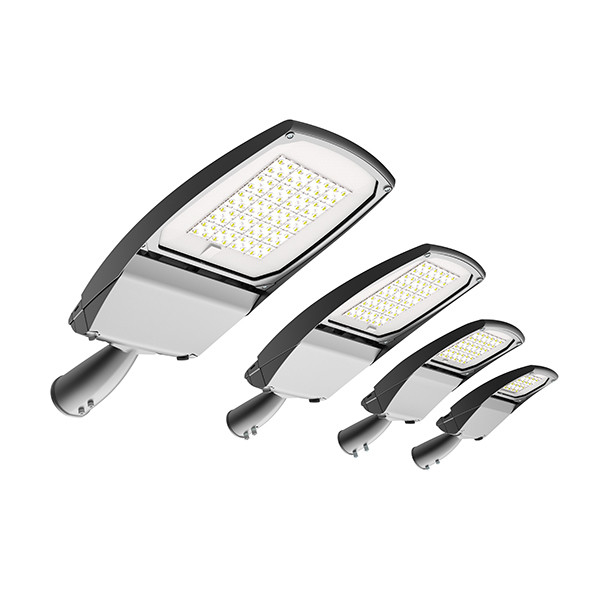

This Led light is a high-performance street lighting available in four sizes:40W/100M/150/200W.
The lunimaire is manufactured from high quality pressure die-casting aluminum.
lt shall have a led efficiency up to 130 lm/w and will be capable of producing.
It up to 26000 luminaire lumens at 4000K finished in Grey or black as standard and 5 years warranty.
Standards & Certification:ENEC,CB,CE,Rohs.
|
|
| DH-T1 | DH-T3-M | DH-T4-M | DY-T3-M | GY-T2-M01 | GX-T2-M | GX-T4-L | HX-T2-S |
| DH-T2-L | DH-T3-MA | DH-T5-M | GY-T1-M | GY-T3-M01 | GX-T3-M | HY-T2-M | HX-T2-M |
| DH-T2-M | DH-T3-MB | DY-T2-M | GY-T2-M | GX-T2-S | GX-T4-M | HY-T3-M | HX-T3-M |
| Product Code | YASL-25-40M | YASL-25-100M | YASL-25-150M | YASL-25-240M | ||||||
| L(mm) | 555 | 645 | 790 | 890 | ||||||
| W(mm) | 210 | 257 | 305 | 361 | ||||||
| H(mm) | 143 | 147 | 147 | 163 | ||||||
| S.No | Requirement | Requirement | Test Standard | Supplier Answers |
| Physical requirements | ||||
| 1 | Housing type | Heavy-duty rugged pressure die-cast aluminium allo | ISO 3522 | |
| 2 | Cover | Tempered Glass | ||
| 3 | Gasket | Silicon Rubber gasket | ||
| 4 | Housing wattage range | 30W ~240W | ||
| 5 | Socket Options | NEMA socket, Photocell, Smart controller, Shorting Cap | ||
| 6 | Stainless-steel components | Minimum 316L Grade 316L | ||
| 7 | IP Protection | IP66 | IEC 60529 | |
| 8 | IK Protection | IK08 | IEC 62262 | |
| 9 | Tool free opening | Tool-free access to gear compartment | ||
| 10 | Corrosion tests in artificial atmospheres — Salt spray tests | EN/ISO 9227 - Corrosion tests in artificial atmospheres — Salt spray tests for 1000 hours 1000 小时 | EN/ISO 9227 | |
| 11 | Vibration test | ANSI C136.31 - Roadway and Area Lighting Equipment - Luminaire Vibration | ANSI C136.31 | |
