Product Details:
Payment & Shipping Terms:
|
| Model: | SL-25-100M | Wattage: | 100W |
|---|---|---|---|
| Light Source: | LED | IK Grade: | IK08 |
| IP Grade: | IP66 | Warranty: | 5 Years |
| High Light: | IP66 Smart LED Street Light Housing,LED Street Light Die Casting Housing,Glass Frame Led Light Housing 100W |
||

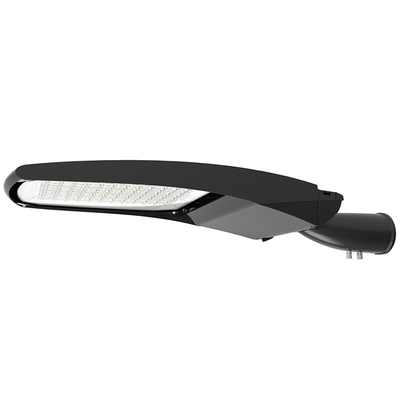

Die Casting Housing YASL-25-100M
1.Die Casting Housing Introduction
This Die Casting Housing was the latest invention and high quality with TUV CE ENEC CB IP66 and offer 5 years Warranty.
It was made up with Die Casting Aluminium and Tempered glass.
We devoted ourselves to the lighting industry many years, covering most of Europe, Middle East, Asia and Africa Market. We are expecting become your long-term partner in china.
LED Street Light YASL-25M

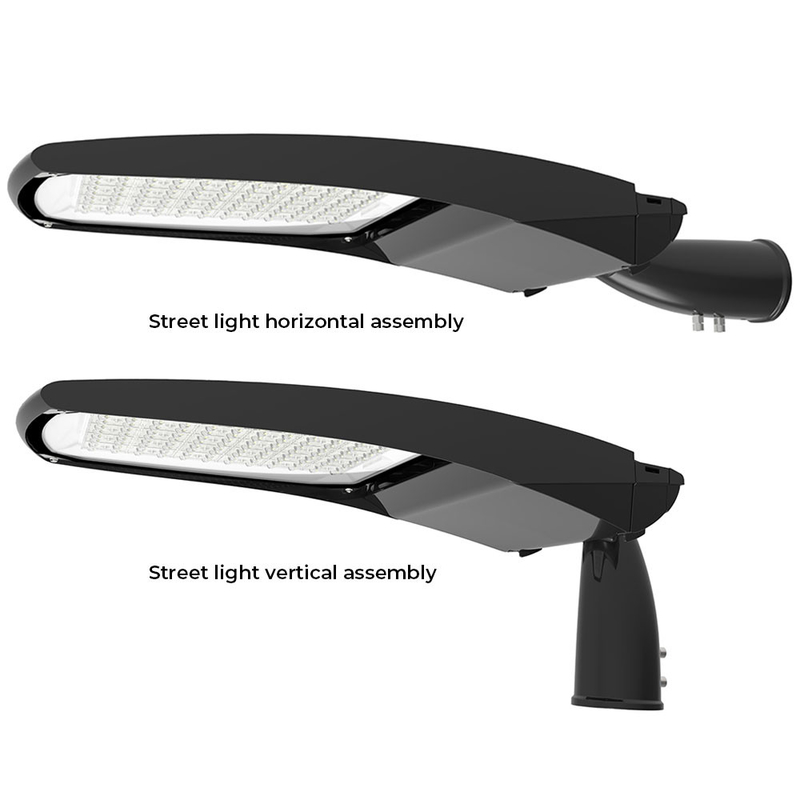

lnstalling Ways:
Both Horizontal and Vertical available and adjustable angle -15° to +15°
 |
|
| 90 degree installation | Front |
|
|
| Back | Side |
2.Die Casting Housing Specification
| Model | SL-25-40M | SL-25-100M | SL-25-150M | SL-25-240M | |||||
| Input Wattage (W) | 30/40/50/60 | 80/100/120 | 150/180/200 | 240/300 | |||||
| Installation Pipe Diameter | φ45/60mm | φ45/60mm | φ45/60mm | φ60/70mm | |||||
| Installation Height (m) | 3-8 | 6-10 | 8-12 | 10-14 | |||||
| Input Voltage | 90~305Vac | ||||||||
| Frequency Range | 50/60Hz | ||||||||
| Power Factor | ≥0.9 | ||||||||
| Light source | LED | ||||||||
| Driver | Inventronics | ||||||||
| Meanwell (optional) | |||||||||
| other brand of driver(upon request) | |||||||||
| Luminaire efficacy (lm/W) | 130-170 | ||||||||
| Color Temperature | 4000 | ||||||||
| Color rendering index | ≥70 | ||||||||
| Diming | Dali (optional) | ||||||||
| 1-10V (optional) | |||||||||
| PWM (optional) | |||||||||
| Smart control management system (upon request) | |||||||||
| The environment temperature | -40～45℃ | ||||||||
| Humidity of Working Condition | 20%～90%RH | ||||||||
| Protectin Grade | IP66 | ||||||||
| Protection level | IK08 | ||||||||
| Standards & Certifications | ENEC | ||||||||
| CB | |||||||||
| CE | |||||||||
| Rohs | |||||||||
| Options | Photocell | ||||||||
| Surge protection | |||||||||
| External cable (length upon request) | |||||||||
| Smart control device | |||||||||
| Materials | Housing: ADC12 die-cast aluminum | ||||||||
| Cover: Toughened Glass | |||||||||
| External Screws: 304 stainless screws | |||||||||
| Color | Grey/Black ( other upon request) | ||||||||
3.LED Street Light YASL-25M Product Description
This series is a high-performance street lighting available in three sizes.
The lunimaire is manufactured from high pressure die-casting aluminum.
lt shall have a led efficiency up to 130 lm/w and will be capable of producing.
Up to 26000 luminaire lumens at 4000K finished in Grey or black as standard.
IP66 CE ROHS
|
|
Photometric
| DH-T1 | DH-T3-M | DH-T4-M | DY-T3-M | GY-T2-M01 | GX-T2-M | GX-T4-L | HX-T2-S |
| DH-T2-L | DH-T3-MA | DH-T5-M | GY-T1-M | GY-T3-M01 | GX-T3-M | HY-T2-M | HX-T2-M |
| DH-T2-M | DH-T3-MB | DY-T2-M | GY-T2-M | GX-T2-S | GX-T4-M | HY-T3-M | HX-T3-M |
Product Size
| Product Code | YASL-25-100 | YASL-25-150 | YASL-25-240 |
| L(mm) | 645 | 790 | 890 |
| W(mm) | 257 | 305 | 361 |
| H(mm) | 147 | 147 | 163 |
Color Temperature:3000-6500K
Lumen: 4200LM (140LM/W)
Input Voltage: AC90-305V 50/60Hz
Power Factor: PF≥0.95
Color Rendering Index: Ra≥70
Temperature of Working Condition:-40-50°C
Protection Grade:IP66
4.Die Casting Housing Feature And Application
LED Street Lighitng are used in main roads, streets, schools, gardens, factories, courtyards and so on.
