Product Details:
Payment & Shipping Terms:
|
| Item: | SL-15-40 | Material: | Die-Casing Aluminium |
|---|---|---|---|
| LED Lifetime: | 50000h | Protection Grade: | IP66 |
| Pole Size: | 60mm | Product Size: | 563*196*193mm |
| IP: | 66 | IK: | 08 |
| High Light: | 40W Outdoor LED Street Light Shell,Tempered Glass LED Street Lamp Housing,IP66 Led Light Shell |
||

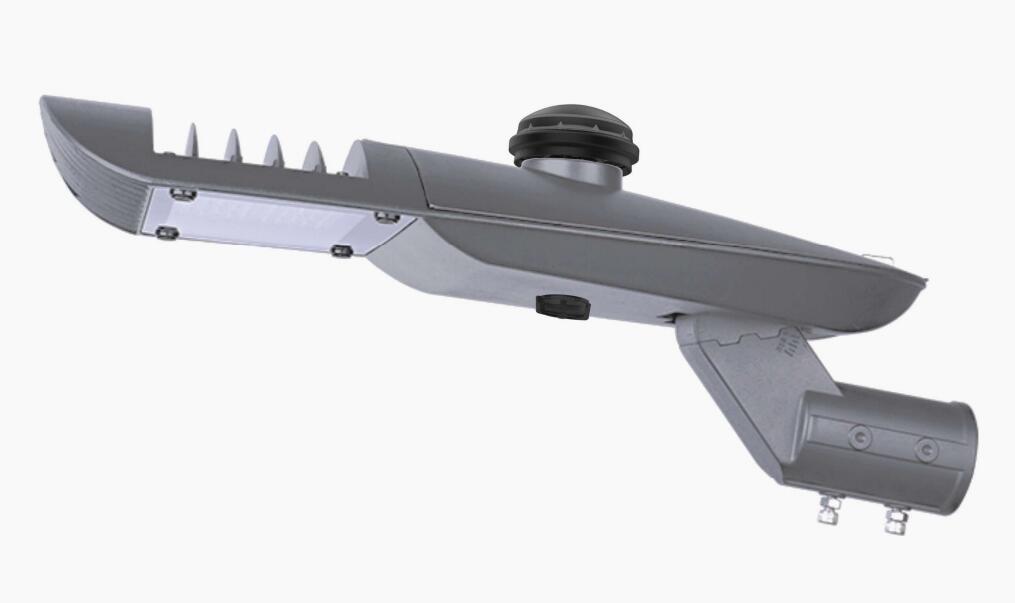

This Outdoor Led Lighting Pole Display was the latest invention and high quality with TUV CE ENEC CB IP66 and offer 5 years Warranty.
It was made up with Die Casting Aluminium and Tempered glass.
We devoted ourselves to the lighting industry many years, covering most of Europe, Middle East, Asia and Africa Market. We are expecting become your long-term partner in china.
Both Horizontal and Vertical available and adjustable angle-5°to+15°
 |
|
| 90 degree installation | Front |
|
|
| Back | Side |
| Product Code | YASL-15-40 | YASL-15-80 | YASL-15-150 |
| Input Wattage | 20W 30W 40W 50W 60W | 80W 100W 120W | 150W 180W 200W 240W |
| Color Temperature | 2700k 300k 4000k 5700k 6500K | ||
| Luminous Flux | 7800-8400lm | 13000-14000lm | 26000-28000lm |
| Input Voltage | AC90～305V | AC90～305V | AC90～305V |
| Frequency Range | 50/60Hz | 50/60Hz | 50/60Hz |
| Power Factor | PF≥0.95 | PF≥0.95 | PF≥0.95 |
| color rendering index | Ra≥70 | Ra≥70 | Ra≥70 |
| Temperature of Working Condition | -40～50℃ | -40～50℃ | -40～50℃ |
| Humidity of Working Condition | 20%～90%RH | 20%～90%RH | 20%～90%RH |
| LED Lifetime | 50000h | 50000h | 50000h |
| Protectin Grade | IP66 | IP66 | IP66 |
| Protection level | IK08 IK09 | ||
| Installation Pipe Diameter | φ45/60mm | φ45/60mm | φ45/60mm |
| Installation Height | 4-8m | 6-10m | 10-14m |
| Net Weight | 3.5kgs | 5.0kgs | 8.5kgs |
| Gross Weight | 4.0kgs | 5.5kgs | 9.5kgs |
| Packing Size(m m) | 600*240*150 | 710*330*130 | 875*370*130 |
This series is a high-performance street lighting available in three sizes.
The lunimaire is manufactured from high pressure die-casting aluminum.
lt shall have a led efficiency up to 130 lm/w and will be capable of producing.
Up to 26000 luminaire lumens at 4000K finished in Grey or black as standard.
|
2 |
| DH-T1 | DH-T3-M | DH-T4-M | DY-T3-M | GY-T2-M01 | GX-T2-M | GX-T4-L | HX-T2-S |
| DH-T2-L | DH-T3-MA | DH-T5-M | GY-T1-M | GY-T3-M01 | GX-T3-M | HY-T2-M | HX-T2-M |
| DH-T2-M | DH-T3-MB | DY-T2-M | GY-T2-M | GX-T2-S | GX-T4-M | HY-T3-M | HX-T3-M |
| Product Code | YASL-15-40 | YASL-15-80 | YASL-15-150 |
| L(mm) | 563 | 622 | 795 |
| W(mm) | 196 | 292 | 331 |
| H(mm) | 193 | 214 | 214 |
Color Temperature:3000-6500K
Lumen: 4200LM (140LM/W)
Input Voltage: AC90-305V 50/60Hz
Power Factor: PF≥0.95
Color Rendering Index: Ra≥70
Temperature of Working Condition:-40-50°C
Protection Grade:IP66
