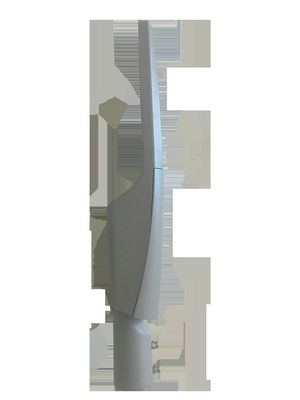

CE CB Rohs Aluminum High Lumen Outdoor Road Light Housing 130lm/W IP66 80w 100w IP66

CE CB Rohs Aluminum High Lumen Outdoor Road Light Housing 130lm/W IP66 80w 100w IP66
CE CB Rohs Aluminum High Lumen Outdoor Road Light Housing 130lm/W IP66 80w 100w IP66
video play

Large Image :  CE CB Rohs Aluminum High Lumen Outdoor Road Light Housing 130lm/W IP66 80w 100w IP66

Product Details:
Place of Origin: CHINA
Brand Name: Die-casting Man
Certification: CE, RoHs, ENEC, CB
Model Number: YASL-27-120(M)
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: 1pc/bag/foam/carton, pallet optional
Delivery Time: 7-10 days based on order QTY
Payment Terms: T/T, 30% T/T as deposit, 70% T/T balance before delivery(EXW) or against shipping documents(FOB Ningbo), L/C
Supply Ability: 30000pcs/month
Contact Now
Detailed Product Description
Power: 80-150W Material: Die Casting Aluminium
Color Rendering Index: Ra≥70 Protectin Grade: IP66
Power Factor: PF≥0.95 Optical Effect: 130~190 Lm/w(Optional)
Net Weight: 4.5kgs Gross Weight: 4.1kgs
Size: 707x280x113 Mm Protection Level: IK08/09/10
High Light:

Aluminum Road Light Housing Corrosion Resistant

,

Outdoor Road Light Housing 130lm/W

Product Specification:



SL-27 series LED street lights provide complete lighting solutions for road and street.

Compliance with international standards ENEC, CB, CE, EMC, LM79, Rohs …

Full wattage from 30 to 320W, with ultra-high luminous efficiency and various lighting distribution

Intelligent control system: timing dimming, 0-10v dimming, Dali, Zigbee, NB-Lot, etc

Class I or ClassII both availble.



Model SL-27-60 SL-27-120 SL-27-200
Input Wattage (W) 30/40/50/60 80/100/120 150/200/240
Installation Pipe Diameter φ60mm φ60mm φ60mm
Installation Height (m) 3-8 6-10 8-12
Input Voltage 90~305Vac
Frequency Range 50/60Hz
Power Factor ≥0.9
Light source LED
Driver Inventronics
Meanwell (optional)
other brand of driver(upon request)
Luminaire efficacy (lm/W) 130-170
Color Temperature 4000K (3000K/5000K,5700K upon request)
Color rendering index ≥70
Diming Dali (optional)
1-10V (optional)
PWM (optional)
Smart control management system (upon request)
The environment temperature -40～45℃
Humidity of Working Condition 20%～90%RH
Protectin Grade IP66
Protection level IK08
Standards & Certifications ENEC(uncertificated)
CB(uncertificated)
CE(uncertificated)
Rohs(uncertificated)
Options Photocell
Surge protection
External cable (length upon request)
Smart control device
Meterials Housing: ADC12 die-cast aluminum
Cover: Toughened Glass
External Screws: 304 stainless screws
Color Grey/Black ( other upon request)



Features:

Novel and beautiful appearance design

Safe and reliable structural design

Button type lamp opening structure design

Adjustable bracket both available for horizontal and vertical installing



Product structure:



Bracket installation direction 180°

60W LED Street Light Shell Body Button Type Lamp For Road And Street 0



Bracket installation direction

60W LED Street Light Shell Body Button Type Lamp For Road And Street 1

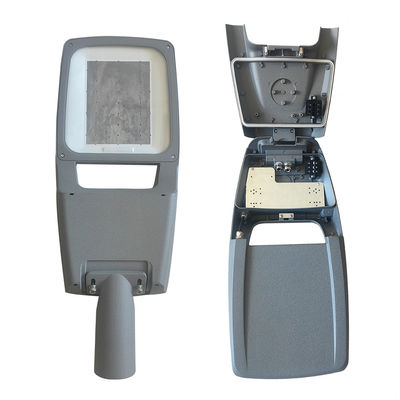

The way gear boxes are opened

60W LED Street Light Shell Body Button Type Lamp For Road And Street 2



Product size and weight

60W LED Street Light Shell Body Button Type Lamp For Road And Street 360W LED Street Light Shell Body Button Type Lamp For Road And Street 4

Model 产品尺寸 (mm) 包装尺寸(预估) (mm) 净重 毛重
Packing size (mm) Packing size(estimate)(mm) G.W N.W
L W H L W H (kgs) (kgs)
YSSL-27-60 633 250 122 700 320 190
YSSL-27-120 723 280 122 790 350 190
YSSL-27-200 799 319 122 860 390 190

60W LED Street Light Shell Body Button Type Lamp For Road And Street 5
