Gas Station IP65 Waterproof Led High Bay Lights AC85 - 265v 50 - 60HZ

China Gas Station IP65 Waterproof Led High Bay Lights AC85 - 265v 50 - 60HZ supplier
Gas Station IP65 Waterproof Led High Bay Lights AC85 - 265v 50 - 60HZ supplier Gas Station IP65 Waterproof Led High Bay Lights AC85 - 265v 50 - 60HZ supplier

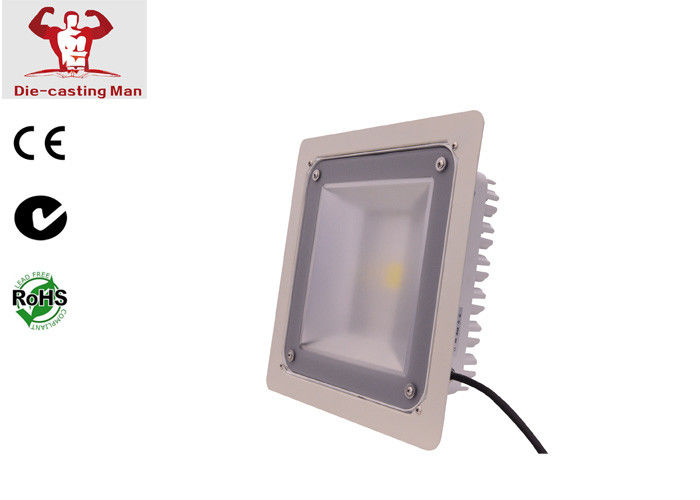

Large Image :  Gas Station IP65 Waterproof Led High Bay Lights AC85 - 265v 50 - 60HZ

Product Details:

Place of Origin: CHINA
Brand Name: Die casting man
Certification: UL;CE;ROHS
Model Number: ZHFL-10-90

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: foam filing/pc
Delivery Time: 7-30 days base on order quantity
Supply Ability: 10000PCS/Month.
Contact Now
Detailed Product Description
Material: ADC12 Aluminum Wattage: 90W
IP: 65 CRI: >70
LED Color: WW/NW/CW Input Voltage: AC85 - 265V
Frequency Range: 50 - 60Hz Working Ambient Temperature: -30℃ - 50℃
Working Ambient Humidity: 10% - 90%

Gas Station IP65 Waterproof Led High Bay Lights AC85 - 265v 50 - 60HZ



Description:



New Patent 90W LED streetlight made of High quality Die Casting Aluminum housing +Bridgelux LED +UL LED Driver



1. The latest version of high power COB Street Light Housing



2. State-of-art designing with completed die-casting body as heat sink offer the maximum heat management system,which can hold maximum 1pc 40W Bridgelus COB led.



3. Patented anti-glare optic lense enable this street light give an maximum 130 degree and 140 degree light spread,with an asymmetrical polar curve.



4. IP65 protection grade.



5. User-friendly mechanical  designing,easy to assemble the led,potic lense and led power supply.



6. The Led power supply is designed to installed with two U brackets,so any brand of led power supply can be easily installed.





Applications:



Motorways,Major roads,minor roads,roundabouts,crossing and industrial areas.





Specifications



Model Number

ZHFL-10-90

Electrical Specifications

LED QTY

90W x1Pc

TotaLPower consumption

90W

Operation Voltage

85-265VAC or 12VDC or 24VDC

Operating Humidity

10%~90%

Working Temperature

-30 ~ 50°C

Power Fact(PF)

>0.95

Driver Efficiency

> 0.9

Photometric Specifications

LED Luminous Flux

4600 lm - Initial



4200 lm - Maintain

Led Luminous Efficiency

>90LM/W

CRI

Ra ≥ 70

LED Color

3000k-6500k

Mechanical Specifications

IP Rating

IP65

Warranty

5Years

Heat Radiator

die-casting body as heat sink

Lens

Patented anti-glare optic lense








Our service:





your inquiries will be replied in 24 hours in our working days.

  • 3years warranty under normal use.
  • Professional design provided.
  • Timely delivery guaranteed.
