Product Details:
Payment & Shipping Terms:
|
| Manufacturer: | Ninghai Zhouhua Die Casting Co.,Ltd | Material: | Aluminum GB102 |
|---|---|---|---|
| Wattage: | 150W | Fixture Color: | Gold Grey |
| LED Color: | WW/NW/CW | CRI: | >70 |
| Input Voltage: | AC85 - 265V | Frequency Range: | 50 - 60Hz |
| Working Ambient Humidity: | 10% - 90% | Working Ambient Temperature: | -30℃ - 50℃ |
| High Light: | outdoor light housing,street light housing |
||

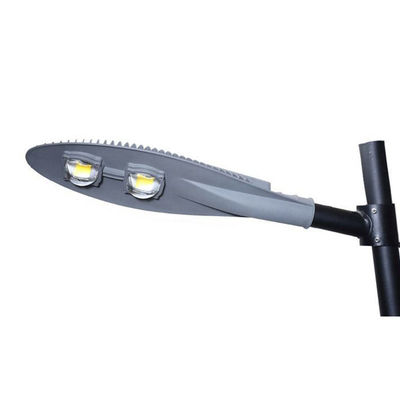

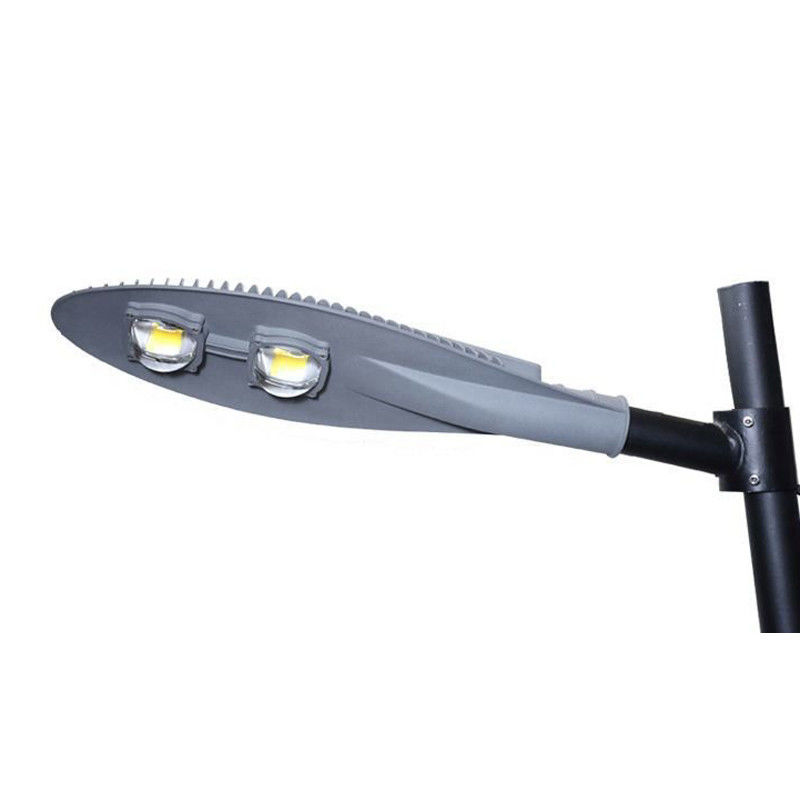

Gold Grey 150 Watt Led Street Light Fixtures AC85 - 265v Led Road Light
Part Number:
ZHSL-10-150W
Unit Price:
US$38
Production Lead Time*:
7-30 Days
Shipping:
EXW / FOB NINGBO
Quantity:
10pcs
Finish Color: Light Gray (Standard) , White, Black.
Product Description:
LED Engine Module
· LED life time of 30,000+ hours
· High power integrated packaging LED chips, 120° beam spread available
· Minimum CRI of 70, custom CRI available
· Operating temp: -30º C to +60º C
· No toxic chemicals / ROHS compliant
· Low Tj for long life, low lumen depreciation
· CE certified, meets ROHS standards
· Eligible for Rebates, Design Lights Consortium® Qualified*
· 50-80% energy savings
· Manufactured in the China
· Standard distribution is Type V, others distributions available
Electrical
· Standard AC input of 85-265v VAC, up to 480v available
· EMI filter: 47CFR, part 2, part 15
· Power factor: >0.9
· Total harmonic distortion: <20%
· Surge protection: IEC/EN 61000-4-5 EMC test standard
· Licensed electrician required for installation
Housing
· Rugged, fully sealed, die-cast aluminum housing
· UV-resistant, multi-layer, architectural color, powder coat finish
· High impact, heat resistant, tempered lens
Energy Control Options
· Motion detection available
· Photo sensors available
Technical Specifications
| Code | YASL-10-50 | YASL-10-100 | YASL-10-110 | YASL-10-120 | YASL-10-150 | YASL-10-180 |
| Power | 50W Max | 100W Max | 110W Max | 120W Max | 150W Max | 180W Max |
| Color Temperature | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K |
| Efficiency | ＞120LM/W | ＞120LM/W | ＞120LM/W | ＞120LM/W | ＞120LM/W | ＞120LM/W |
| Voltage | AC90-305V | AC90-305V | AC90-305V | AC90-305V | AC90-305V | AC90-305V |
| Power Factor | PF≥0.95 | PF≥0.95 | PF≥0.95 | PF≥0.95 | PF≥0.95 | PF≥0.95 |
| CRI(Ra) | Ra≥70 | Ra≥70 | Ra≥70 | Ra≥70 | Ra≥70 | Ra≥70 |
| Ambient Temperature | -40-50℃ | -40-50℃ | -40-50℃ | -40-50℃ | -40-50℃ | -40-50℃ |
| Ambient Humidity | 20%-90%RH | 20%-90%RH | 20%-90%RH | 20%-90%RH | 20%-90%RH | 20%-90%RH |
| Lifetime(hrs) | 50000h | 50000h | 50000h | 50000h | 50000h | 50000h |
| IP Rate | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 |
| Installation Pipe Diameter | Φ60mm | Φ60mm | Φ60mm | Φ60mm | Φ60mm | Φ60mm |
| Installation Height | 6-8m | 10-12m | 10-12m | 12-14m | 12-14m | 12-14m |
| Net Weight | 3.6kg | 4.5kg | 4.5kg | 6.5kg | 7kg | 8.5kg |
| Gross Weight | 4.2kg | 5kg | 5kg | 7.0kg | 7.5kg | 9.0kg |
| Packing Size(mm) | 520*195*290/2pcs | 640*280*155 | 640*280*155 | 745*330*170 | 745*330*175 | 865*360*180 |
Feature
.Die casting aluminum body with anti-corrosion treatment.
.Highly polished aluminum reflector.
.Toughened glass with good light transmition rate.
.IP65 Rated for external use
.Equipped with LG/CREE LED chip, generate high luminous flux
.LED emiiter brand can be varied according to requirement.
.High efficient and power factor LED power supply.
.Longlife span over 50000 Hours.
.Obtain a 50-70% Energy Saving compared with Halogen Lamps.
Application:
Motorways , Major roads, minor roads, roundabouts, crossings and industrial areas.
Available housing colors: Black, Grey, White.
Note: Additional wattages and configurations available upon request. Specifications are subject to change without notice.
