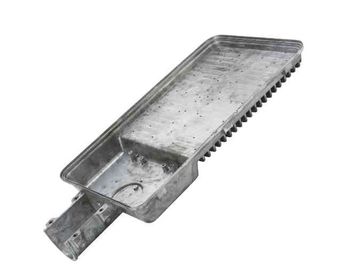

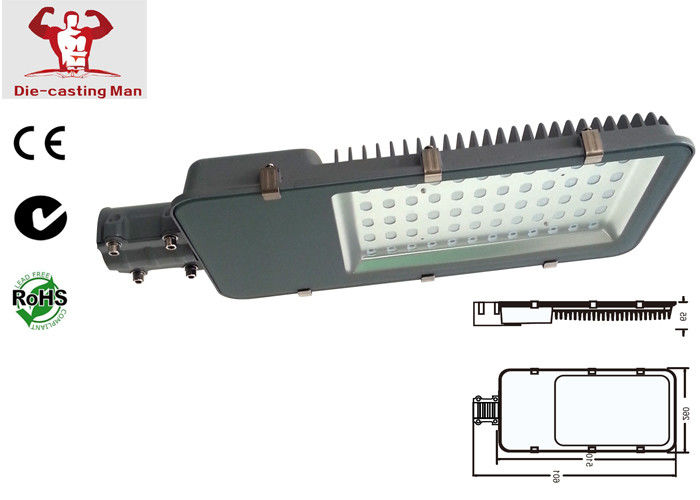

Industrial 90W SMD LED Street Light Housing with Foam Packing 9000Lm

China NingBo Die-Casting Man Technology Co.,ltd. certification
China NingBo Die-Casting Man Technology Co.,ltd. certification
Gold supplier, save me a lot of time to do the purchasing! And always giving professional suggestion, help me a lot in business! Thanks!

—— Ian Nicholas

Good quality products, low price and high quality services. Worthy trust and recommending business partner.

—— Michal Jussize

Hi Jenny, I have received the cargo. I want to say that we are very satisfied with your product and exelent service. I want also make a new order.

—— Ryan Retherford

I have been cooperating with Die casting man for 3 years. they supplied me thousands pieces of street light housing, I am glad to work with them because of the reliable quality and competitive price. A good experience to me.

—— Diana

I'm Online Chat Now

Industrial 90W SMD LED Street Light Housing with Foam Packing 9000Lm

Industrial 90W SMD LED Street Light Housing with Foam Packing 9000Lm
Industrial 90W SMD LED Street Light Housing with Foam Packing 9000Lm Industrial 90W SMD LED Street Light Housing with Foam Packing 9000Lm Industrial 90W SMD LED Street Light Housing with Foam Packing 9000Lm Industrial 90W SMD LED Street Light Housing with Foam Packing 9000Lm

Large Image :  Industrial 90W SMD LED Street Light Housing with Foam Packing 9000Lm

Product Details:
Place of Origin: CHINA
Brand Name: Die casting man
Certification: UL;CE;ROHS
Model Number: ZHSL-01-90
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: foam filing/pc
Delivery Time: 7-30 days base on order quantity
Supply Ability: 10000PCS/Month.
Detailed Product Description
Material: ADC12 Aluminum Wattage: 30W
IP: 65 CRI: >70
LED Color: WW/NW/CW Input Voltage: AC85 - 265V
Frequency Range: 50 - 60Hz Working Ambient Temperature: -30℃ - 50℃
Working Ambient Humidity: 10% - 90%
High Light:

outdoor light housing

,

street light housing

90W SMD Outdoor Led Street Lights


Item no:

ZHLS-01-90



Production Lead Time*:

7-30 Days

Shipping:

EXW / FOB NINGBO

Quantity:

10pcs



Quick Detail:

Item NO. ZHSL-01-90
LED Quantity 50pcs
Rated Power 90W
Color Temperature 2700-6500K
Initial Luminous Flux 9000Lm
Input Voltage AC85-265V
Frequency Range 50-60Hz
Power Factor PF>0.9
Color Rendering Index Ra>75-80
Temperature Working Condition -40℃ - 50℃
Humidity of Working Condition 20-90%
LED Lifetime 50000h
Protection Grade IP65
Installation Pipe Diameter 60mm
Installation Height 6-8m
Product Dimension 601*260*65mm
Net Weight 9.8kgs
Gross Weight 10.7kgs
Packing Size 64.5*22*31 cm



LED Engine Module


· High power integrated packaging LED chips, 120° beam spread available

· Minimum CRI of 70, custom CRI available

· Operating temp: -30º C to +60º C

· No toxic chemicals / ROHS compliant

· Low Tj for long life, low lumen depreciation

· CE certified, meets ROHS standards

· Eligible for Rebates, Design Lights Consortium® Qualified*

· 50-80% energy savings

· Manufactured in the China

· Standard distribution is Type V, others distributions available
Electrical

· Standard AC input of 85-265v VAC, up to 480v available

· EMI filter: 47CFR, part 2, part 15

· Power factor: >0.9

· Total harmonic distortion: <20%

· Surge protection: IEC/EN 61000-4-5 EMC test standard

· Licensed electrician required for installation
Housing

· Rugged, fully sealed, die-cast aluminum housing

· UV-resistant, multi-layer, architectural color, powder coat finish

· High impact, heat resistant, tempered lens
Energy Control Options

· Motion detection available

· Photo sensors available

Feature
.Die casting aluminum body with anti-corrosion treatment.
.Highly polished aluminum reflector.
.Toughened glass with good light transmition rate.
.IP65 Rated for external use
.Equipped with LG/CREE LED chip, generate high luminous flux
.LED emiiter brand can be varied according to requirement.
.High efficient and power factor LED power supply.
.Longlife span over 50000 Hours.
.Obtain a 50-70% Energy Saving compared with Halogen Lamps.

Industrial 90W SMD LED Street Light Housing with Foam Packing 9000Lm 0



Applications:



Motorways,Major roads,minor roads,roundabouts,crossing and industrial areas.
