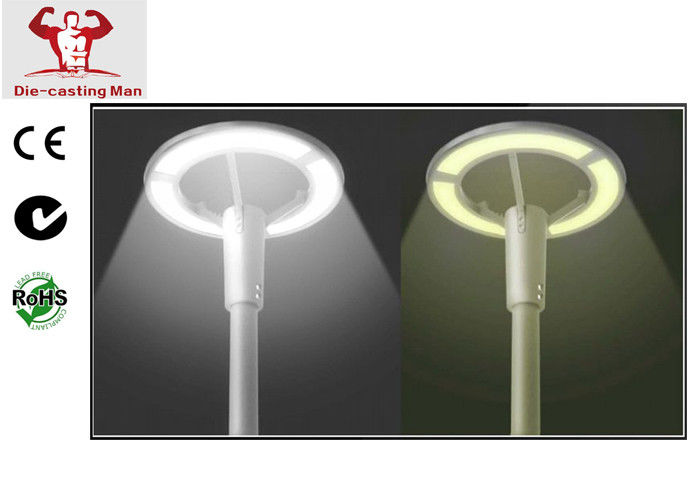

Professional 60W Outdoor Area Lighting For Urban / Garden

China Professional 60W  Outdoor Area Lighting For Urban / Garden supplier
Professional 60W  Outdoor Area Lighting For Urban / Garden supplier Professional 60W  Outdoor Area Lighting For Urban / Garden supplier

Large Image :  Professional 60W Outdoor Area Lighting For Urban / Garden

Product Details:

Place of Origin: CHINA
Brand Name: Die casting man
Certification: CE,ROHS,UL
Model Number: ZHUB-01-54

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: $72-$100/SETS
Packaging Details: foam package
Delivery Time: 7-30 days base on order quantity
Supply Ability: 10000PCS/Month.
Contact Now
Detailed Product Description
Material: Aluminum Die Casting Body Input Voltage: AC85 - 265V
Frequency Range: 50 - 60Hz Beam Angle: 120°
Painting Color: Black, White, Gray Wattage: 30W-60W
LED QTY: 60PCS Customer Logo: Available
Protection Rate: IP65 Installation Height: 60mm
Weight: 7.63kgs



60W Urban Light Garden Light IP65 Chip MW driver Die casting Aluminium



This Garden light is suitable for your personal lighting.




Product Descripton:

Item NO. ZHUB-01-54
Electric Current 1800mA
LED Quantity 60pcs
Rated Power 54W
Color Temperature 3000/4000/6500
Initial Luminous Flux 4860/4320/3780Lm
Frequency Range 50-60Hz
Power Factor PF>0.95
Color Rendering Index Ra>70-80
Temperature Working Condition -40℃ - 50℃
Humidity of Working Condition 20-90%
LED Lifetime 50000h
Protection Grade IP65
Installation Pipe Diameter 60mm
Installation Height 6-8m
Net Weight 7.63 kgs
Gross Weight 8.73 kgs
Packing Size 62.5*62.5*42 cm



Dimension:

600*600*430





Description:



54W Outdoor Led Floodlight with Bridgrlux LED Chips as 2400lumens output,high quality die-casting aluminum body,IP65,3Years warranty.



1. High light intensity , simple designs and ideally suited.
2. High quality Die casting aluminum boday with anti-corrosiontreatment and with electrostatic plastic coating.

3. LED Floodlight housing can make 54W .

4. Highly polished aluminum reflector.

5. Adjustable single bracket could make the light for 120 degree around.

6. High Efficient and power factor led power supply .

7. Obtain a 50-70% energy saving compared with halogen lamps.



LED Engine Module

· LED life time of 30,000+ hours

· High power integrated packaging LED chips, 120° beam spread available

· Minimum CRI of 70, custom CRI available

· Operating temp: -30º C to +60º C

· No toxic chemicals / ROHS compliant

· Low Tj for long life, low lumen depreciation

· CE certified, meets ROHS standards

· Eligible for Rebates, Design Lights Consortium® Qualified*

· 50-80% energy savings

· Manufactured in the China

· Standard distribution is Type V, others distributions available
Electrical

· Standard AC input of 85-265v VAC, up to 480v available

· EMI filter: 47CFR, part 2, part 15

· Power factor: >0.9

· Total harmonic distortion: <20%

· Surge protection: IEC/EN 61000-4-5 EMC test standard

· Licensed electrician required for installation
Housing

· Rugged, fully sealed, die-cast aluminum housing

· UV-resistant, multi-layer, architectural color, powder coat finish

· High impact, heat resistant, tempered lens
Energy Control Options

· Motion detection available

· Photo sensors available

Feature
.Die casting aluminum body with anti-corrosion treatment.
.Highly polished aluminum reflector.
.Toughened glass with good light transmition rate.
.IP65 Rated for external use
.Equipped with LG/CREE LED chip, generate high luminous flux
.LED emiiter brand can be varied according to requirement.
.High efficient and power factor LED power supply.
.Longlife span over 50000 Hours.
.Obtain a 50-70% Energy Saving compared with Halogen Lamps.

Application:
Motorways , Major roads, minor roads, roundabouts, crossings and industrial areas.

Available housing colors: Black, Grey, White.



Color temperature and Installation:



Professional 60W  Outdoor Area Lighting For Urban / Garden

Professional 60W  Outdoor Area Lighting For Urban / Garden
