8000Lm SMD LED High Bay Lights IK8 / Warehouse LG Chip High Bay Lamps,80W/200W.

Good quality LED Street Light Housing for sales
Good quality LED Street Light Housing for sales
Gold supplier, save me a lot of time to do the purchasing! And always giving professional suggestion, help me a lot in business! Thanks!

—— Ian Nicholas USA

Good quality products, low price and high quality services. Worthy trust and recommending business partner.

—— Michal Jussize

Hi,Summer, I have received the cargo. I want to say that we are very satisfied with your product and exelent service. I want also make a new order.

—— Ryan Retherford

I'm Online Chat Now

8000Lm SMD LED High Bay Lights IK8 / Warehouse LG Chip High Bay Lamps,80W/200W.

China 8000Lm SMD  LED High Bay Lights IK8 / Warehouse LG Chip High Bay Lamps,80W/200W. supplier
8000Lm SMD  LED High Bay Lights IK8 / Warehouse LG Chip High Bay Lamps,80W/200W. supplier 8000Lm SMD  LED High Bay Lights IK8 / Warehouse LG Chip High Bay Lamps,80W/200W. supplier 8000Lm SMD  LED High Bay Lights IK8 / Warehouse LG Chip High Bay Lamps,80W/200W. supplier

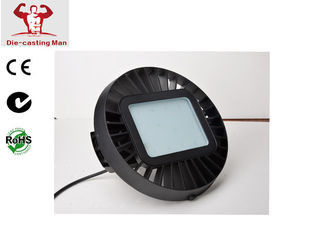

Large Image :  8000Lm SMD LED High Bay Lights IK8 / Warehouse LG Chip High Bay Lamps,80W/200W.

Product Details:

Place of Origin: China
Brand Name: Die Casting Man/OEM
Certification: CE,ROHS, UL,SAA
Model Number: ZHHB-02-80/200

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: Carton box with foam
Delivery Time: 7-30 days base on order quantity
Payment Terms: By T/T 30% in advance and 70% after shipment EXW/FOB NINGBO, Western Union
Supply Ability: 10000PCS/Month.
Contact Now
Detailed Product Description
Manufacturer: Ninghai Zhouhua Die Casting Co.,Ltd Material: GB102 Aluminum
Wattage: 80W/200W Fixture Color: Light Grey
LED Color: WW/NW/CW CRI: >70
Input Voltage: AC85 - 265V Frequency Range: 50 - 60Hz
Working Ambient Humidity: 10% - 90% Working Ambient Temperature: -30℃ - 50℃

Product Details:

Place of Origin: China
Brand Name: diecastingman
Certification: CE
Model Number: ZHHB-02-80

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: USD 76-80 per PC
Packaging Details: 38.5*37.5*29.5
Delivery Time: 4 weeks
Supply Ability: 10000 per month




Manufacturer: Ninghai Zhouhua Die-casting CO., Ltd. Material: Aluminium
Fixture Color: Grey, White And Black Input Voltage: AC85-265V
Frequency Range: 50-60Hz Working Ambient Humidity: 10%-90%
Working Ambient Temperature: -30℃--50℃




High Power SMD Industrial Led High Bay Lamp 80w For Warehouse





Product Specification

Item No ZHHB-02-80 ZHHB-02-200
Electric current 4000mA 4000mA
LED Quantity 105pcs 105pcs
Rated Power 80W 200W
Standard Color Temperature 3000/4000/6500K 3000/4000/6500K
Luminous Flux 13200Lm 22000Lm
Input Voltage AC100-270V AC100-270V
Frequency Range 50/60Hz 50/60Hz
Power Factor PF>0.95 PF>0.95
Color rendering index 70-80Ra 70-80Ra
Tmpreturoe of Working Condition -35℃-50℃ -35℃-50℃
LED Life time 50000h 50000h
Humidity of Working condition 10%-90% 10%-90%
Protaction Grade Ip65 Ip65
Net Weight 4.1kg 7.4kg
Gross Weight 5kg 8.6kg
Packing Size 375*375*225mm 470*470*260mm





Finish Color: Light Gray (Standard) , White, Black.



Product Description:

LED Engine Module

· LED life time of 30,000+ hours

· High power integrated packaging LED chips, 120° beam spread available

· Minimum CRI of 70, custom CRI available

· Operating temp: -30º C to +60º C

· No toxic chemicals / ROHS compliant

· Low Tj for long life, low lumen depreciation

· CE certified, meets ROHS standards

· Eligible for Rebates, Design Lights Consortium® Qualified*

· 50-80% energy savings

· Manufactured in the China

· Standard distribution is Type V, others distributions available

Electrical

· Standard AC input of 85-265v VAC, up to 480v available

· EMI filter: 47CFR, part 2, part 15

· Power factor: >0.9

· Total harmonic distortion: <20%

· Surge protection: IEC/EN 61000-4-5 EMC test standard

· Licensed electrician required for installation

Housing

· Rugged, fully sealed, die-cast aluminum housing

· UV-resistant, multi-layer, architectural color, powder coat finish

· High impact, heat resistant, tempered lens

Energy Control Options

· Motion detection available

· Photo sensors available



Technical Specifications



Feature

.Die casting aluminum body with anti-corrosion treatment.

.Highly polished aluminum reflector.

.Toughened glass with good light transmition rate.

.IP65 Rated for external use

.Equipped with LG/CREE LED chip, generate high luminous flux

.LED emiiter brand can be varied according to requirement.

.High efficient and power factor LED power supply.

.Longlife span over 50000 Hours.

.Obtain a 50-70% Energy Saving compared with Halogen Lamps.



Application:

Motorways , Major roads, minor roads, roundabouts, crossings and industrial areas.



Available housing colors: Black, Grey, White.



Note: Additional wattages and configurations available upon request. Specifications are subject to change without notice.






MATERIAL AND FEATURES:



1. Light fitting totally made of die-casting aluminum.

2. SMD light source with round lens.

3. Wide choice of lamp including 80W , 100W , 120W , 150W , 200W and 250W LED.

4. IP65 Rated for external use.

5. High efficient and high power factor led power.



APPLICATION:

warehouse, factory workshop, freezer, Industrial areas , etc.



SPECIFICATION:



ITEM: ZHHB-02-80

Working voltage: AC84-265V

Power:80W

Power factor: PF>0.90

Lumens >8000Lm

Fixture efficiency: >90%

Emitting color: White (2700-6500K)

Life time: >30000Hours

Viewing angle: 120°

Color rendering: Ra>75-80

Can be with silk printing if the quantity is enough.



PAYMENT:



30% deposit and 70% rest payment upon the copy of BL.



8000Lm SMD  LED High Bay Light Fixture IP65 IK8 For Warehouse LG chip and MW driver
