Die Casting Aluminium SMD LED Street Light Fixtures 50W 5000LM IP66

China Die Casting Aluminium SMD LED Street Light Fixtures 50W 5000LM IP66 supplier
Die Casting Aluminium SMD LED Street Light Fixtures 50W 5000LM IP66 supplier Die Casting Aluminium SMD LED Street Light Fixtures 50W 5000LM IP66 supplier Die Casting Aluminium SMD LED Street Light Fixtures 50W 5000LM IP66 supplier Die Casting Aluminium SMD LED Street Light Fixtures 50W 5000LM IP66 supplier

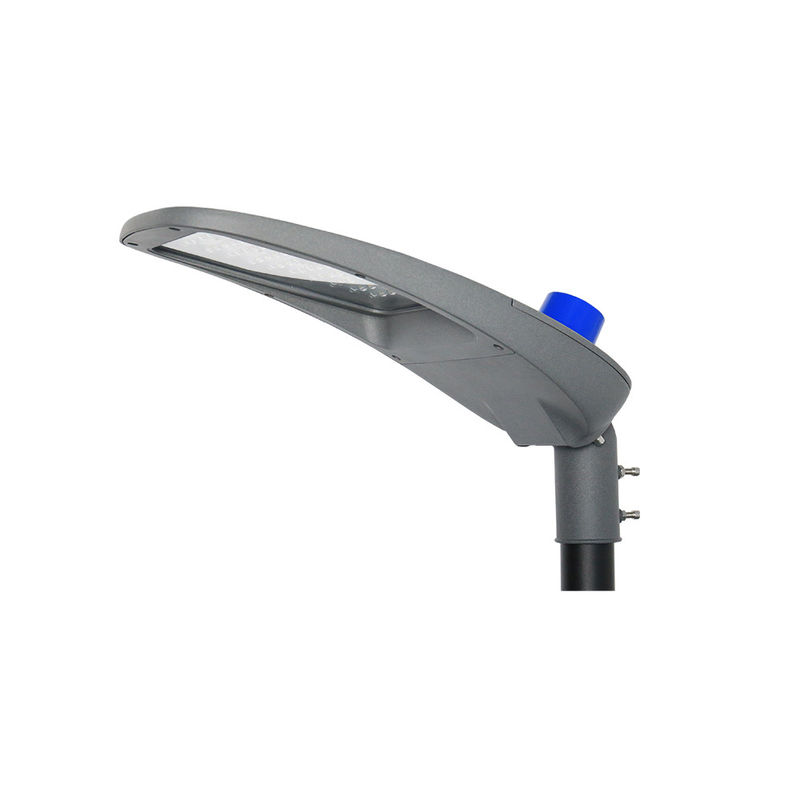

Large Image :  Die Casting Aluminium SMD LED Street Light Fixtures 50W 5000LM IP66

Product Details:

Place of Origin: China
Brand Name: Die Casting Man
Certification: CE
Model Number: ZHSL-03-50

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: Carton box
Delivery Time: 7-30 days base on order quantity
Payment Terms: By T/T 30% in advance and 70% after shipment EXW/FOB NINGBO, Western Union, L/C
Supply Ability: 10000PCS/Month.
Contact Now
Detailed Product Description
Manufacturer: Ninghai Zhouhua Die Casting Co.,Ltd Material: ADC12 Aluminum
CRI: >70 Fixture Color: Grey
Input Voltage: AC85 - 265V Working Ambient Temperature: -30℃ - 50℃
IP: 66 Wattage: 30W-50W


PF >0.9 Led Outdoor Lighting Fixtures 50w Led Street Lamps With PC Lens


Item no: ZHLS-03-50

Quick Detail:

Name

 50W Led Steet light Die casting fixture

Application

Use for Roadway

Weight

2338g

Feature

New Design

Material

ADC12

Certificate

ROHS







Item NO. ZHSL-03-50
LED Quantity 30pcs
Rated Power 50W
Color Temperature 2700-6500K
Initial Luminous Flux 5200LM
Input Voltage AC85-265V
Frequency Range 50-60Hz
Power Factor PF>0.95
Color Rendering Index Ra>75-80
Temperature Working Condition -40℃ - 50℃
Humidity of Working Condition 20-90%
LED Lifetime 70000h
Protection Grade IP65
Installation Pipe Diameter 60mm
Installation Height 6-8m
Product Dimension 710*350*130mm
Net Weight 5.5 kgs
Gross Weight 6 kgs


LED Engine Module


·                     LED life time of 30,000+ hours

·                     High power integrated packaging LED chips, 120° beam spread available

·                     Minimum CRI of 70, custom CRI available

·                     Operating temp: -30º C to +60º C

·                     No toxic chemicals / ROHS compliant

·                     Low Tj for long life, low lumen depreciation

·                     CE certified, meets ROHS standards

·                     Eligible for Rebates, Design Lights Consortium® Qualified*

·                     50-80% energy savings

·                     Manufactured in the China

·                     Standard distribution is Type V, others distributions available
Electrical

·                     Standard AC input of 85-265v VAC, up to 480v available

·                     EMI filter: 47CFR, part 2, part 15

·                     Power factor: >0.9

·                     Total harmonic distortion: <20%

·                     Surge protection: IEC/EN 61000-4-5 EMC test standard

·                     Licensed electrician required for installation
Housing

·                     Rugged, fully sealed, die-cast aluminum housing

·                     UV-resistant, multi-layer, architectural color, powder coat finish

·                     High impact, heat resistant, tempered lens
Energy Control Options

·                     Motion detection available

·                     Photo sensors available


Feature
.Die casting aluminum body with anti-corrosion treatment.
.Highly polished aluminum reflector.
.Toughened glass with good light transmition rate.
.IP65 Rated for external use
.Equipped with LG/CREE LED chip, generate high luminous flux
.LED emiiter brand can be varied according to requirement.
.High efficient and power factor LED power supply.
.Longlife span over 50000 Hours.
.Obtain a 50-70% Energy Saving compared with Halogen Lamps.

Application:
Motorways , Major roads, minor roads, roundabouts, crossings and industrial areas.

Available housing colors: Black, Grey, White.



We are a professional Die casting factory for around 30years.

If you are importing lighting fixture,of sure our company will be a good option for you since:

1) we can use the material according to your component request.
2) we are die-casting manufacturer for around 30year, we are professional on lighting design and  the quality and cost control.
3) we have profession engineer to make sure the design of the housing or the technical date of the product is meet your requirement.
   make your idea/drawing to be truth.
4) we are a lighting industrial park,so we can offer the best delivery for you.
5) we have good experience on assembling and  exporting lighting fixture for around 10 years,so can offer you very good service.

Note: Additional wattages and configurations available upon request. Specifications are subject to change without notice.
