Outdoor Waterproof Ip66 40 Watt Road Lighting Fixtures For Highway

Outdoor Waterproof Ip66 40 Watt Road Lighting Fixtures For Highway
Outdoor Waterproof Ip66 40 Watt Road Lighting Fixtures For Highway
video play

Large Image :  Outdoor Waterproof Ip66 40 Watt Road Lighting Fixtures For Highway

Product Details:
Place of Origin: NINGBO,CHINA
Brand Name: Die Casting Man
Certification: CE, RoHs, ENEC, CB
Model Number: YASL-15-40-80-150
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: Carton box with foam
Delivery Time: 7-30 days base on order quantity
Payment Terms: T/T
Supply Ability: 10000PCS/Month.
Detailed Product Description
Model: YASL-15-40-80-150 Power: 30W 50W 80W 100W 120W 150W 200W
Color: Gray, Black, Silver CCT: 2700K, 3000K, 4000K, 6500K
Instation Pipe Dia.: φ60mm Product Size: 563*196*193mm
High Light:

ip66 40 watt road lighting fixtures

,

highway road lighting fixtures outdoor

,

2700k road lighting fixtures 40w

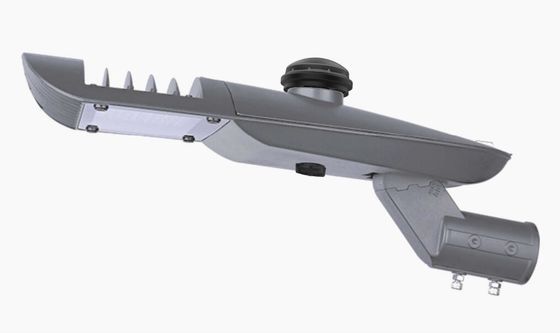

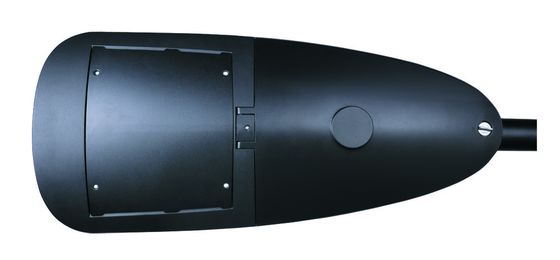

High Quality Aluminum Outdoor Waterproof IP66 40 watt Road Lighting Fixtures



Product Description:



Product name: High Quality Aluminum Outdoor Waterproof IP66 40 watt led street lamp
Power: 30W 50W 80W 100W 120W 150W 200W
Material: body made from die-casting aluminum, coated with UV and corrosion resistance coataing, suitable for pole top mounting with symmetrical light beam. All exposed metal parts (e.g. screws) are with corrosion resistance.
Size: 563*196*193mm
Color Temperature(CCT): 2700K, 3000K, 4000K, 5700K, 6500K
Lamp Luminous Efficiency(lm/w): 130
Color Rendering Index(Ra): 70
Support Dimmer: YES
Lighting solutions service: Lighting and circuitry design, Agi32 layout, Project Installation
Lifespan (hours): 50000
Working Time (hours): 50000
Place of Origin: Ningbo,China
Light Source: LED
Input Voltage(V): AC85-265V
Lamp Luminous Flux(lm): 120-130LM/W
CRI (Ra>): 80
Working Temperature(): -30- +50
Working Lifetime(Hour): 50000
Ingress Protection Rating: IP66
Impact Resistacne IK08 with tempered glass
Certification: CE, ROHS, CB, ENENC
Application: Garden, ROAD
Power Supply: AC85-265V
Coating Color: Light Grey, Black, Dark Grey, Black Grey
Color Temperature: 2700-6500



Product Code YASL-15-40 YASL-15-80 YASL-15-150
Input Wattage 40W 80W 150W
Color Temperature 3000-6500K 3000-6500K 3000-6500K
Luminous Flux 4400-5000lm 8800-10000lm 15750-18750lm
Input Voltage AC90-305V AC90-305V AC90-305V
Frequency Range 50/60Hz 50/60Hz 50/60Hz
Power Factor PF≥0.95 PF≥0.95 PF≥0.95
color rendering index Ra≥70 Ra≥70 Ra≥70
Temperature of Working Condition -40-50℃ -40-50℃ -40-50℃
Humidity of Working Condition 20%-90%RH 20%-90%RH 20%-90%RH
LED Lifetime 50000h 50000h 50000h
Protection Grade IP66 IP66 IP66
Installation Pipe Diameter ⌀60mm ⌀60mm ⌀60mm
Installation Height 4-7m 6-10m 8-12m
Net Weight 3.5kg 5.0kg 8.5kg
Gross Weight 4.0kg 5.5kg 9.5kg
Packing Size(mm) 610×240×130 710×330×130 850×380×240



This series is a high-performance street lighting available in three sizes.

The luminaire is manufactured from high pressure die-casting aluminum.

It shall have a led efficacy up to 120 lm/w and will be capable of producing

up to 18000 luminaire lumens at 4000K finished in Grey or black as standard
