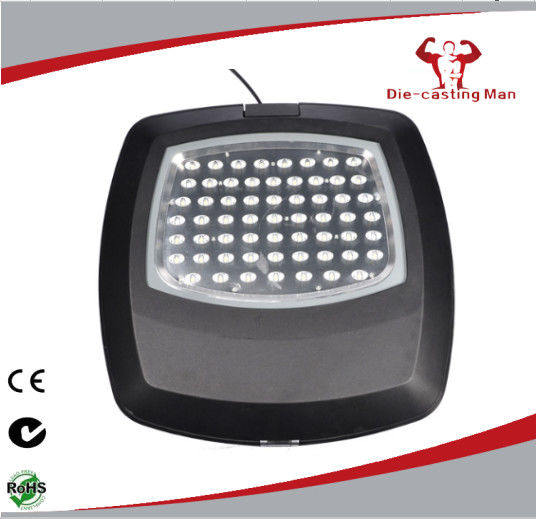

80W 120W Outdoor LED Street Light AC90-305V IP65 Road Lighting Aluminum

small.img.alt small.img.alt small.img.alt

Large Image :  80W 120W Outdoor LED Street Light AC90-305V IP65 Road Lighting Aluminum

Product Details:
Place of Origin: CHINA
Certification: CE ROHS TUV
Model Number: ZHSL-12B
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: USD58.00/PCS
Packaging Details: PE bag+bubble+carton
Delivery Time: 25 days
Supply Ability: 30pcs/per day
Detailed Product Description
Material: ADC 12 Aluminum Input Wattaage: 80W 120W
Color Temperature: 3000/4000/6500K Luminous Flux: 8400~9600 Lm
Color Rendering Index: Ra≥70 LED Lifetime: 50000h
High Light:

exterior light fixtures


street lighting fixtures

Material: ADC12 Aluminum Wattage: 80W 120W
IP: 65 CRI: ≥70
Color Temperature: 3000/40000/6500K Input Voltage: AC90 - 265V
Frequency Range: 50 - 60Hz Working Ambient Temperature: -40℃ - 50℃
Working Ambient Humidity: 20% - 90%RH LED Lifetime: 5000h


80W 120W Outdoor LED street light AC90-305V IP65 Road lighting Aluminum


Part Number: ZHSL-12B
Production Lead Time: 7-30 Days
Shipping: EXW / FOB NINGBO
Finish Color: Double gray;Sandy black;





















Model Number ZHSL-12B
Electrical Specifications

Frequency Range

Input Wattage 80W 120W
Input  Voltage AC90-305V
Operating Humidity 20%~90%RH
Working Temperature -40 ~ 50°C
Power Fact(PF) >0.95
Driver Efficiency > 0.9
Photometric Specifications LED Luminous Flux 8400~9600 lm
Power Factor PF≥0.92
Led Luminous Efficiency >100LM/W
CRI Ra ≥ 70
Color Temperature 3000/4000/6500k
Mechanical Specifications IP Rating IP65
Warranty 3Years
Heat Radiator die-casting body as heat sink
Lens Patented anti-glare optic lense
Fixture Dimension 416x430x172MM
Fixture Weight 6.2KG


Packing Information

Packing Type 1unit /ctn
Packing Dimension 478x458x220 mm
Packing Weight 7.3KG



LED Engine Module

· LED life time of 50,000hours

· High power integrated packaging LED chips, 120° beam spread available

· Minimum CRI of 70, custom CRI available

· Operating temp: -40º C to +50º C

· No toxic chemicals / ROHS compliant

· Low Tj for long life, low lumen depreciation

· CE certified, meets ROHS standards

· Eligible for Rebates, Design Lights Consortium® Qualified

· 50-80% energy savings

· Manufactured in the China

· Standard distribution is Type V, others distributions available


· Standard AC input of 90-305V,up to 480v available

· EMI filter: 47CFR, part 2, part 15

· Power factor: >0.9

· Total harmonic distortion: <20%

· Surge protection: IEC/EN 61000-4-5 EMC test standard

· Licensed electrician required for installation


· Rugged, fully sealed, die-cast aluminum housing

· UV-resistant, multi-layer, architectural color, powder coat finish

· High impact, heat resistant, tempered lens

Energy Control Options

· Motion detection available

· Photo sensors available

80W 120W Outdoor LED Street Light  AC90-305V  IP65  Road Lighting Aluminum 0
