Payment & Shipping Terms:
|Manufacturer:||Ninghai Zhouhua Die-casting Co., Ltd||Material:||ADC-3 Die-casting Aluminium|
|Cover:||Toughened Glass||Screws::||304 Stainless Screws|
|Color:||Grey/ Black/ White||Warranty:||5 Years|
exterior light fixtures,
street lighting fixtures

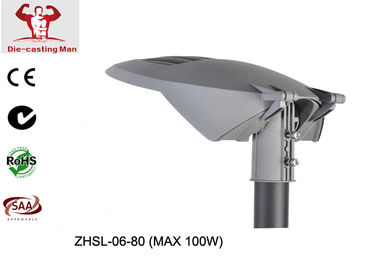

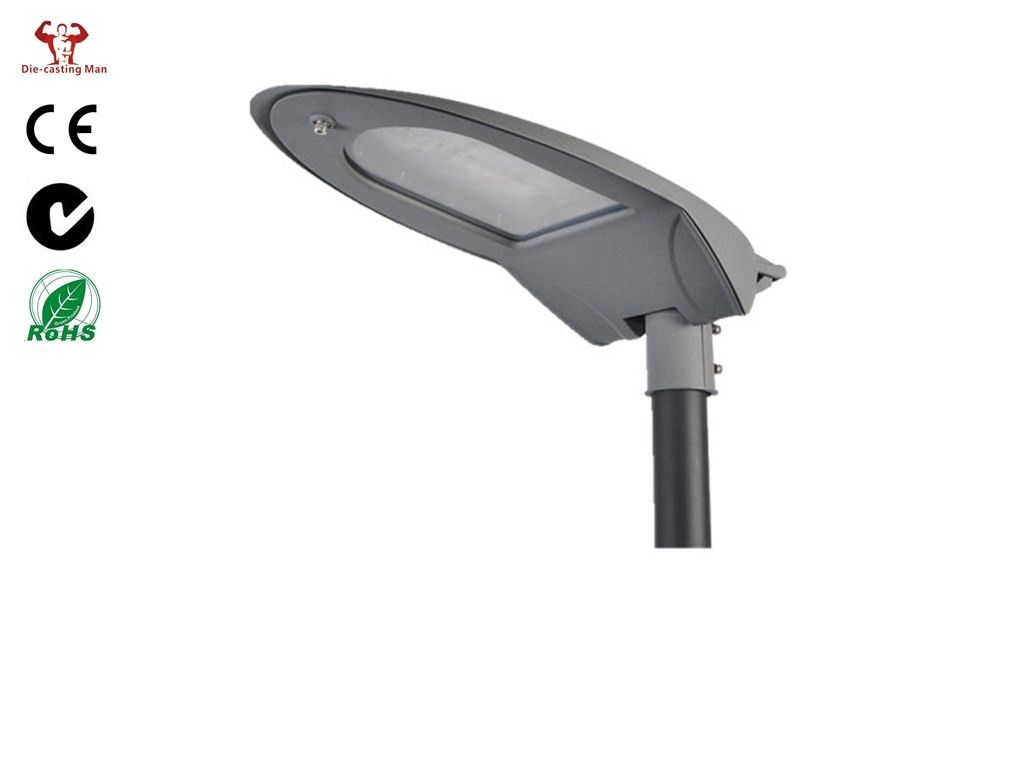

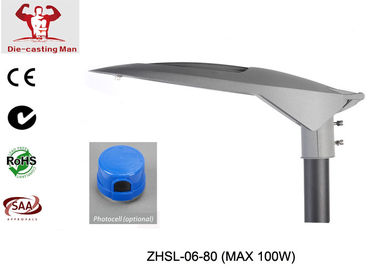

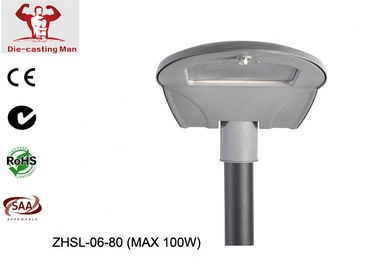

High Lumen LED Road Lighting Fixtures 60w, 80w Aluminium Die-casiting Body 2700-6500K IP66
Item NO.: ZHSL-06-80
- SL-06 series luminaire is the ideal solution that fufils requiremnents of dunctional street lighting and residential areas, which working with outstanding heat dissipation and compacting system. Equipped with high-quality electrical components, long lifespan is assured. Efficient system also reduce energy consumption and creat a more attractive urban living environment and visual comforts for public and residential areas.
- With patented housing design and range of optics, SL-06 series luminaires is also a perfect choice for project oriented usage.
|LED chip||LUXEON 3030 2D|
|LED driver||MeanWell / Inventronics|
|Input Voltage||AC 90-305V|
|Working Humidity||20%-90% RH|
|Optic angle||145°* 85° , Type I, II, III, IV|
|Color Rendering Index||Ra>70|
|Installation Pipe Diameter||Φ50mm/Φ60mm|
- European standard high-pressure aluminium housing material ADC-3
-Patented Ribbon-Free housing technology
- Excellent thermal management
- Outstanding self-cleaning capability
- Patented optics for increased application efficiency

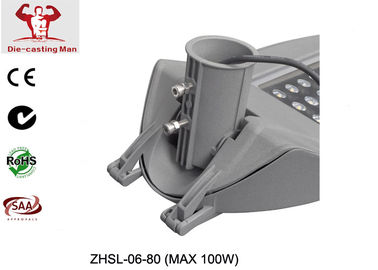

- Post-top or side-entry mounted +10° or -10° title
- Toughed glass with 4mm thickness, IK08 Impact Resistance; IK09 with 5mm glass optional
LED Engine Module
LED life time of 100,000 hours at 25℃ ambient temperature
Lumiaire efficiency: 110-130lm/w
CCT: 4000k (3000K/ 5000K/ 5700K upon request)
CRI: >70; >80 (upon request)
Operating temperature range: -30 to 45 ℃
MeanWell / Inventronics optional (other brand of driver upon request)
Class I or Class II
Input Voltage: 90-305VAC/50-60Hz, 170-305VAC/ 50-60Hz
Power automatically switch off when opening
AstroDIM for autonomous dimming with five independent levels
Smart control management system
Surge protection device (up to 20KV)
0.5m External cable(Other length upon request)
Smart control device
Standards & Certifications:
CE, ROHS, ENEC pending, GS pending, IEC pending, LM79 pending, TM21 pending
1) We are not only a die casting factory, but also a factory consist of a completed lighting design team, tooling and mold development workshop, auto-painting finishing lines, assembly lines, and completed lighting products testing.
2) All of the material and finished products will be tested under the ISO9001 quality control system.
3) We have many advanced equipments, such as semi-automatic die cast machines, CNC treatment, and full sets of completed lights IP testing, lumen test ,aging test, and photometric testing equipments. All those facilities make sure the quality is approved by CE, RoHS, TUV certificate.
4) Our team develops new items every year according to different market’s style. The products rang is including LED street light, LED urban light, LED High bay light and LED tunnel light. Our new patent design of led street lights is very popular in the market.
5) In order to meet more and more requirements of customers, we offer ODM and OEM good service. Welcome to contact the sales and visit Zhouhua factory to discuss face to face.
Contact Person: Susan
