Payment & Shipping Terms:
|Manufacturer:||Ninghai Zhouhua Die-casting Co., Ltd||Material:||ADC-3 Die-casting Aluminium|
|Screws::||304 Stainless Screws||Color:||Grey/ Black/ White|
|Warranty:||5 Years||Beam Angle:||150*70 Degree|
outdoor light housing,
led street light enclosure

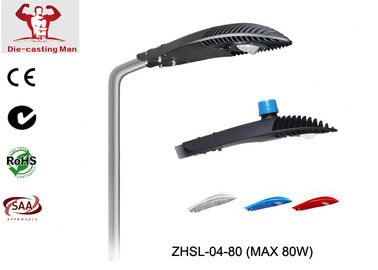

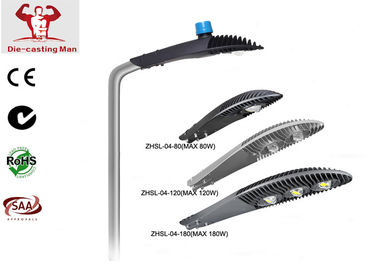

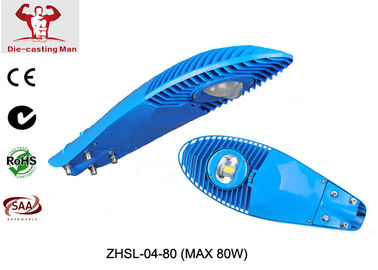

Outdoor Integrated Aluminum Cobra Single Light Source LED Street Light Housing 40w 60w 80w Wtaerproof IP66
Item NO.: ZHSL-04-80
- SL-04 series luminaire is the ideal solution that fufils requiremnents of dunctional street lighting and residential areas, which working with outstanding heat dissipation and compacting system. Equipped with high-quality electrical components, long lifespan is assured. Efficient system also reduce energy consumption and creat a more attractive urban living environment and visual comforts for public and residential areas.
- With patented housing design and range of optics, SL-04 series luminaires is also a perfect choice for project oriented usage.
|LED driver||MeanWell / Inventronics||MeanWell / Inventronics||MeanWell / Inventronics|
|Input Voltage||AC 90-305V||AC 90-305V||AC 90-305V|
|Working Humidity||20%-90% RH||20%-90% RH||20%-90% RH|
|Optic angle||150°* 70°, other optic angle optional||150°* 70°, other optic angle optional||150°* 70°, other optic angle optional|
|Color Rendering Index||Ra>70||Ra>70||Ra>70|
|Installation Pipe Diameter||Φ60mm||Φ60mm||Φ60mm|
1.LED Driver: External Meanwell driver
2.Warm and cold color temperature are available
3.Quick and easy installation to minimize retrofit costs.
4.Patented heat dissipation technology for radiator;
5.Aluminum ADC-3 for resistance to corrosion, seawater, oil and lubricant etc;
6.Acrylic sealing reflector around LED; anodized oxide treated aluminum reflector & acrylic reflector available;
7.Closed corrosion-proof silicone ring for dustproof and waterproof
8.Beam angle: 150x70 degree. Dustproof cover, or Crystal PC reflector available
9.Lamp surface treated with anodization, corrosion-resistant, shake-resistant and artistic appearance
10.Terrific heat dissipation technology: LED temperature will be rapid transfered to fin-style heatsink through heatpipe
11.Energy saving: Replace 240-300w traditional lamps, saving more than 80%
12.Eco-friendly: No lead, mercury, UV interference
13.Long lifespan: more than 50000 hours, If LED works 11-12 hours per day, it can work over 10 years.
14.Warranty: 5 years
LED Engine Module
LED life time of 100,000 hours at 25℃ ambient temperature
Lumiaire efficiency: 110-130lm/w
CCT: 4000k (3000K/ 5000K/ 5700K upon request)
CRI: >70; >80 (upon request)
Operating temperature range: -30 to 45 ℃
MeanWell / Inventronics optional (other brand of driver upon request)
Class I or Class II
Input Voltage: 90-305VAC/50-60Hz, 170-305VAC/ 50-60Hz
AstroDIM for autonomous dimming with five independent levels
Smart control management system
Surge protection device (up to 20KV)
0.5m External cable(Other length upon request)
Smart control device
Standards & Certifications:
CE, ROHS, ENEC pending, GS pending, IEC pending, LM79 pending, TM21 pending
Light Distribution Curve:
Car Park & Intersection
Caravan & Holiday Parks
Council & Government
Jetties & Coastal
Mining & Industrial
Pathway. Bike Trail & Minor Road
Public Spaces & Parks
Rural & Off Grid
Security & Safety
1) We are not only a die casting factory, but also a factory consist of a completed lighting design team, tooling and mold development workshop, auto-painting finishing lines, assembly lines, and completed lighting products testing.
2) All of the material and finished products will be tested under the ISO9001 quality control system.
3) We have many advanced equipments, such as semi-automatic die cast machines, CNC treatment, and full sets of completed lights IP testing, lumen test ,aging test, and photometric testing equipments. All those facilities make sure the quality is approved by CE, RoHS, TUV certificate.
4) Our team develops new items every year according to different market’s style. The products rang is including LED street light, LED urban light, LED High bay light and LED tunnel light. Our new patent design of led street lights is very popular in the market.
5) In order to meet more and more requirements of customers, we offer ODM and OEM good service. Welcome to contact the sales and visit Zhouhua factory to discuss face to face.
