Product Details:
Payment & Shipping Terms:
|
| Manufacturer: | Ninghai Zhouhua Die Casting Co.,Ltd | Material: | ADC12 Aluminum |
|---|---|---|---|
| CRI: | >70 | Fixture Color: | Grey |
| Input Voltage: | AC85 - 265V | Working Ambient Temperature: | -30℃ - 50℃ |
| IP: | 65 | Lamp Power: | 50W |
| Highlight: | outdoor street light,outside street lights |
||

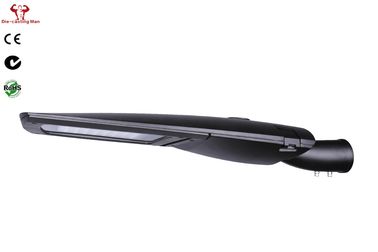

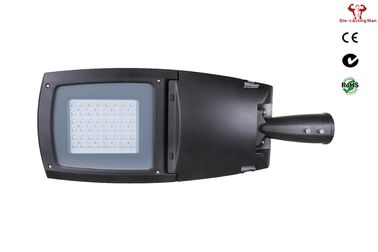

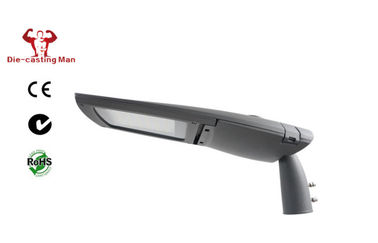

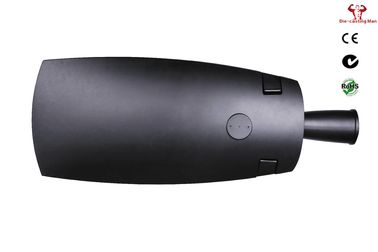

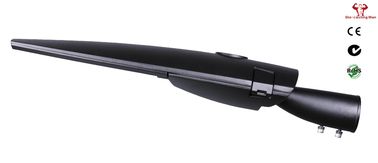

180W Engery Saving LED Street Lighting Fixtures 120Lm/w IP66 Color Gray Silver White
ZHSL-14 Family
BothHorizontalandVerticalavailable andadjustableangle-15°to 15°
Material:
Diecasting body tempered glass
Guarantee:
5Years
| Code | ZHSL-14-50 | ZHSL-14-50 | ZHSL-14-50 | ZHSL-14-50 | ZHSL-14-50 | ZHSL-14-120 | ZHSL-14-120 | ||||||
| Power | 30W | 40W | 50W | 80W | 100W | 120W | 150W | ||||||
| Color | 4000K | 4000K | 4000K | 4000K | 4000K | 4000K | 4000K | ||||||
| Tem perature | |||||||||||||
| Efficiency | ＞120LM/W | ＞120LM/W | ＞120LM/W | ＞120LM/W | ＞120LM/W | ＞120LM/W | ＞120LM/W | ||||||
| Voltage | AC100-240V | AC100-240V | AC100-240V | AC100-240V | AC100-240VAC100-240VAC100-240V | ||||||||
| PowerFactor | PF≥0.95 | PF≥0.95 | PF≥0.95 | PF≥0.95 | PF≥0.95 | PF≥0.95 | PF≥0.95 | ||||||
| CRI(Ra) | Ra≥70 | Ra≥70 | Ra≥70 | Ra≥70 | Ra≥70 | Ra≥70 | Ra≥70 | ||||||
| Am bient | -40-50℃ | -40-50℃ | -40-50℃ | -40-50℃ | -40-50℃ | -40-50℃ | -40-50℃ | ||||||
| Tem perature | |||||||||||||
| Am bientHum idity20% -90% RH20% -90% RH | 20% -90% RH | 20% -90% RH | 20% -90% RH20% -90% RH20% -90% RH | ||||||||||
| Lifetim e(hrs) | 50000 | 50000 | 50000 | 50000 | 50000 | 50000 | 50000 | ||||||
| Installation Pipe | Φ60mm | Φ60mm | Φ60mm | Φ60mm | Φ60mm | Φ70mm | Φ70mm | ||||||
| Diam eter | |||||||||||||
| Installation Height | 6-8m | 6-8m | 6-8m | 6-8m | 8-10m | 8-10m | 8-10m | ||||||
| NetW eight | 5.0kg | 5.1kg | 5.2kg | 5.3kg | 5.4kg | 8.2kg | 8.4kg | ||||||
| GrossW eight | 6.1kg | 6.2kg | 6.3kg | 6.4kg | 6.5kg | 10.1kg | 10.3kg | ||||||
| Packing Size(m m ) | 780*350*185 | 780*350*185 | 780*350*185 | 780*350*185 | 780*350*185 | 965*420*195 | 965*420*195 | ||||||
| Code | ZHSL-14-50 | ZHSL-14-50 | ZHSL-14-50 | ZHSL-14-50 | ZHSL-14-50 | ZHSL-14-120 | ZHSL-14-120 | |||||
| L (m m ) | 738 | 738 | 738 | 738 | 738 | 922 | 922 | |||||
| W (m m ) | 289 | 289 | 289 | 289 | 289 | 362 | 362 | |||||
| H (m m ) | 118 | 118 | 118 | 118 | 118 | 140 | 140 | |||||
Product Description
Thisseriesisa high-perform ance streetlighting available in tw o sizes. The lum inaire ism anufactured from high pressure die-casting alum inum . Itshallhave a led efficacy up to 120 lm /w and w illbe capable ofproducing
up to 18000 lum inaire lum ensat4000K finished in Grey orblack asstandard.
