Product Details:
Payment & Shipping Terms:
|
| Power: | 150w | Material: | Die-Casing Aluminium |
|---|---|---|---|
| LED Lifetime: | 50000h | IP: | 66 |
| Pole Size: | 60mm | Colour: | Black And Grey |
| Product Size: | 922*362*140mm | IK: | 08 |
| High Light: | outdoor light housing,street light housing |
||

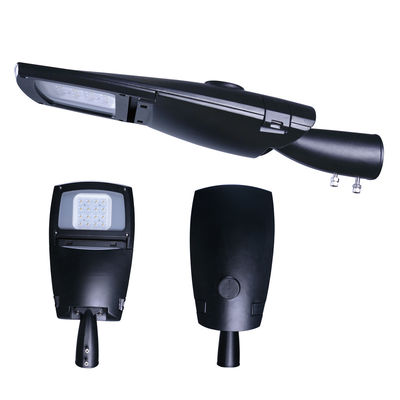

LED street light fixtures YASL-14
Installing Ways:
Both Horizontal and Vertical available
and adjustable angle -15 °to 15 °
Material:
Die casting body
tempered glass with PC lens
Product Specification: This series is a high-performance street lighting available in three sizes.The luminaire is manufactured from high pressure die-casting aluminum.It shall have a led efficacy up to 120 lm/w and will be capable of producingup to 18000 luminaire lumens at 4000K finished in Grey or black as standard.| Model | ZHSL-14-40 | ZHSL-14-80 | ZHSL-14-120 |
| Power | 60W Max | 100W Max | 150W Max |
| Color Temperature | 4000K | 4000K | 4000K |
| Efficiency | ＞120LM/W | ＞120LM/W | ＞120LM/W |
| Voltage | AC100-240V | AC100-240V | AC100-240V |
| Power Factor | PF≥0.95 | PF≥0.95 | PF≥0.95 |
| CRI(Ra) | Ra≥70 | Ra≥70 | Ra≥70 |
| Ambient Temperature | -40-50℃ | -40-50℃ | -40-50℃ |
| Ambient Humidity | 20%-90%RH | 20%-90%RH | 20%-90%RH |
| Lifetime(hrs) | 50000 | 50000 | 50000 |
| Installation Pipe Diameter | Φ60mm | Φ60mm | Φ70mm |
| Installation Height | 6-8m | 8-10m | 8-10m |
| Net Weight | 4kgs | 5.4kg | 8.2kg |
| Gross Weight | 4.6kgs | 6.5kg | 10.1kg |
| Packing Size(mm) | 670*320*185 | 780*350*185 | 965*420*195 |
Line Drawing
