ZHSL-03-40 40W LED STREET LIGHT EMPTY HOUSING SOLAR ALL IN ONE SMD OUTDOOR

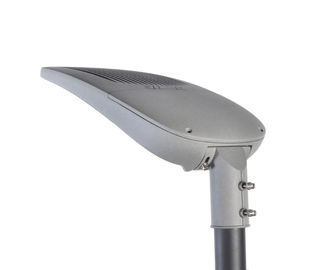

Large Image : ZHSL-03-40 40W LED STREET LIGHT EMPTY HOUSING SOLAR ALL IN ONE SMD OUTDOOR

Product Details:

Place of Origin:	NINGBO,CHINA
Brand Name:	DIE-CASTING MAN
Certification:	CE,ROHS
Model Number:	ZHSL-03-40

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	negotiation
Packaging Details:	1pc/foam/ctn
Delivery Time:	30-40days
Supply Ability:	10000pcs/month

Contact Now

Detailed Product Description

Item:	ZHSL-03-40	Material:	Aluminium
Wattage:	40W	LED Lifetime:	5000h
Protection Grade:	IP66	Pole Size:	50mm
Colour:	Black And Grey	Product Size:	500210151mm
Highlight:	outdoor light housing , street light housing

ZHSL-03 Family Product Spencification

Product Code	ZHSL-03-40	ZHSL-03-50	ZHSL-03-100	ZHSL-03-200
Input Wattage	40W	60W	120W	200W
Color Temperature	3000-6500K	3000-6500K	3000-6500K	3000-6500K
Luminous Flux	3000-3600lm	6600-7200lm	13200-14400lm	22000-25000lm
Input Voltage	AC90-305V	AC90-305V	AC90-305V	AC90-305V
Frequency Range	50/60Hz	50/60Hz	50/60Hz	50/60Hz
Power Factor	PF≥0.95	PF≥0.95	PF≥0.95	PF≥0.95
Color rendering index	Ra≥70	Ra≥70	Ra≥70	Ra≥70
Temperature of working condition	-40-50℃	-40-50℃	-40-50℃	-40-50℃
Humidity of working condition	20%-90%RH	20%-90%RH	20%-90%RH	20%-90%RH
LED Lifetime	50000h	50000h	50000h	50000h
Protection Grade	IP66	IP66	IP66	IP66
Installation Pipe Diameter	Φ50mm	Φ60mm	Φ60mm	Φ60mm
Installation Height	4-6m	4-8m	8-12m	10-14m
Net Weight	3.7kgs	5.5kgs	7.5kgs	11.8kgs
Gross Weight	4.0kgs	6.0kgs	8.0kgs	12.5kgs
Packing Size(mm)	570240255	680295150	750355165	915415185
Product Size(mm)	500210151	618260187	684300185	850365198

Photometric Data

ZHSL-03-40 40W LED STREET LIGHT EMPTY HOUSING SOLAR ALL IN ONE SMD OUTDOOR 0

Line Drawing

ZHSL-03-40 40W LED STREET LIGHT EMPTY HOUSING SOLAR ALL IN ONE SMD OUTDOOR 1

ZHSL-03-40 40W LED STREET LIGHT EMPTY HOUSING SOLAR ALL IN ONE SMD OUTDOOR 2

Product Description

*This series is a high-performance street lighting available in three size

*The luminaire is manufactured from high pressure die-casting aluminum

*It shall have a led efficiency up to 120lm/w and will be capable of producing up to 18000luminair lumens at 4000K finished in grey or black as standard.

ZHSL-03-40 40W LED STREET LIGHT EMPTY HOUSING SOLAR ALL IN ONE SMD OUTDOOR 3

ZHSL-03-40 40W LED STREET LIGHT EMPTY HOUSING SOLAR ALL IN ONE SMD OUTDOOR 4

ZHSL-03-40 40W LED STREET LIGHT EMPTY HOUSING SOLAR ALL IN ONE SMD OUTDOOR 5
