NingBo Die-Casting Man Technology Co.,ltd.
Home ProductsLED Street Light Housing

ZHSL-03-200 200W LED STREET LIGHT EMPTY HOUSING SOLAR ALL IN ONE SMD OUTDOOR

China NingBo Die-Casting Man Technology Co.,ltd. certification
China NingBo Die-Casting Man Technology Co.,ltd. certification
Gold supplier, save me a lot of time to do the purchasing! And always giving professional suggestion, help me a lot in business! Thanks!

—— Ian Nicholas

Good quality products, low price and high quality services. Worthy trust and recommending business partner.

—— Michal Jussize

Hi Jenny, I have received the cargo. I want to say that we are very satisfied with your product and exelent service. I want also make a new order.

—— Ryan Retherford

I have been cooperating with Die casting man for 3 years. they supplied me thousands pieces of street light housing, I am glad to work with them because of the reliable quality and competitive price. A good experience to me.

—— Diana

I'm Online Chat Now

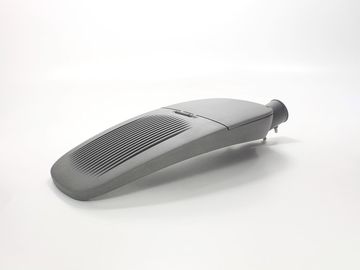

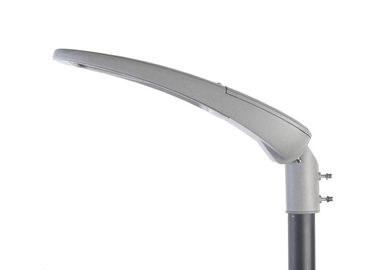

ZHSL-03-200 200W LED STREET LIGHT EMPTY HOUSING SOLAR ALL IN ONE SMD OUTDOOR

ZHSL-03-200 200W LED STREET LIGHT EMPTY HOUSING SOLAR ALL IN ONE SMD OUTDOOR
ZHSL-03-200 200W LED STREET LIGHT EMPTY HOUSING SOLAR ALL IN ONE SMD OUTDOOR ZHSL-03-200 200W LED STREET LIGHT EMPTY HOUSING SOLAR ALL IN ONE SMD OUTDOOR ZHSL-03-200 200W LED STREET LIGHT EMPTY HOUSING SOLAR ALL IN ONE SMD OUTDOOR

Large Image :  ZHSL-03-200 200W LED STREET LIGHT EMPTY HOUSING SOLAR ALL IN ONE SMD OUTDOOR

Product Details:
Place of Origin: NINGBO,CHINA
Brand Name: DIE-CASTING MAN
Certification: CE,ROHS
Model Number: ZHSL-03-200
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: 1pc/foam/ctn
Delivery Time: 30-40days
Supply Ability: 10000pcs/month
Detailed Product Description
Item: ZHSL-03-200 Material: Aluminium
Wattage: 120W LED Lifetime: 5000h
Protection Grade: IP66 Pole Size: 60mm
Colour: Black And Grey Product Size: 850*365*198mm
High Light:

outdoor light housing

,

street light housing

ZHSL-03 Family Product Spencification



Product Code ZHSL-03-40 ZHSL-03-50 ZHSL-03-100 ZHSL-03-200
Input Wattage 40W 60W 120W 200W
Color Temperature 3000-6500K 3000-6500K 3000-6500K 3000-6500K
Luminous Flux 3000-3600lm 6600-7200lm 13200-14400lm 22000-25000lm
Input Voltage AC90-305V AC90-305V AC90-305V AC90-305V
Frequency Range 50/60Hz 50/60Hz 50/60Hz 50/60Hz
Power Factor PF≥0.95 PF≥0.95 PF≥0.95 PF≥0.95
Color rendering index Ra≥70 Ra≥70 Ra≥70 Ra≥70
Temperature of working condition -40-50℃ -40-50℃ -40-50℃ -40-50℃
Humidity of working condition 20%-90%RH 20%-90%RH 20%-90%RH 20%-90%RH
LED Lifetime 50000h 50000h 50000h 50000h
Protection Grade IP66 IP66 IP66 IP66
Installation Pipe Diameter Φ50mm Φ60mm Φ60mm Φ60mm
Installation Height 4-6m 4-8m 8-12m 10-14m
Net Weight 3.7kgs 5.5kgs 7.5kgs 11.8kgs
Gross Weight 4.0kgs 6.0kgs 8.0kgs 12.5kgs
Packing Size(mm) 570*240*255 680*295*150 750*355*165 915*415*185
Product Size(mm) 500*210*151 618*260*187 684*300*185 850*365*198





Photometric Data



ZHSL-03-200 200W LED STREET LIGHT EMPTY HOUSING SOLAR ALL IN ONE SMD OUTDOOR 0

Line Drawing

ZHSL-03-200 200W LED STREET LIGHT EMPTY HOUSING SOLAR ALL IN ONE SMD OUTDOOR 1

ZHSL-03-200 200W LED STREET LIGHT EMPTY HOUSING SOLAR ALL IN ONE SMD OUTDOOR 2



Product Description



*This series is a high-performance street lighting available in three size



*The luminaire is manufactured from high pressure die-casting aluminum



*It shall have a led efficiency up to 120lm/w and will be capable of producing up to 18000luminair lumens at 4000K finished in grey or black as standard.







ZHSL-03-200 200W LED STREET LIGHT EMPTY HOUSING SOLAR ALL IN ONE SMD OUTDOOR 3

ZHSL-03-200 200W LED STREET LIGHT EMPTY HOUSING SOLAR ALL IN ONE SMD OUTDOOR 4

ZHSL-03-200 200W LED STREET LIGHT EMPTY HOUSING SOLAR ALL IN ONE SMD OUTDOOR 5
