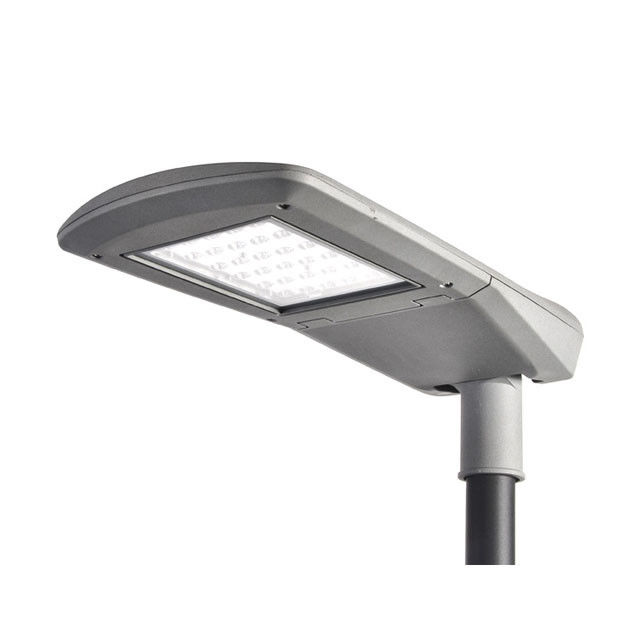

60mm pole nw aluminum industrial led street light housing IP66 IK08

China NingBo Die-Casting Man Technology Co.,ltd. certification
China NingBo Die-Casting Man Technology Co.,ltd. certification
Gold supplier, save me a lot of time to do the purchasing! And always giving professional suggestion, help me a lot in business! Thanks!

—— Ian Nicholas

Good quality products, low price and high quality services. Worthy trust and recommending business partner.

—— Michal Jussize

Hi Jenny, I have received the cargo. I want to say that we are very satisfied with your product and exelent service. I want also make a new order.

—— Ryan Retherford

I have been cooperating with Die casting man for 3 years. they supplied me thousands pieces of street light housing, I am glad to work with them because of the reliable quality and competitive price. A good experience to me.

—— Diana

I'm Online Chat Now

60mm pole nw aluminum industrial led street light housing IP66 IK08

60mm pole nw aluminum industrial led street light housing IP66 IK08
60mm pole nw aluminum industrial led street light housing IP66 IK08 60mm pole nw aluminum industrial led street light housing IP66 IK08 60mm pole nw aluminum industrial led street light housing IP66 IK08

Large Image :  60mm pole nw aluminum industrial led street light housing IP66 IK08

Product Details:

Place of Origin: NINGBO,CHINA
Brand Name: DIE-CASTING MAN
Certification: CE,ROHS
Model Number: SL-11B-120

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: 1pc/foam/ctn
Delivery Time: 30-40days
Supply Ability: 10000pcs/month
Detailed Product Description
Item: ZHSL-11B-120 Material: Aluminium
Wattage: 120W LED Lifetime: 5000h
Protection Grade: IP66 Pole Size: 60mm
Colour: Black And Grey Product Size: 78.5*323*18cm
High Light:

street light housing

,

led street light enclosure

High Efficient Aluminium LED Street Light Housing IP66 IK08 Complete Lamp



Product Specification



*Item No.:ZHSL-11B-120



*Input Wattage:120W



*Color Temperature:3000-6500K



*Led Lifetime:50000h



*NW/GW:8.8/9.3kgs



*Packing Size:85*37*21.5cm



Product Description



*ZHSL-11 family is a high-performance street light available in three size



*ZHSL-11B-120 is the biggest one



*Product Size:785*320*180mm



*Finish:power coating,general colour will be :double grey/sandy black/matt silver



Product Material



*Die casting aluminum body



*Ultra clear tempered glass and PC lens



 Product Specification



Product Code ZHSL-11B-40 ZHSL-11B-50 ZHSL-11B-120
Input Wattage 40W 60W 120W
Color Temperature 3000-6500K 3000-6500K 3000-6500K
Luminous Flux 4400-4800lm 6900-7500lm 13800-15600lm
Input Voltage AC90-305V AC90-305V AC90-305V
Frequency Range 50/60Hz 50/60Hz 50/60Hz
Power Factor PF≥0.95 PF≥0.95 PF≥0.95
Color rendering index Ra≥70 Ra≥70 Ra≥70
Temperature of working condition -40-50℃ -40-50℃ -40-50℃
Humidity of working condition 20%-90%RH 20%-90%RH 20%-90%RH
LED Lifetime 50000h 50000h 50000h
Protection Grade IP66 IP66 IP66
Installation Pipe Diameter Φ60mm Φ60mm Φ60mm
Installation Height 4-8m 6-10m 8-12m
Net Weight 3.5kgs 5.3kgs 8.8kgs
Gross Weight 3.9kgs 5.8kgs 9.3kgs
Packing Size(mm) 600*270*155 695*285*130 850*370*215
Product Size(mm) 581*220*157 655*256*162 785*320*180





Line Drawing

60mm pole nw aluminum industrial led street light housing IP66 IK08 0

60mm pole nw aluminum industrial led street light housing IP66 IK08 1









Equipment

ZHSL-19-50  50W  ALUMINIUM OUTDOOR LED STREET LIGHT HOUSING

Exihibition

 60mm pole nw aluminum industrial led street light housing IP66 IK08 3





Company profile



* With more than 2 decades years experience.



* Completed lighting production equipment & workshop: semi-automatic die casting machines, CNC drilling treatment, Sandblast machine, Powder spraying line, Lamps assembly line, Aging test line.



* Offering led complete-set lamp and empty housing, including led street light / led solar street light /led high bay light / led high pole light / led garden light / led urban light.



* ISO9001 quality control system.



* 5-7years guarantee





FAQ



1. How can I make order?

1)Pls send us the inquiry or contact with us if you have any questions before order. we will reply you ASAP.



2)We will issue the PI according to your specific requirement.



3)The goods will be sent out upon getting full payment.



2. What is the MOQ?

Any order quantity is welcome,mixed or samples order is also accepted.



3. How about the Delivery Time?

30 days after order deposit reaching us.3-7days for sample order.



4. What's your Warranty Policy?

60 Months' warranty is provided.



5. What's your Payment Method?

We usually accept the payment methods including PayPal, TT, or Western Union.

30% deposit in advance and balance before shipping. the buyer can choose which payment ways that you accept.



6. What's your Shipping Method?

We can delivery the goods by sea, air, express.it 's depend on your requirements.
