Larger 150W Urban Led Lighting ZHUB-02-120 580*522*390mm CE Approval

China NingBo Die-Casting Man Technology Co.,ltd. certification
China NingBo Die-Casting Man Technology Co.,ltd. certification
Gold supplier, save me a lot of time to do the purchasing! And always giving professional suggestion, help me a lot in business! Thanks!

—— Ian Nicholas

Good quality products, low price and high quality services. Worthy trust and recommending business partner.

—— Michal Jussize

Hi Jenny, I have received the cargo. I want to say that we are very satisfied with your product and exelent service. I want also make a new order.

—— Ryan Retherford

I have been cooperating with Die casting man for 3 years. they supplied me thousands pieces of street light housing, I am glad to work with them because of the reliable quality and competitive price. A good experience to me.

—— Diana

I'm Online Chat Now

Larger 150W Urban Led Lighting ZHUB-02-120 580*522*390mm CE Approval

Larger 150W Urban Led Lighting ZHUB-02-120 580*522*390mm CE Approval
Larger 150W Urban Led Lighting ZHUB-02-120 580*522*390mm CE Approval Larger 150W Urban Led Lighting ZHUB-02-120 580*522*390mm CE Approval Larger 150W Urban Led Lighting ZHUB-02-120 580*522*390mm CE Approval

Large Image :  Larger 150W Urban Led Lighting ZHUB-02-120 580*522*390mm CE Approval

Product Details:
Place of Origin: ZHEJIANG, CHINA
Brand Name: Die Casting Man
Certification: CE ROHS
Model Number: UB-02 -120
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: 1pc / polyester bag / carton with styrofoam protection
Delivery Time: 5-7days for sampling, 30-35days for mass production
Payment Terms: Western Union, L/C, T/T
Supply Ability: 100000 pcs per month
Detailed Product Description
Material: Aluminium Wattage: 150W
Color Tem。: 3000-6500K Efficiency: 120 Lm/w
Power Factor: ≥ 0.95 CCT: ≥70
Led Lifetime: 50000h Protection Grade: IP65
Warranty: 5 Years NW/GW: 13/14kgs
High Light:

urban solar garden lights

,

garden lighting fixtures

Larger 150W Urban Led Lighting ZHUB-02-120 580*522*390mm CE Approval



Product Description

*ZHUB-02  family is a high-performance street light available in two size

*ZHUB-02-120 is the larger one

*The luminous will be at least 120lm/w

*Product Size:580*522*390mm

*Finish:power coating,general colour will be :double grey/sandy black/matt silver



Product Specification

*Item No.:ZHUB-02-120

*Input Wattage:150W

*Color Temperature:3000-6500K

*Color Rendering Index:Ra≥70

*Led Lifetime:50000h

*Protection Grade:IP66

*NW/GW:13/14kgs

*Packing Size:57*70*16.5cm



Product Material

*Die casting aluminum body

*Ultra clear tempered glass and PC lens



Why choose us

1.Die-casting Man has more than 21 years experience in manufactuering the outdoor lighting.

2.We have our own die-casting machine,CNC machine,spray line,assembling line.In this way,will be easy to control the quality.

3.And we also have our own tooling shop and develop department,can help customer develop their own products.



ZHUB-02 Family Product Specification



Product Code ZHUB-02-50 ZHUB-02-120
Input Wattage 80W 150W
Color Temperature 3000-6500K 3000-6500K
Luminous Flux 9200-10400lm 17250-19500lm
Input Voltage AC90-305V AC90-305V
Frequency Range 50/60Hz 50/60Hz
Power Factor PF≥0.95 PF≥0.95
Color rendering index Ra≥70 Ra≥70
Temperature of working condition -40-50℃ -40-50℃
Humidity of working condition 20%-90%RH 20%-90%RH
LED Lifetime 50000h 50000h
Protection Grade IP66 IP66
Installation Height 4-8m 6-12m
Net Weight 9.0kgs 12.5kgs
Gross Weight 9.5kgs 13.8kgs
Packing Size(mm) 490*590*155 570*700*165
Product Size(mm) 430*416*191 580*522*390





Photometric Data



Larger 150W Urban Led Lighting ZHUB-02-120 580*522*390mm CE Approval 0

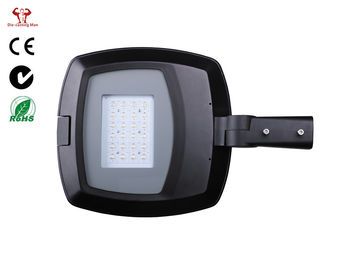

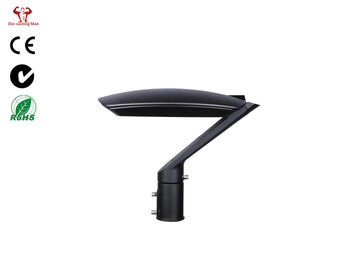

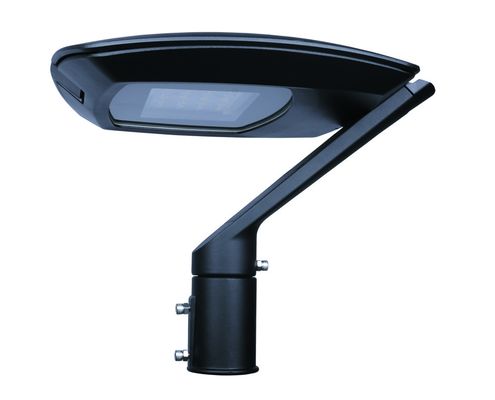

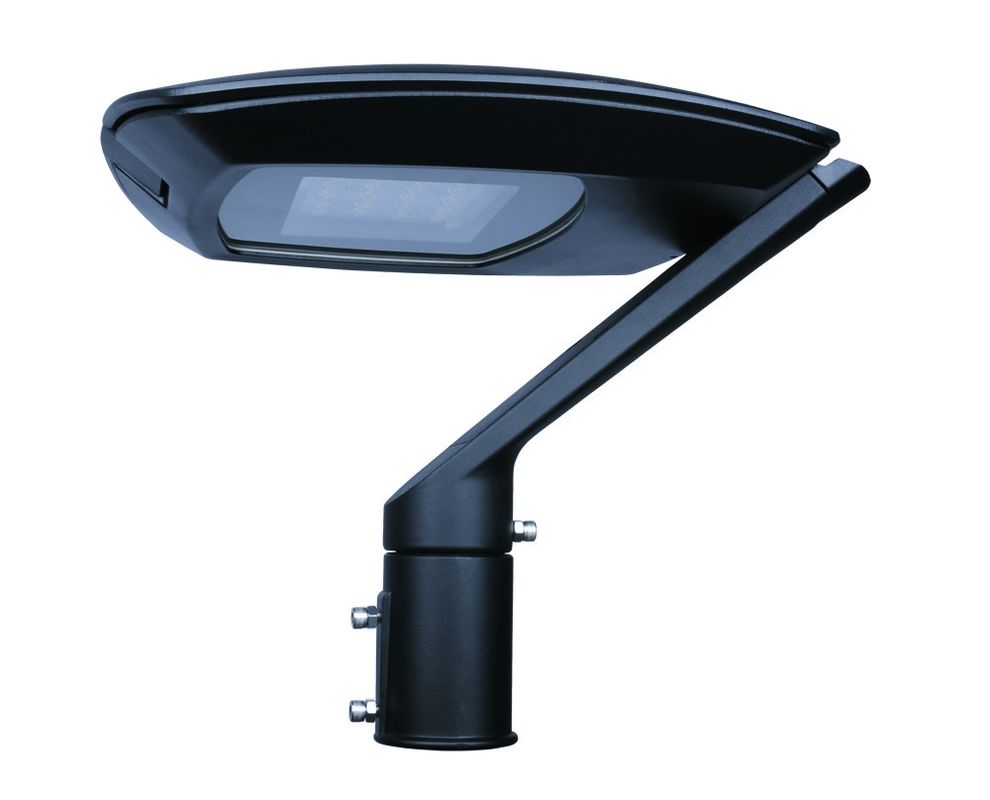

Product Photo



Larger 150W Urban Led Lighting ZHUB-02-120 580*522*390mm CE Approval 1



Larger 150W Urban Led Lighting ZHUB-02-120 580*522*390mm CE Approval 2



Equipment

ZHSL-14-80 Empty Housing LED Street Light Fixtures 60mm Pole With Die - Casing Aluminium



Company profile

* A professional origin die casting manufacturer of led outdoor light.

* With more than 2 decades years experience.

* 10000+ square meter plant, 120 employees, located in China Ninghai Mould City

* Completed lighting production equipment & workshop: semi-automatic die casting machines, CNC drilling treatment, Sandblast machine, Powder spraying line, Lamps assembly line, Aging test line.

* Full facilities of outdoor lighting testing for IP/ IK/ Salt Spray / Thermal / IES files, etc.

* Offering led complete-set lamp and empty housing, including led street light / led solar street light /led high bay light / led high pole light / led garden light / led urban light.

* 6 elite designers & engineers, developing 8-12 new styles every year.

* ISO9001 quality control system.

* CE, RoHS, TUV certificates.

* 5-7years guarantee

* ODM and OEM service are both available to customers domestic and overseas.



FAQ

Q1. What is your terms of payment?
A:Usually,we accept T/T,irrevocable L/C at sight.For regular orders,we prefer 30% in advance,70% against the of B/L.For long term business relations, we have more advantage terms for payment.
Q2. What is your terms of delivery?
A: We accept FOB,CIF,etc. You can choose the one which is the most convenient or cost effective for you.
Q3: What is the lead time?
A:It usually takes 25 to 35 days after sample confirmation and receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. If the item was non standard, we have to consider extra 10-15days for tooling/mould made.
Q4: How about tooling Charge?
A: Tooling charge only charge once when first order, all future orders would not charge again even tooling repair or under maintance.
Q5. What is your sample policy?
A: We are glad to send ip65 led light samples for your inspection.Standard samples can be free, but the clients need to cover the freight cost.
Q6. Can you produce according to the samples or drawings?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q7: How to confirm the quality with us before starting to produce?
1) We can provide ip65 led light samples and you can choose one or more, and then we make the quality according to that. 2) Send us your samples, and we will make it according to your quality.
Q8: How to solve the quality problems after sales?
A: Take photos of the problems and send to us. We will make a satisfied solution for you within three days after we confirm the problems.
Q9. What is your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the goods by your logo after getting your authorization letters.
Q10. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance tothe standards.
