NingBo Die-Casting Man Technology Co.,ltd.
Home ProductsLED Street Light Module

Outdoor IP66 IK08 150 Watt Led Street Light

China NingBo Die-Casting Man Technology Co.,ltd. certification
China NingBo Die-Casting Man Technology Co.,ltd. certification
Gold supplier, save me a lot of time to do the purchasing! And always giving professional suggestion, help me a lot in business! Thanks!

—— Ian Nicholas

Good quality products, low price and high quality services. Worthy trust and recommending business partner.

—— Michal Jussize

Hi Jenny, I have received the cargo. I want to say that we are very satisfied with your product and exelent service. I want also make a new order.

—— Ryan Retherford

I have been cooperating with Die casting man for 3 years. they supplied me thousands pieces of street light housing, I am glad to work with them because of the reliable quality and competitive price. A good experience to me.

—— Diana

I'm Online Chat Now

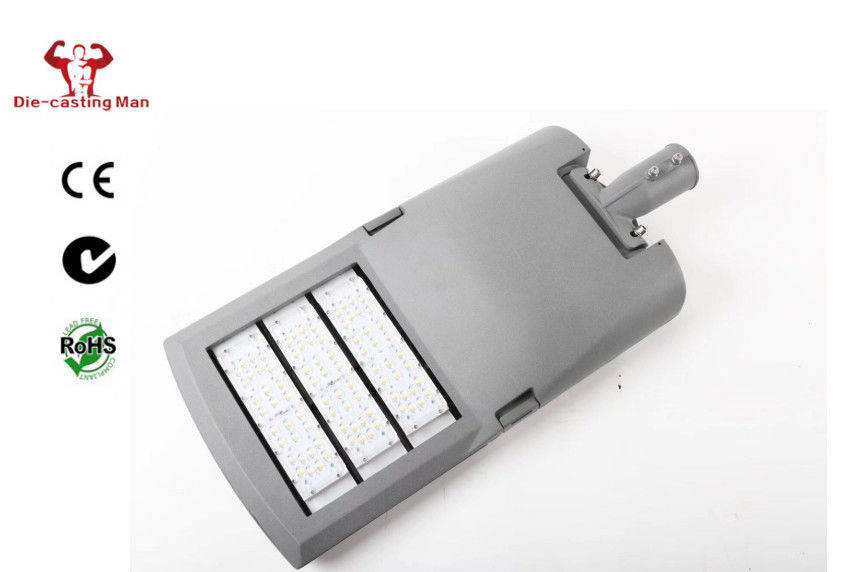

Outdoor IP66 IK08 150 Watt Led Street Light

Outdoor IP66 IK08 150 Watt Led Street Light
Outdoor IP66 IK08 150 Watt Led Street Light Outdoor IP66 IK08 150 Watt Led Street Light

Large Image :  Outdoor IP66 IK08 150 Watt Led Street Light

Product Details:
Place of Origin: CHINA
Brand Name: Die casting man
Certification: UL;CE;ROHS
Model Number: YASL-20-150
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: foam filing/pc
Delivery Time: 40 days base on order quantity
Supply Ability: 10000PCS/Month.
Detailed Product Description
Wattage: 150W IP: 66
CRI: >70 LED Color: WW/NW/CW
Input Voltage: AC85 - 265V Frequency Range: 50 - 60Hz
Working Ambient Temperature: -30℃ - 50℃ Working Ambient Humidity: 10% - 90%
High Light:

IK08 150 Watt Led Street Light


IP66 150 Watt Led Street Light


IP66 150w street light

Newest 300W Outdoor LED Street Light Module Optic IP66 for Industrial Area ZHSL-20




ITEM NO. ZHSL-20-100 ZHSL-20-200 ZHSL-20-300
LED Quantity 84pcs 168pcs 252pcs
Rated Power 100W 200W 300W
Color Temperature 2700-6500K 2700-6500K 2700-6500K
Initial Luminous Flux 12000LM 24000LM 36000LM
Input Voltage AC100-240V AC100-240V AC100-240V
Frequency Range 50-60Hz 50-60Hz 50-60Hz
Power Factor PF≥0.95 PF≥0.95 PF≥0.95
Color Rendering Index Ra>70 Ra>70 Ra>70
Temperature Working Condition -40℃ - 50℃ -40℃ - 50℃ -40℃ - 50℃
Humidity of Working Condition 20-90% 20-90% 20-90%
LED Lifetime 50000h 50000h 50000h
Protection Grade IP66 IP66 IP66
Installation Pipe Diameter 60mm 60mm 60mm
Installation Height 8-10m 8-10m 8-10m
Product Dimension 696*350*120mm 787*350*120mm 871*350*120mm
Net Weight 6 kgs 7kgs 8kgs
Gross Weight 6.6kgs 7.7kgs 8.8kgs
Packing Size 74*39*16cm 91*39*16cm


Outdoor IP66 IK08 150 Watt Led Street Light 0




Motorways,Major roads,minor roads,roundabouts,crossing and industrial areas.


Outdoor IP66 IK08 150 Watt Led Street Light 1

Outdoor IP66 IK08 150 Watt Led Street Light 2

Our service:

your inquiries will be replied in 24 hours in our working days.

  • 3years warranty under normal use.
  • Professional design provided.
  • Timely delivery guaranteed.


Q1. What is your terms of payment?
A:Usually,we accept T/T,irrevocable L/C at sight.For regular orders,we prefer 30% in advance,70% against the of B/L.For long term business relations, we have more advantage terms for payment.

Q2. What is your terms of delivery?
A: We accept FOB,CIF,etc. You can choose the one which is the most convenient or cost effective for you.

Q3: What is the lead time?
A:It usually takes 25 to 35 days after sample confirmation and receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. If the item was non standard, we have to consider extra 10-15days for tooling/mould made.

Q4: How about tooling Charge?
A: Tooling charge only charge once when first order, all future orders would not charge again even tooling repair or under maintance.

Q5. What is your sample policy?
A: We are glad to send ip65 led light samples for your inspection.Standard samples can be free, but the clients need to cover the freight cost.

Q6. Can you produce according to the samples or drawings?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q7: How to confirm the quality with us before starting to produce?
1) We can provide ip65 led light samples and you can choose one or more, and then we make the quality according to that. 2) Send us your samples, and we will make it according to your quality.

Q8: How to solve the quality problems after sales?
A: Take photos of the problems and send to us. We will make a satisfied solution for you within three days after we confirm the problems.

Q9. What is your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the goods by your logo after getting your authorization letters.
