 | Product Details:
 Payment & Shipping Terms:
 |
| Manufacturer: | Die Casting Man | Material: | Die-casting Aluminum |
|---|---|---|---|
| CRI: | >70 | Fixture Color: | Grey |
| Input Voltage: | AC85 - 265V | Working Ambient Temperature: | -30℃ - 50℃ |
| IP: | 66 | Wattage: | 100W-300W |
| Highlight: | 300w ufo led high bay light,CRI70 ufo led high bay light,300w ufo led lights | ||

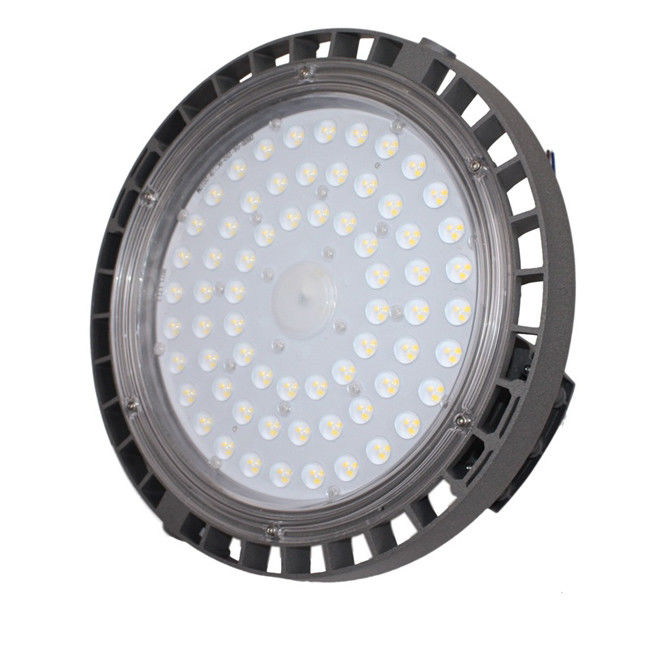

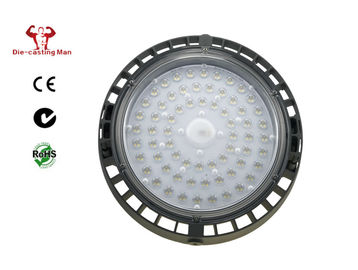

150W LED High Bay Lights fixtures Die-casting Aluminium IP66 for industrial Area with 5 Size from 100 Watt to 300 Watt

Product Description:

| Code | ZHHB-04-100 | ZHHB-04-150 | ZHHB-04-200 | ZHHB-04-250 | ZHHB-04-300 |
| Power | 100W | 150W | 200W | 250W | 300W |
| PC lens degree | 30°60°90° | 30°60°90° | 30°60°90° | 30°60°90° | NO |
| Color Temperature | 3000-6000K | 3000-6000K | 3000-6000K | 3000-6000K | 3000-6000K |
| Efficiency | >120LM/W | >120LM/W | >120LM/W | >120LM/W | >120LM/W |
| Voltage | AC90-305V 50/60Hz | AC90-305V 50/60Hz | AC90-305V 50/60Hz | AC90-305V 50/60Hz | AC90-305V 50/60Hz |
| Power Factor | PF≥0.95 | PF≥0.95 | PF≥0.95 | PF≥0.95 | PF≥0.95 |
| CRI(Ra) | Ra≥70 | Ra≥70 | Ra≥70 | Ra≥70 | Ra≥70 |
| Ambient Temperature | -20-45℃ | -20-45℃ | -20-45℃ | -20-45℃ | -20-45℃ |
| Ambient Humidity | 20%-90%RH | 20%-90%RH | 20%-90%RH | 20%-90%RH | 20%-90%RH |
| Lifetime(hrs) | 50000 | 50000 | 50000 | 50000 | 50000 |
| IP Rate | IP65 | IP65 | IP65 | IP65 | IP65 |
| Light Angle | 60/90/120° | 60/90/120° | 60/90/120° | 60/90/120° | 60/90/120° |
| Net Weight | 3.14kg | 3.3kg | 3.9kg | 3.9kg | 5.9kg |
| Gross Weight | 3.8kg | 4.0kg | 4.8kg | 4.8kg | 6.7kg |
| Packing Size | 380*380*185mm | 380*380*185mm | 430*430*190mm | 430*430*190mm | 560*564*237mm |

LED Engine Module

· LED life time of 30,000+ hours
· High power integrated packaging LED chips, 120° beam spread available
· Minimum CRI of 70, custom CRI available
· Operating temp: -30º C to +60º C
· No toxic chemicals / ROHS compliant
· Low Tj for long life, low lumen depreciation
· CE certified, meets ROHS standards
· Eligible for Rebates, Design Lights Consortium® Qualified*
· 50-80% energy savings
· Manufactured in the China
·                     Standard distribution is Type V, others distributions available
Electrical
· Standard AC input of 85-265v VAC, up to 480v available
· EMI filter: 47CFR, part 2, part 15
· Power factor: >0.9
· Total harmonic distortion: <20%
· Surge protection: IEC/EN 61000-4-5 EMC test standard
·                     Licensed electrician required for installation
Housing
· Rugged, fully sealed, die-cast aluminum housing
· UV-resistant, multi-layer, architectural color, powder coat finish
·                     High impact, heat resistant, tempered lens
Energy Control Options
· Motion detection available
· Photo sensors available
