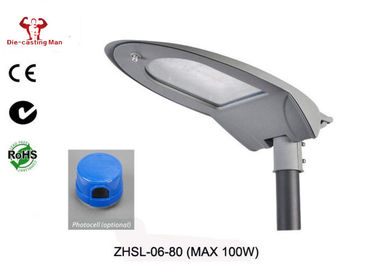

Road / Industrial Area LED Street Light Housing 100w Wattage Die Casting Aluminum Body

Road / Industrial Area LED Street Light Housing 100w Wattage Die Casting Aluminum Body
Road / Industrial Area LED Street Light Housing 100w Wattage Die Casting Aluminum Body Road / Industrial Area LED Street Light Housing 100w Wattage Die Casting Aluminum Body Road / Industrial Area LED Street Light Housing 100w Wattage Die Casting Aluminum Body

Large Image :  Road / Industrial Area LED Street Light Housing 100w Wattage Die Casting Aluminum Body

Product Details:
Place of Origin: China
Brand Name: Die Casting Man/OEM
Certification: CE,ROHS, UL,SAA
Model Number: ZHSL-05-80
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: Carton box with foam
Delivery Time: 7-30 days base on order quantity
Payment Terms: By T/T 30% in advance and 70% after shipment EXW/FOB NINGBO, Western Union
Supply Ability: 10000PCS/Month.
Contact Now
Detailed Product Description
Manufacturer: Ninghai Zhouhua Die Casting Co.,Ltd Material: GB102 Aluminum
Wattage: 100w Fixture Color: Light Grey
LED Color: WW/NW/CW CRI: >70
Input Voltage: AC85 - 265V Frequency Range: 50 - 60Hz
Working Ambient Humidity: 10% - 90% Working Ambient Temperature: -30℃ - 50℃
Highlight:

outdoor light housing

,

street light housing

Universal Used Die Casting Aluminum LED Street Light Fixtures For Road & Industrial Area three size IP65



ZHSL-06

Installing Ways: Both Horizontal and Vertical available and adjustable angle-10°to 10°
Material:Die casting Aluminum body.
Ultra clear tempered glass



Product Details

Product Code ZHSL-06-40 ZHSL-06-80
Input Wattage 50W 100W
Color Temperature 3000-6500K 3000-6500K
Luminous Flux 5250-5500lm 10500-12500lm
Input Voltage AC90-305V AC90-305V
Frequency Range 50/60Hz 50/60Hz
Power Factor PF≥0.95 PF≥0.95
Color rendering index Ra≥70 Ra≥70
Temperature of Working Condition 40-50℃ -40-50℃
Humidity of Working Condition 20%-90%RH 20%-90%RH
LED Lifetime 50000h 50000h
Protection Grade IP66 IP66
Installation Pipe Diameter 50-60mm 50-60mm
Installation Height 4-8m 4-8m
Net Weight 3.7kg 6.5kg
Gross Weight 4.0kg 7.0kg
Packing Size(mm) 560×265×145 700×350×160




Application:

Motorways , Major roads, minor roads, roundabouts, crossings and industrial areas.



Available housing colors: Black, Grey, White.



Note: Additional wattages and configurations available upon request. Specifications are subject to change without notice.

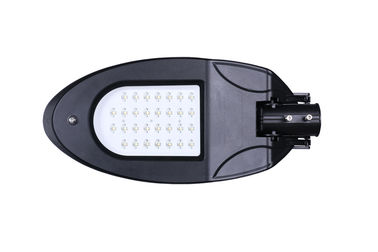

Road / Industrial Area LED Street Light Housing 100w Wattage Die Casting Aluminum Body 0

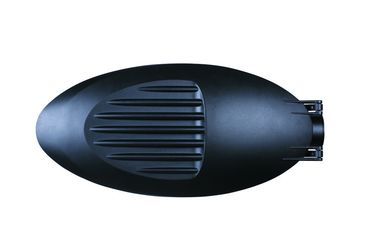

Road / Industrial Area LED Street Light Housing 100w Wattage Die Casting Aluminum Body 1
