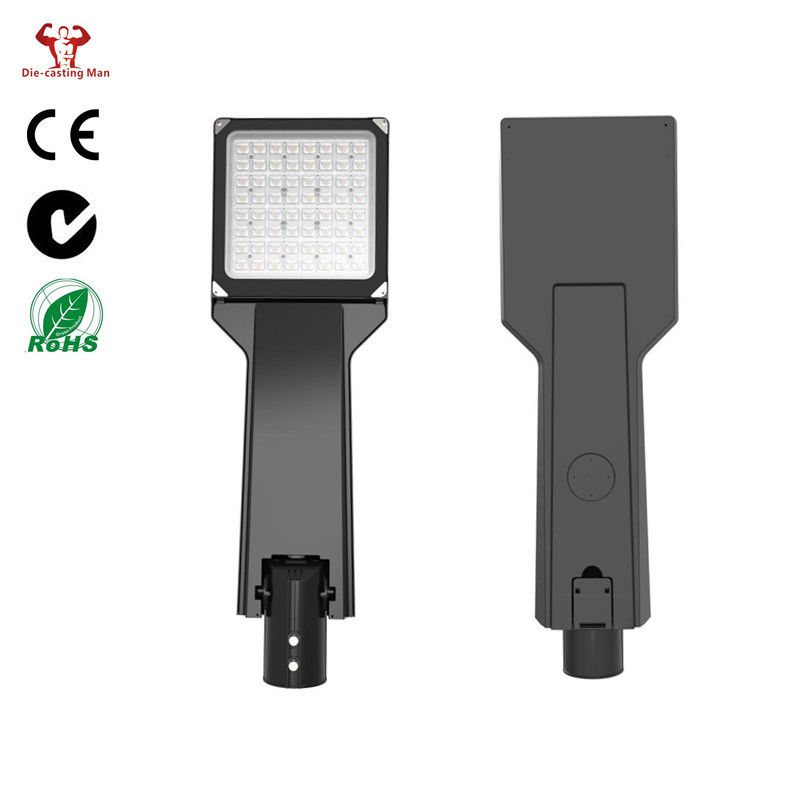

Aluminium 120lm/W 6500K IP66 150W 60mm Street Pole Light

Aluminium 120lm/W 6500K IP66 150W 60mm Street Pole Light
Aluminium 120lm/W 6500K IP66 150W 60mm Street Pole Light Aluminium 120lm/W 6500K IP66 150W 60mm Street Pole Light Aluminium 120lm/W 6500K IP66 150W 60mm Street Pole Light

Large Image :  Aluminium 120lm/W 6500K IP66 150W 60mm Street Pole Light

Product Details:
Place of Origin: NINGBO,CHINA
Brand Name: DIE-CASTING MAN
Certification: CE,ROHS
Model Number: ZHSL-21A-150
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: 1pc/foam/ctn
Delivery Time: 30-40days
Supply Ability: 10000pcs/month
Detailed Product Description
Item: ZHSL-21A-150 Material: Aluminium
Wattage: 150W LED Lifetime: 5000h
Protection Grade: IP66 Pole Size: 60mm
Colour: Black And Grey Product Size: 836*266*155cm
High Light:

60mm Street Pole Light

,

IP66 Street Pole Light

,

120lm/W LED Street Light

High Efficient Aluminium LED Street Light Housing IP66 IK08 Complete Lamp



Product Spencification

*Item No.:ZHSL-21A-150

*Input Wattage:150W

*Color Temperature:3000-6500K

*Color Rendering Index:Ra≥70

*Led Lifetime:50000h

*Protection Grade:IP65

*Installation Pipe Diameter:∅60-76mm

*NW/GW:7.4/8.8KGS

*Packing Size:88.5*31.5*19.5m



Product Description

*ZHSL-21 family is a high-performance street light available in three size

*ZHSL-21B-150 is the biggest one

*The luminous will be at least 120lm/w

*Product Size:836*266*155mm

*Finish:power coating,general colour will be :double grey/sandy black/matt silver



Product Material

*Die casting aluminum body

*Ultra clear tempered glass and PC lens





ZHSL-21 Family Product Specification

Product Code ZHSL-21A-40 ZHSL-21A-80 ZHSL-21A-150
Input Wattage 50W 100W 150W
Color Temperature 3000-6500K 3000-6500K 3000-6500K
Luminous Flux 4400-4800lm 6900-7500lm 13800-15600lm
Input Voltage AC90-305V AC90-305V AC90-305V
Frequency Range 50/60Hz 50/60Hz 50/60Hz
Power Factor PF≥0.95 PF≥0.95 PF≥0.95
Color rendering index Ra≥70 Ra≥70 Ra≥70
Temperature of working condition -40-50℃ -40-50℃ -40-50℃
Humidity of working condition 20%-90%RH 20%-90%RH 20%-90%RH
LED Lifetime 50000h 50000h 50000h
Protection Grade IP66 IP66 IP66
Installation Pipe Diameter Φ50-60mm Φ50-60mm Φ60-76mm
Installation Height 4-8m 6-10m 8-12m
Net Weight 3.65kgs 6.45kgs 7.85kgs
Gross Weight 4.27kgs 7.20kgs 9.30kgs
Packing Size(mm) 615*215*165 770*265*180 885*315*195
Product Size(mm) 564*165*125 719*216*139 836*266*155





Photometric Data





Aluminium 120lm/W 6500K IP66 150W 60mm Street Pole Light 0



Aluminium 120lm/W 6500K IP66 150W 60mm Street Pole Light 1

Line Drawing



Aluminium 120lm/W 6500K IP66 150W 60mm Street Pole Light 2



Aluminium 120lm/W 6500K IP66 150W 60mm Street Pole Light 3





Aluminium 120lm/W 6500K IP66 150W 60mm Street Pole Light 4



Aluminium 120lm/W 6500K IP66 150W 60mm Street Pole Light 5



Aluminium 120lm/W 6500K IP66 150W 60mm Street Pole Light 6Aluminium 120lm/W 6500K IP66 150W 60mm Street Pole Light 7













Equipment

ZHSL-19-50  50W  ALUMINIUM OUTDOOR LED STREET LIGHT HOUSING

Exihibition

ZHSL-19-50  50W  ALUMINIUM OUTDOOR LED STREET LIGHT HOUSING ZHSL-19-50  50W  ALUMINIUM OUTDOOR LED STREET LIGHT HOUSING



ZHSL-19-50  50W  ALUMINIUM OUTDOOR LED STREET LIGHT HOUSING ZHSL-19-50  50W  ALUMINIUM OUTDOOR LED STREET LIGHT HOUSING



Company profile

* A professional origin die casting manufacturer of led outdoor light.

* With more than 2 decades years experience.

* 10000+ square meter plant, 120 employees, located in China Ninghai Mould City

* Completed lighting production equipment & workshop: semi-automatic die casting machines, CNC drilling treatment, Sandblast machine, Powder spraying line, Lamps assembly line, Aging test line.

* Full facilities of outdoor lighting testing for IP/ IK/ Salt Spray / Thermal / IES files, etc.

* Offering led complete-set lamp and empty housing, including led street light / led solar street light /led high bay light / led high pole light / led garden light / led urban light.

* 6 elite designers & engineers, developing 8-12 new styles every year.

* ISO9001 quality control system.

* CE, RoHS, TUV certificates.

* 5-7years guarantee

* ODM and OEM service are both available to customers domestic and overseas.



Why choose us

1.Die-casting Man has more than 21 years experience in manufactuering the outdoor lighting.

2.We have our own die-casting machine,CNC machine,spray line,assembling line.In this way,will be easy to control the quality.

3.And we also have our own tooling shop and develop department,can help customer develop their own products.



FAQ

Q1. What is your terms of payment?
A:Usually,we accept T/T,irrevocable L/C at sight.For regular orders,we prefer 30% in advance,70% against the of B/L.For long term business relations, we have more advantage terms for payment.
Q2. What is your terms of delivery?
A: We accept FOB,CIF,etc. You can choose the one which is the most convenient or cost effective for you.
Q3: What is the lead time?
A:It usually takes 25 to 35 days after sample confirmation and receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. If the item was non standard, we have to consider extra 10-15days for tooling/mould made.
Q4: How about tooling Charge?
A: Tooling charge only charge once when first order, all future orders would not charge again even tooling repair or under maintance.
Q5. What is your sample policy?
A: We are glad to send ip65 led light samples for your inspection.Standard samples can be free, but the clients need to cover the freight cost.
Q6. Can you produce according to the samples or drawings?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q7: How to confirm the quality with us before starting to produce?
1) We can provide ip65 led light samples and you can choose one or more, and then we make the quality according to that. 2) Send us your samples, and we will make it according to your quality.
Q8: How to solve the quality problems after sales?
A: Take photos of the problems and send to us. We will make a satisfied solution for you within three days after we confirm the problems.
Q9. What is your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the goods by your logo after getting your authorization letters.
Q10. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance tothe standards.
