Horizontal 200W IP66 150lm/W Football Field Lights

Horizontal 200W IP66 150lm/W Football Field Lights
Horizontal 200W IP66 150lm/W Football Field Lights Horizontal 200W IP66 150lm/W Football Field Lights Horizontal 200W IP66 150lm/W Football Field Lights Horizontal 200W IP66 150lm/W Football Field Lights

Large Image :  Horizontal 200W IP66 150lm/W Football Field Lights

Product Details:
Place of Origin: Ningbo China
Brand Name: Die-casting Man
Certification: CE, RoHs, ENEC,CB
Model Number: YASL-19-150
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Packaging Details: styrofoam package and carton box
Delivery Time: 7-30days
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Light Source: LED Color Tempetature: 3000-6500K
Voltage: AC90-305V Frequency Range: 50/60Hz
PF: 0.95 LED Lifetime: 50000h
Protection Grade: IP66 Installation Pipe Dia: φ60mm
Highlight:

150lm/W Football Field Lights

,

IP66 Football Field Lights

,

200W Football Floodlights

200W Customized Color IP66 140lm/w high efficiency Aluminium LED Street Light Fixtures



YASL-19-150



Installing Ways:

Both Horizontal and Vertical available

and adjustable angle -15 °to 15 °



Material:

Die casting body,

Ultra clear tempered glass and PC lens



Product Specification:



Product Code ZHSL-19-50 ZHSL-19-80 ZHSL-19-150
Input Wattage 50W 80W 150W
Color Temperature 3000-6500K 3000-6500K 3000-6500K
Luminous Flux 5500-6250lm 9200-10400lm 17250-19500lm
Input Voltage AC90-305V AC90-305V AC90-305V
Frequency Range 50/60Hz 50/60Hz 50/60Hz
Power Factor PF≥0.95 PF≥0.95 PF≥0.95
Color rendering index Ra≥70 Ra≥70 Ra≥70
Temperature of working condition -40-50℃ -40-50℃ -40-50℃
Humidity of working condition 20%-90%RH 20%-90%RH 20%-90%RH
LED Lifetime 50000h 50000h 50000h
Protection Grade IP66 IP66 IP66
Installation Pipe Diameter Φ60mm Φ60mm Φ60mm
Installation Height 4-6m 6-10m 8-12m
Net Weight 3.7kgs 6.2kgs 7.4kgs
Gross Weight 4.2kgs 6.5kgs 8.0kgs
Packing Size(mm) 620*270*155 670*310*155 810*340*155
Product Size(mm) 577*233*103 627*271*103 768*301*104



Light Distribution test




Horizontal 200W IP66 150lm/W Football Field Lights 0

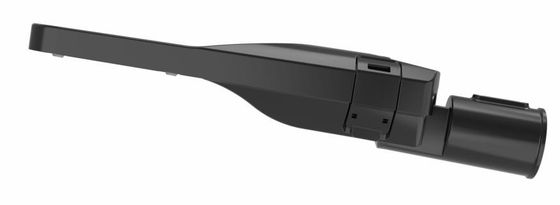

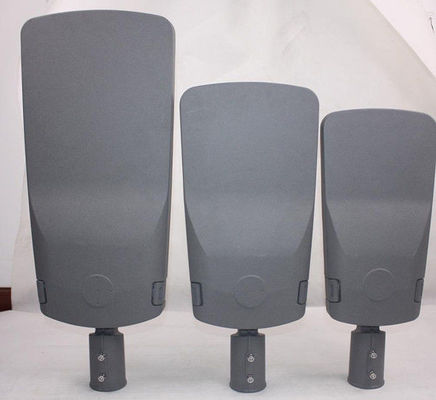

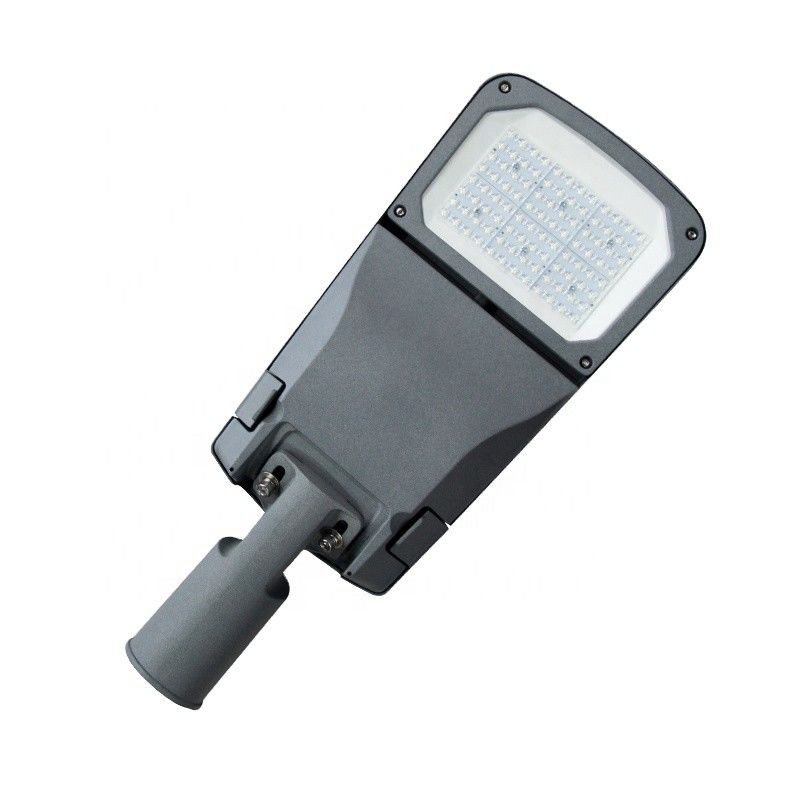

Products Details



Horizontal 200W IP66 150lm/W Football Field Lights 1
