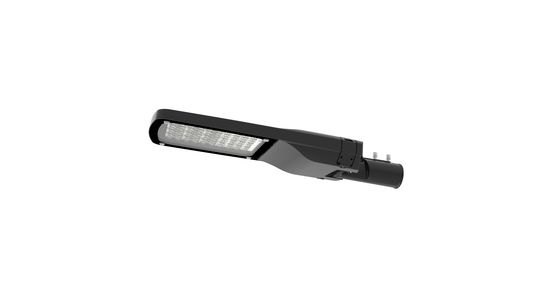

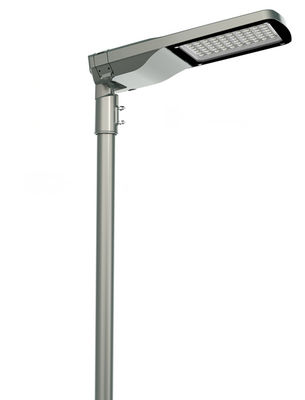

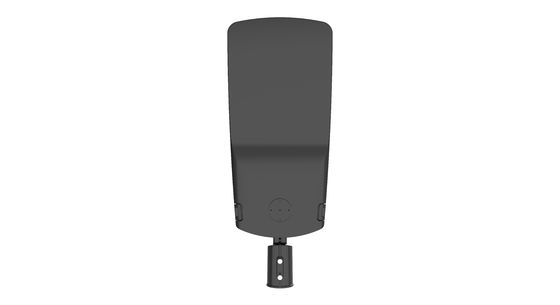

150W LED street light empty housing with knife switch body Material Die-casting Aluminium

China NingBo Die-Casting Man Technology Co.,ltd. certification
China NingBo Die-Casting Man Technology Co.,ltd. certification
Gold supplier, save me a lot of time to do the purchasing! And always giving professional suggestion, help me a lot in business! Thanks!

—— Ian Nicholas

Good quality products, low price and high quality services. Worthy trust and recommending business partner.

—— Michal Jussize

Hi Jenny, I have received the cargo. I want to say that we are very satisfied with your product and exelent service. I want also make a new order.

—— Ryan Retherford

I have been cooperating with Die casting man for 3 years. they supplied me thousands pieces of street light housing, I am glad to work with them because of the reliable quality and competitive price. A good experience to me.

—— Diana

I'm Online Chat Now

150W LED street light empty housing with knife switch body Material Die-casting Aluminium

150W LED street light empty housing with knife switch body Material Die-casting Aluminium
150W LED street light empty housing with knife switch body Material Die-casting Aluminium 150W LED street light empty housing with knife switch body Material Die-casting Aluminium 150W LED street light empty housing with knife switch body Material Die-casting Aluminium 150W LED street light empty housing with knife switch body Material Die-casting Aluminium

Large Image :  150W LED street light empty housing with knife switch body Material Die-casting Aluminium

Product Details:
Place of Origin: Ningbo China
Brand Name: Die-casting Man
Certification: CE, RoHs, ENEC,CB
Model Number: YASL-19-150
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Packaging Details: styrofoam package and carton box
Delivery Time: 7-30days
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Detailed Product Description
Light Source: LED CCT: 3000-6500K
Material: Die-casting Aluminium Color: Can Customized
High Light:

6500K Roadway Lighting Fixtures

,

IP66 Roadway Lighting Fixtures

,

3030 Road Lighting Fixtures

150W Customized RAL NO. IP66 140lm/w high efficiency Aluminium LED Road Lighting Fixtures​



YASL-19-150



Wit 3030 chip, and Invetronics driver.

At least 5 years guarantee letter.

Pass ENEC, CB, CE, RoHs certifcation.



Material

Die casting aluminum body pass SGS test.

Ultra clear tempered glass and PC lens

Painting can be C3, C4 if needed.



Product Specification



Product Code ZHSL-19-50 ZHSL-19-80 ZHSL-19-150
Input Wattage 50W 80W 150W
Color Temperature 3000-6500K 3000-6500K 3000-6500K
Luminous Flux 5500-6250lm 9200-10400lm 17250-19500lm
Input Voltage AC90-305V AC90-305V AC90-305V
Frequency Range 50/60Hz 50/60Hz 50/60Hz
Power Factor PF≥0.95 PF≥0.95 PF≥0.95
Color rendering index Ra≥70 Ra≥70 Ra≥70
Temperature of working condition -40-50℃ -40-50℃ -40-50℃
Humidity of working condition 20%-90%RH 20%-90%RH 20%-90%RH
LED Lifetime 50000h 50000h 50000h
Protection Grade IP66 IP66 IP66
Installation Pipe Diameter Φ60mm Φ60mm Φ60mm
Installation Height 4-6m 6-10m 8-12m
Net Weight 3.7kgs 6.2kgs 7.4kgs
Gross Weight 4.2kgs 6.5kgs 8.0kgs
Packing Size(mm) 620*270*155 670*310*155 810*340*155
Product Size(mm) 577*233*103 627*271*103 768*301*104



Light Distribution test



150W LED street light empty housing with knife switch body Material Die-casting Aluminium 0

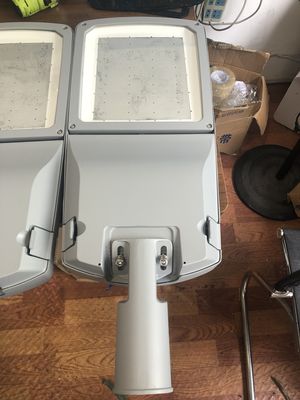

Products Details



150W LED street light empty housing with knife switch body Material Die-casting Aluminium 1

150W LED street light empty housing with knife switch body Material Die-casting Aluminium 2
