NingBo Die-Casting Man Technology Co.,ltd.
Home ProductsLED Street Light Housing

120w 150lm/W Efficiency Ip66 Led Street Light Housing

China NingBo Die-Casting Man Technology Co.,ltd. certification
China NingBo Die-Casting Man Technology Co.,ltd. certification
Gold supplier, save me a lot of time to do the purchasing! And always giving professional suggestion, help me a lot in business! Thanks!

—— Ian Nicholas

Good quality products, low price and high quality services. Worthy trust and recommending business partner.

—— Michal Jussize

Hi Jenny, I have received the cargo. I want to say that we are very satisfied with your product and exelent service. I want also make a new order.

—— Ryan Retherford

I have been cooperating with Die casting man for 3 years. they supplied me thousands pieces of street light housing, I am glad to work with them because of the reliable quality and competitive price. A good experience to me.

—— Diana

I'm Online Chat Now

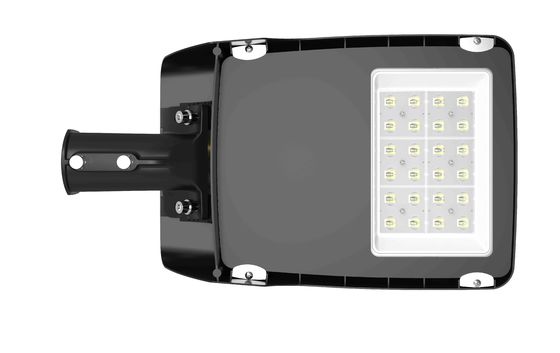

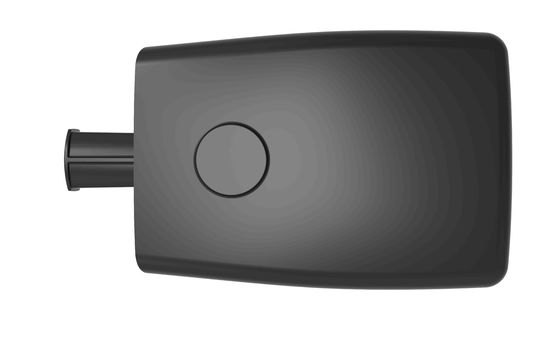

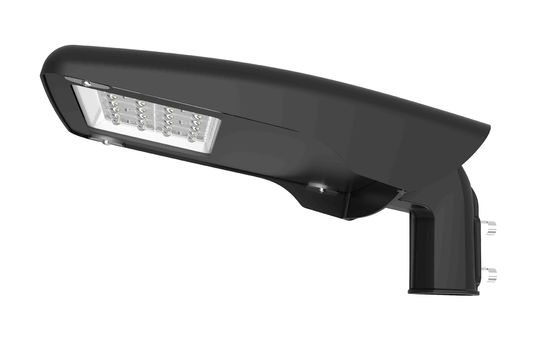

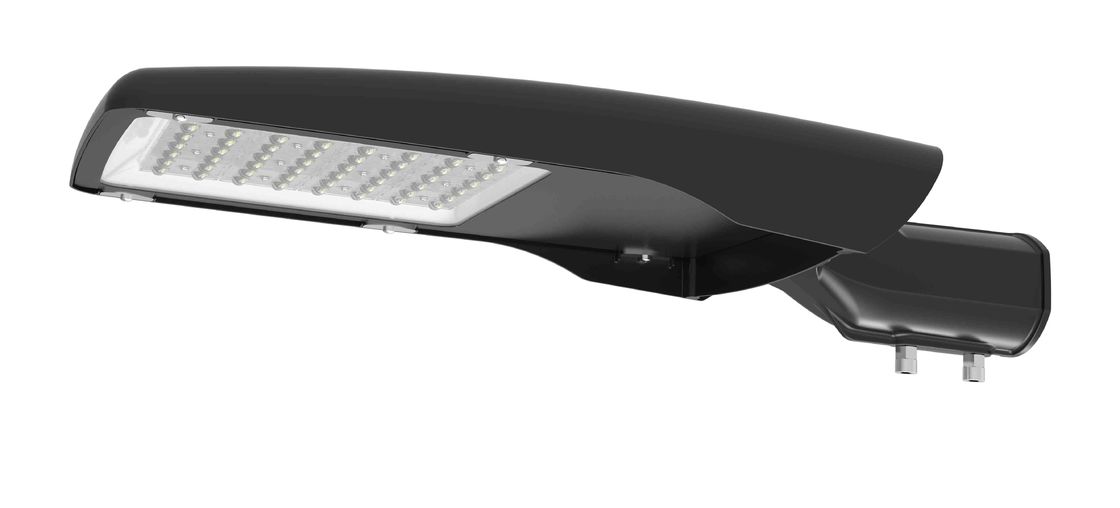

120w 150lm/W Efficiency Ip66 Led Street Light Housing

120w 150lm/W Efficiency Ip66 Led Street Light Housing
120w 150lm/W Efficiency Ip66 Led Street Light Housing 120w 150lm/W Efficiency Ip66 Led Street Light Housing 120w 150lm/W Efficiency Ip66 Led Street Light Housing 120w 150lm/W Efficiency Ip66 Led Street Light Housing

Large Image :  120w 150lm/W Efficiency Ip66 Led Street Light Housing

Product Details:
Place of Origin: Ningbo China
Brand Name: Die-casting Man
Certification: CE, RoHs, ENEC,CB
Model Number: YASL-24-120
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Packaging Details: styrofoam package and carton box
Delivery Time: 7-30days
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Detailed Product Description
Light Source: LED CCT: 3000-6500K
Power: 120W Lamp Luminous Efficiency(lm/w): 140-150lm/w
High Light:

120w LED Street Light Housing

,

150lm/w LED Street Light Housing

,

Ip66 Led Street Light Housing

120W LED street light Beautiful and generous on appearance with 150lm/w high efficiency


Product Material
Both Horizontal and Vertical available
and adjustable angle-15°to15°


Product Specification


Product Code YASL-24-40 YASL-24-60 YASL-24-120 YASL-24-200
Input Wattage 40W 60W 120W 200W
Color Temperature 3000-6500K 3000-6500K 3000-6500K 3000-6500K
Luminous Flux 5600-6000lm 8400-9000lm 16800-18000lm 28000-300000lm
Input Voltage AC90-305V AC90-305V AC90-305V AC90-305V
Frequency Range 50/60Hz 50/60Hz 50/60Hz 50/60Hz
Power Factor PF≥0.95 PF≥0.95 PF≥0.95 PF≥0.95
color rendering index Ra≥70 Ra≥70 Ra≥70 Ra≥70
Temperature of Working Condition -4050 -4050 -4050 -4050
Humidity of Working Condition 20%-90%RH 20%-90%RH 20%-90%RH 20%-90%RH
LED Lifetime 50000h 50000h 50000h 50000h
Protectin Grade IP66 IP66 IP66 IP66
Installation Pipe Diameter φ50mm φ50mm φ60mm φ60mm
Installation Height 4-6m 5-8m 7-10m 10-14m
Net Weight 2.8 kg 3.3 kg 4.5 kg 6.2 kg
Gross Weight 3.3 kg 4.0 kg 5.3 kg 7.0 kg
Packing Size 500*249*150mm 500*300*150mm 630*300*150mm 680*350*160mm



Die-casting Man Workshop
120w 150lm/W Efficiency Ip66 Led Street Light Housing 0

Company profile

* A professional origin die-casting manufacturer of led outdoor light.

* With more than 2 decades years experience.

* 10000+ square meter plant, 120 employees, located in China Ninghai Mould City

* Completed lighting production equipment & workshop: semi-automatic die casting machines, CNC drilling treatment, Sandblast machine, Powder spraying line, Lamps assembly line, Aging test line.

* Full facilities of outdoor lighting testing for IP/ IK/ Salt Spray / Thermal / IES files, etc.

* Offering led complete-set lamp and empty housing, including led street light / led solar street light /led high bay light / led high pole light / led garden light / led urban light.

* 6 elite designers & engineers, developing 8-12 new styles every year.

* ISO9001 quality control system.

* CE, RoHS, TUV certificates.

* 5-7years guarantee

* ODM and OEM service are both available to customers domestic and overseas.
 120w 150lm/W Efficiency Ip66 Led Street Light Housing 1

120w 150lm/W Efficiency Ip66 Led Street Light Housing 2
