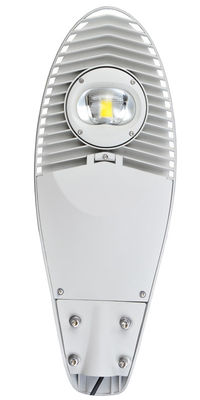

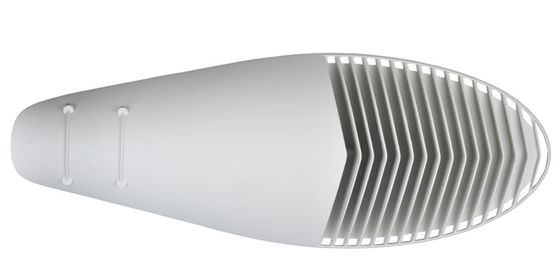

Outside 60w 70w 9600lm 50000h White Coating COB Led Street Light For Highspeed Way

Outside 60w 70w 9600lm 50000h White Coating COB Led Street Light For Highspeed Way
Outside 60w 70w 9600lm 50000h White Coating COB Led Street Light For Highspeed Way Outside 60w 70w 9600lm 50000h White Coating COB Led Street Light For Highspeed Way

Large Image :  Outside 60w 70w 9600lm 50000h White Coating COB Led Street Light For Highspeed Way

Product Details:
Place of Origin: China
Brand Name: Die-casting Man
Certification: CE, RoHs
Model Number: YASL-04-80
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: 1pc/bag/foam/carton, pallet optional
Delivery Time: 7-10 days based on order QTY
Payment Terms: T/T, 30% T/T as deposit, 70% T/T balance before delivery(EXW) or against shipping documents(FOB Ningbo), L/C
Supply Ability: 30000pcs/month
Detailed Product Description
Wattage: 80w Material: Die-casting Aluminium
Screws: 304 Stainless Screws Color: Grey/ Black/ White
Warranty: 5 Years Beam Angle: 150*70 Degree
Light Source: COB IP: 66
High Light:

9600lm COB Led Street Light

,

60w COB Led Street Light

,

street light led 70w

White Blue Gray Black Colors Available Outdoor 60w 70w 80w Led Street Light Fixtures 9600lm IK09 for Highspeed Way



Item NO.: YASL-04-80



Production Description:

- SL-04 series luminaire is the ideal solution that fufils requiremnents of dunctional street lighting and residential areas, which working with outstanding heat dissipation and compacting system. Equipped with high-quality electrical components, long lifespan is assured. Efficient system also reduce energy consumption and creat a more attractive urban living environment and visual comforts for public and residential areas.

- With patented housing design and range of optics, SL-04 series luminaires is also a perfect choice for project oriented usage.



Technical Datas:

Item NO. ZHSL-04-80 ZHSL-04-80 ZHSL-04-80
Power 60w 70w 80w
LED chip Bridgelux  Bridgelux Bridgelux
LED Quantity 1pc 1pc 1pc
LED driver MeanWell / Inventronics MeanWell / Inventronics MeanWell / Inventronics
Input Voltage AC 90-305V AC 90-305V AC 90-305V
Frequency 50/60Hz 50/60Hz 50/60Hz
Power Factor >0.9 >0.9 >0.9
Total flux >7800lm >8400lm >9600lm
Working temperature -40℃-50℃ -40℃-50℃ -40℃-50℃
Working Humidity 20%-90% RH 20%-90% RH 20%-90% RH
Optic angle 150°* 70°, other optic angle optional 150°* 70°, other optic angle optional 150°* 70°, other optic angle optional
Color Rendering Index Ra>70 Ra>70 Ra>70
Color Temperature 2700-6500K 2700-6500K 2700-6500K
Life Span ≥70000h ≥70000h ≥70000h
Protection Grade IP66/IK09 IP66/IK09 IP66/IK09
Installation Pipe Diameter Φ60mm Φ60mm Φ60mm
Installation Height 6-8m 6-8m 6-8m
Product Dimension 650*237*121mm 650*237*121mm 650*237*121mm
Net Weight 4.3KG 4.3KG 4.3KG
Gross Weight 5.4KG 5.4KG 5.4KG
Packing Size 707*290*160mm 707*290*160mm 707*290*160mm



Features:


1.Warm and cold color temperature are available

2.Patented heat dissipation technology for radiator;

3.Acrylic sealing reflector around LED; anodized oxide treated aluminum reflector & acrylic reflector available;

4.Beam angle: 150x70 degree. Dustproof cover, or Crystal PC reflector available

5.Terrific heat dissipation technology: LED temperature will be rapid transfered to fin-style heatsink through heatpipe

6.Eco-friendly: No lead, mercury, UV interference

7.Warranty: 5 years









Outside 60w 70w 9600lm 50000h White Coating COB Led Street Light For Highspeed Way 0

Outside 60w 70w 9600lm 50000h White Coating COB Led Street Light For Highspeed Way 1



Outside 60w 70w 9600lm 50000h White Coating COB Led Street Light For Highspeed Way 2





Dimension:

ZHSL-04-80

Outside 60w 70w 9600lm 50000h White Coating COB Led Street Light For Highspeed Way 3







Light Distribution Curve:

Outside 60w 70w 9600lm 50000h White Coating COB Led Street Light For Highspeed Way 4





Why us?

1) We are not only a die casting factory, but also a factory consist of a completed lighting design team, tooling and mold development workshop, auto-painting finishing lines, assembly lines, and completed lighting products testing.

2) All of the material and finished products will be tested under the ISO9001 quality control system.

3) We have many advanced equipments, such as semi-automatic die cast machines, CNC treatment, and full sets of completed lights IP testing, lumen test ,aging test, and photometric testing equipments. All those facilities make sure the quality is approved by CE, RoHS, TUV certificate.

4) Our team develops new items every year according to different market’s style. The products rang is including LED street light, LED urban light, LED High bay light and LED tunnel light. Our new patent design of led street lights is very popular in the market.

5) In order to meet more and more requirements of customers, we offer ODM and OEM good service. Welcome to contact the sales and visit Zhouhua factory to discuss face to face.
