NingBo Die-Casting Man Technology Co.,ltd.
Home ProductsLED Street Light Housing

180W LED Street Light Housing

China NingBo Die-Casting Man Technology Co.,ltd. certification
China NingBo Die-Casting Man Technology Co.,ltd. certification
Gold supplier, save me a lot of time to do the purchasing! And always giving professional suggestion, help me a lot in business! Thanks!

—— Ian Nicholas

Good quality products, low price and high quality services. Worthy trust and recommending business partner.

—— Michal Jussize

Hi Jenny, I have received the cargo. I want to say that we are very satisfied with your product and exelent service. I want also make a new order.

—— Ryan Retherford

I have been cooperating with Die casting man for 3 years. they supplied me thousands pieces of street light housing, I am glad to work with them because of the reliable quality and competitive price. A good experience to me.

—— Diana

I'm Online Chat Now

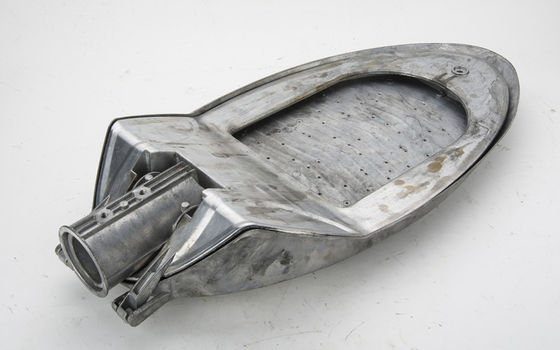

180W LED Street Light Housing

180W LED Street Light Housing
180W LED Street Light Housing 180W LED Street Light Housing 180W LED Street Light Housing 180W LED Street Light Housing

Large Image :  180W LED Street Light Housing

Product Details:
Place of Origin: CHINA
Brand Name: Die-castingman
Certification: CE, RoHs, ENEC, CB
Model Number: ZHSL-05-40-60-120
Payment & Shipping Terms:
Minimum Order Quantity: 1-10PCS
Price: $22.00 - $23.57 /pc
Packaging Details: Carton box with foam
Delivery Time: 7-30days after final confirm
Supply Ability: 10000PCS/Month
Detailed Product Description
Material: Die Casting Aluminum Watt: 40-180W
LED Color: WW/NW/CW Fixture Color: Black,Gray,White
CRI: >70 Frequency Range: 50 - 60Hz
Working Ambient Temperature: -30℃ - 50℃ Working Ambient Humidity: 10% - 90%
Input Voltage: AC85 - 265V IK: 08
High Light:

180W LED Street Light Housing


180w Street Light Housing


CRI70 LED Street Light Housing

Classic led Street Led Light Housing Aluminum IP65 IK08


This street light SL-05 family with 3 size


Item NO. ZHSL-05-40 ZHSL-05-60 ZHSL-05-120
LED Quantity 18pcs 54pcs 80pcs
Rated Power 30W 80W 120W
Color Temperature 2700-6500K 2700-6500K 2700-6500K
Initial Luminous Flux 3000LM 8000LM 12000LM
Input Voltage AC100-240V AC100-240V AC100-240V
Frequency Range 50-60Hz 50-60Hz 50-60Hz
Power Factor PF≥0.95 PF≥0.95 PF≥0.95
Color Rendering Index Ra>70 Ra>70 Ra>70
Temperature Working Condition -40℃ - 50℃ -40℃ - 50℃ -40℃ - 50℃
Humidity of Working Condition 20-90% 20-90% 20-90%
LED Lifetime 50000h 50000h 50000h
Protection Grade IP65 IP65 IP65
Installation Pipe Diameter 60mm 60mm 60mm
Installation Height 6-8m 6-8m 6-8m
Net Weight 2.9kgs 6.2 kgs 10 kgs
Gross Weight 3.3kgs 7 kgs 11 kgs
Packing Size 52*28*14 cm 71*35*16 cm 91.5 x42x19 cm




New Patent 50W SMD LED streetlight made of High quality Die Casting Aluminum housing


1. The latest version of high power SMD LED Street Light Housing


2. State-of-art designing with completed die-casting body as heat sink offer the maximum heat management system


3. Patented anti-glare optic lense enable this street light give an maximum 130 degree and 140 degree light spread,

with an asymmetrical polar curve.


4. IP65 protection grade.


5. User-friendly mechanical  designing,easy to assemble the led,potic lense and led power supply.


6.The Led power supply is designed to installed with two U brackets,so any brand of led power supply can be easily installed.





minor roads,Motorways,Major roads,roundabouts,crossing and industrial areas.



the most hot-selling is middle size.



Model Number


Electrical Specifications



TotaLPower consumption


Operation Voltage

85-265VAC or 12VDC or 24VDC

Operating Humidity


Working Temperature

-30 ~ 50°C

Power Fact(PF)


Driver Efficiency

> 0.9

Photometric Specifications

LED Luminous Flux

6120 lm - Initial


5990 lm - Maintain

Led Luminous Efficiency



Ra ≥ 70

LED Color


Mechanical Specifications

IP Rating




Heat Radiator

die-casting body as heat sink


tempering glass

Fixture Dimension


Fixture Weight



Packing Information

Packing Type

1unit /ctn

Packing Dimension

78.5x39x21.5 cm (30.9” x15.4” x8.5”)

Packing Weight




180W LED Street Light Housing 0

Q1. What is your terms of payment?

A:Usually,we accept T/T,irrevocable L/C at sight.For regular orders,we prefer 30% in advance,70% against the of B/L.For long term business relations, we have more advantage terms for payment.


Q2. What is your terms of delivery?

A: We accept FOB,CIF,etc. You can choose the one which is the most convenient or cost effective for you.


Q3: What is the lead time?

A:It usually takes 25 to 35 days after sample confirmation and receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. If the item was non standard, we have to consider extra 10-15days for tooling/mould made.


Q4: How about tooling Charge?

A: Tooling charge only charge once when first order, all future orders would not charge again even tooling repair or under maintance.


Q5. What is your sample policy?

A: We are glad to send led street lights 28w samples for your inspection.Standard samples can be free, but the clients need to cover the freight cost.


Q6. Can you produce according to the samples or drawings?

A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.


Q7: How to confirm the quality with us before starting to produce?

1) We can provide led street lights 28w samples and you can choose one or more, and then we make the quality according to that. 2) Send us your samples, and we will make it according to your quality.


Q8: How to solve the quality problems after sales?

A: Take photos of the problems and send to us. We will make a satisfied solution for you within three days after we confirm the problems.


Q9. What is your terms of packing?

A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the goods by your logo after getting your authorization letters.


Q10. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance tothe standards.
