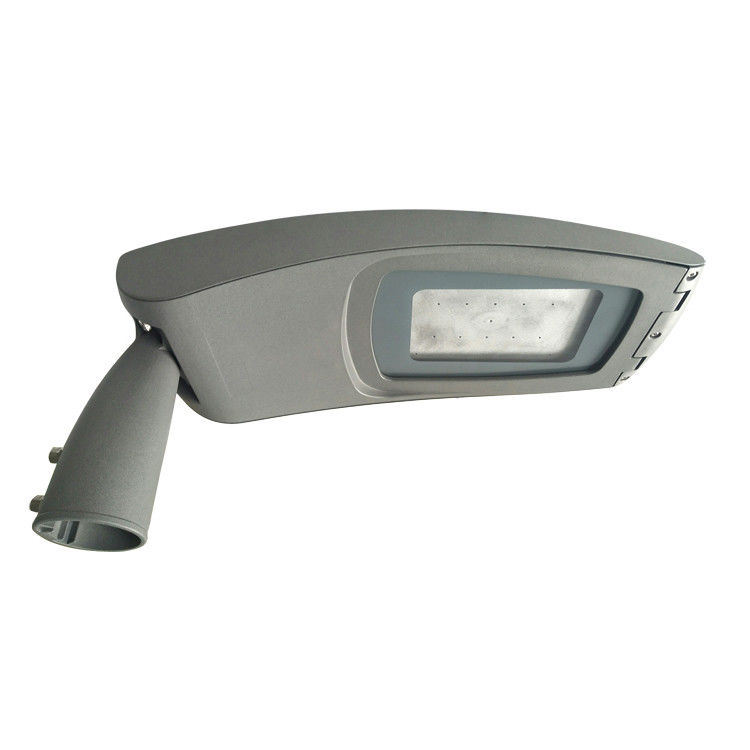

Tool free Aluminium led street light pole adapter 60mm 76mm
Product Description
*ZHSL-13 family is a high-performance street light available in three size
*ZHSL-13 have 3 size, from 50w to 150w.
*The luminous will be at least 120lm/w
*Small size Product Size:641*241*114mm
*Finish:power coating,general colour will be :double grey/sandy black/matt silver
*Item No.:ZHSL-13-50
*NW/GW:9.8/11.5kgs
*Packing Size:69.5*28.5*13cm
Product Specification
| Product Code |
ZHSL-13-50 |
ZHSL-13-100 |
ZHSL-13-150 |
| Input Wattage |
50W |
100W |
150W |
| Color Temperature |
3000-6500K |
3000-6500K |
3000-6500K |
| Luminous Flux |
5500-6250lm |
9200-10400lm |
17250-19500lm |
| Input Voltage |
AC90-305V |
AC90-305V |
AC90-305V |
| Frequency Range |
50/60Hz |
50/60Hz |
50/60Hz |
| Power Factor |
PF≥0.95 |
PF≥0.95 |
PF≥0.95 |
| Color rendering index |
Ra≥70 |
Ra≥70 |
Ra≥70 |
| Temperature of working condition |
-40-50℃ |
-40-50℃ |
-40-50℃ |
| Humidity of working condition |
20%-90%RH |
20%-90%RH |
20%-90%RH |
| LED Lifetime |
50000h |
50000h |
50000h |
| Protection Grade |
IP66 |
IP66 |
IP66 |
| Installation Pipe Diameter |
Φ60mm |
Φ60mm |
Φ60mm |
| Installation Height |
4-8m |
6-10m |
8-12m |
| Net Weight |
3.9kgs |
5.4kgs |
9.8kgs |
| Gross Weight |
4.6kgs |
6.5kgs |
11.5kgs |
| Packing Size(mm) |
695*285*130 |
790*340*135 |
970*415*180 |
| Product Size(mm) |
641*241*114 |
738*289*114 |
923*360*150 |
Package
Equipment
Exihibition
Company profile
* A professional origin die casting manufacturer of led outdoor light.
* With more than 2 decades years experience.
* 10000+ square meter plant, 120 employees, located in China Ninghai Mould City
* Completed lighting production equipment & workshop: semi-automatic die casting machines, CNC drilling treatment, Sandblast machine, Powder spraying line, Lamps assembly line, Aging test line.
* Full facilities of outdoor lighting testing for IP/ IK/ Salt Spray / Thermal / IES files, etc.
* Offering led complete-set lamp and empty housing, including led street light / led solar street light /led high bay light / led high pole light / led garden light / led urban light.
* 6 elite designers & engineers, developing 8-12 new styles every year.
* ISO9001 quality control system.
* CE, RoHS, TUV certificates.
* 5-7years guarantee
* ODM and OEM service are both available to customers domestic and overseas.
Why choose us
1.Die-casting Man has more than 21 years experience in manufactuering the outdoor lighting.
2.We have our own die-casting machine,CNC machine,spray line,assembling line.In this way,will be easy to control the quality.
3.And we also have our own tooling shop and develop department,can help customer develop their own products.
