Product Details:
Payment & Shipping Terms:
|
Manufacturer: | Die Casting Man | Material: | Aluminum |
---|---|---|---|
Wattage: | 150w | Fixture Color: | Light Grey |
LED Color: | WW/NW/CW | CRI: | >70 |
Input Voltage: | AC85 - 265V | Frequency Range: | 50 - 60Hz |
Working Ambient Humidity: | 10% - 90% | Working Ambient Temperature: | -30℃ - 50℃ |
High Light: | street light waterproof 150w,50000h street light waterproof,WW led street light waterproof |

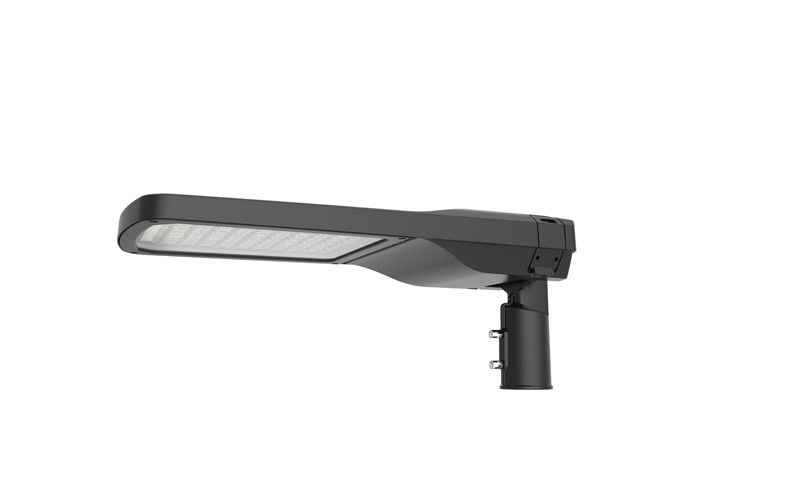

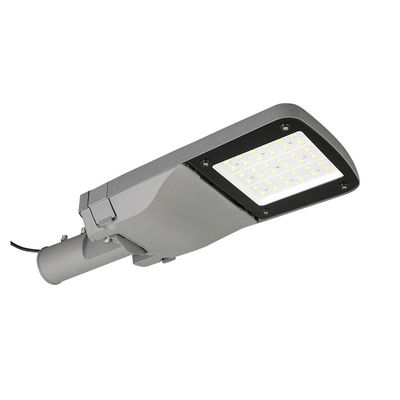

tool free 50000h street light 150w High Power LED Street Light ip66 major road
Product Spencification
* Item No.:YASL-19-150
* Input Wattage:150W
* Color Temperature:3000-6500K
* Color Rendering Index:Ra≥70
* Led Lifetime:50000h
* Protection Grade:IP66
* Installation Pipe Diameter:∅60mm
* NW/GW:7.4/8.0kgs
* Packing Size:81*34*15.5cm
Product Material
* Die casting aluminum body
* Ultra clear tempered glass and PC lens
Product Specification
Product Code | ZHSL-19-50 | ZHSL-19-80 | ZHSL-19-150 |
Input Wattage | 50W | 80W | 150W |
Color Temperature | 3000-6500K | 3000-6500K | 3000-6500K |
Luminous Flux | 5500-6250lm | 9200-10400lm | 17250-19500lm |
Input Voltage | AC90-305V | AC90-305V | AC90-305V |
Frequency Range | 50/60Hz | 50/60Hz | 50/60Hz |
Power Factor | PF≥0.95 | PF≥0.95 | PF≥0.95 |
Color rendering index | Ra≥70 | Ra≥70 | Ra≥70 |
Temperature of working condition | -40-50℃ | -40-50℃ | -40-50℃ |
Humidity of working condition | 20%-90%RH | 20%-90%RH | 20%-90%RH |
LED Lifetime | 50000h | 50000h | 50000h |
Protection Grade | IP66 | IP66 | IP66 |
Installation Pipe Diameter | Φ60mm | Φ60mm | Φ60mm |
Installation Height | 4-6m | 6-10m | 8-12m |
Net Weight | 3.7kgs | 6.2kgs | 7.4kgs |
Gross Weight | 4.2kgs | 6.5kgs | 8.0kgs |
Packing Size(mm) | 620*270*155 | 670*310*155 | 810*340*155 |
Product Size(mm) | 577*233*103 | 627*271*103 | 768*301*104 |
Feature of Product
1.Special optical lens with tempered glass cover,make the good light distribution and perfect proof (water proof and dust proof)
2.With Surge Projector to protect lamp from up to 10KV/10KA.
3. Knob type, easy installation and maintenance by turn the switch do not need tools to open or close the light cap.
4.Full die-cast aluminum housing to prevent guano.
5.The mounting angle is adjustable. The lamp can be adjusted ±15 degree.
6.It can be matched with photocell , smart controller, timer,0-10V dimming,DALI etc
Trading Conditions
1. Payment term: 30% deposit by T/T and 70% before delivery or against Copy of BL.
2. Delivery time: 25 days
3. Samples time: 7 days.
4. Shipping terms: FOB Ningbo.
5. Discounts will be determined by quantity.
6. Welcome distributors to cooperate together.
FAQ:
A: Could you introduce Die-casting Man in Details?
B: Ningbo Die-casting Man Techonology Co.,LTD. was founded in 1996 and is located in Ninghai Mould Centre, close to Ningbo port and Shanghai port.
A: How large is the plant?
B: It covers an area of 15,000 square meters.
A: How many employees do you have in this plant?
B: 100 staff.
A: Does your factory have ISO-9001 certification?
B: yes
A :Does your plant work with everything from the raw material to the finished product?
B: Yes. we have die casting equipments. CNC machines and powder painting line. we finish these processes and assemble the parts here
