Outside Tool Free 50000h 150w 19500lm Waterproof Street Light

China NingBo Die-Casting Man Technology Co.,ltd. certification
China NingBo Die-Casting Man Technology Co.,ltd. certification
Gold supplier, save me a lot of time to do the purchasing! And always giving professional suggestion, help me a lot in business! Thanks!

—— Ian Nicholas

Good quality products, low price and high quality services. Worthy trust and recommending business partner.

—— Michal Jussize

Hi Jenny, I have received the cargo. I want to say that we are very satisfied with your product and exelent service. I want also make a new order.

—— Ryan Retherford

I have been cooperating with Die casting man for 3 years. they supplied me thousands pieces of street light housing, I am glad to work with them because of the reliable quality and competitive price. A good experience to me.

—— Diana

I'm Online Chat Now

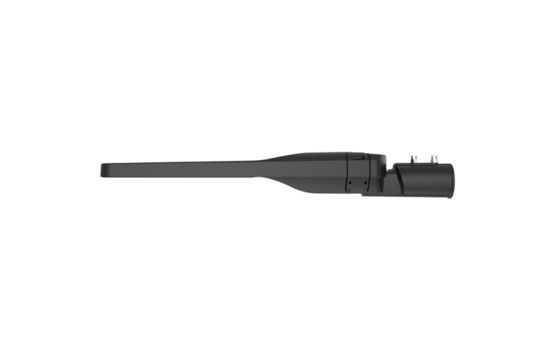

Outside Tool Free 50000h 150w 19500lm Waterproof Street Light

Outside Tool Free 50000h 150w 19500lm Waterproof Street Light
Outside Tool Free 50000h 150w 19500lm Waterproof Street Light Outside Tool Free 50000h 150w 19500lm Waterproof Street Light

Large Image :  Outside Tool Free 50000h 150w 19500lm Waterproof Street Light

Product Details:
Place of Origin: China
Brand Name: Die Casting Man/OEM
Certification: CE, RoHs, ENEC, CB
Model Number: YASL-19-150
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: Carton box with foam
Delivery Time: 7-30 days base on order quantity
Payment Terms: By T/T 30% in advance and 70% after shipment EXW/FOB NINGBO, Western Union
Supply Ability: 10000PCS/Month.
Detailed Product Description
Manufacturer: Die Casting Man Material: Aluminum
Wattage: 150w Fixture Color: Light Grey
LED Color: WW/NW/CW CRI: >70
Input Voltage: AC85 - 265V Frequency Range: 50 - 60Hz
Working Ambient Humidity: 10% - 90% Working Ambient Temperature: -30℃ - 50℃
High Light:

150w Waterproof Street Light

,

50000h Waterproof Street Light

,

19500lm outside street lights

tool free 50000h street light 150w High Power LED Street Light ip66 major road



Product Specification



* Item No.:YASL-19-150



* Input Wattage:150W





* Installation Pipe Diameter:∅60mm



* NW/GW:7.4/8.0kgs



* Packing Size:81*34*15.5cm





Product Specification

Product Code ZHSL-19-50 ZHSL-19-80 ZHSL-19-150
Input Wattage 50W 80W 150W
Color Temperature 3000-6500K 3000-6500K 3000-6500K
Luminous Flux 5500-6250lm 9200-10400lm 17250-19500lm
Input Voltage AC90-305V AC90-305V AC90-305V
Frequency Range 50/60Hz 50/60Hz 50/60Hz
Power Factor PF≥0.95 PF≥0.95 PF≥0.95
Color rendering index Ra≥70 Ra≥70 Ra≥70
Temperature of working condition -40-50℃ -40-50℃ -40-50℃
Humidity of working condition 20%-90%RH 20%-90%RH 20%-90%RH
LED Lifetime 50000h 50000h 50000h
Protection Grade IP66 IP66 IP66
Installation Pipe Diameter Φ60mm Φ60mm Φ60mm
Installation Height 4-6m 6-10m 8-12m
Net Weight 3.7kgs 6.2kgs 7.4kgs
Gross Weight 4.2kgs 6.5kgs 8.0kgs
Packing Size(mm) 620*270*155 670*310*155 810*340*155
Product Size(mm) 577*233*103 627*271*103 768*301*104




Main Features

1. High pressure die cast aluminium alloy housing. Anti-corrosion with Electrophoresis process.

2. High performance design with 5050 LED source and exclusive Lens.The light transmittance up to 98%.

Luminous efficacy up to 160-170lm/w

3. Type I,Type II,Type III lens optional. Uniform light distribution apply to different street light project.

4. Excellent operating temperature -40°C ~ 50°C

5. Replaceable and upgradeable modular design easy assembly easy installation and easy maintenance.

6. Green product,no UV or IR radiation,no mercury pollution.Passed IEC62471 test.

7. -15 ~ +15° angle adjustable and applicable different mounting arm.

8. With Excellent housing design reach IP66/IK09 rating.

9. Vibration resistant and Surge protection 10KV/20KV.

10. Easy replacement of the entire LED module and electronic system by removing the top cover.

11. Double Clip on closure,"Plug and Play" system suitable for SKD .

12. LEDs with multi-chips Package has high lumen,stable performance,low light failure and no dead lights.

13. Dimming and smart lighting system available upon request.

14. CE,Rohs,CB,LM-79,LM-80 approved.

15. Life-span over 50,000 hours,5 years warranty.





Trading Conditions

1. Payment term: 30% deposit by T/T and 70% before delivery or against Copy of BL.

2. Delivery time: 25 days

3. Samples time: 7 days.

4. Shipping terms: FOB Ningbo.

5. Discounts will be determined by quantity.

6. Welcome distributors to cooperate together.



FAQ:



A: how many machines do you have?

B: 7 CNC processing machines.



A: How many hour will this machine work a day?

B: 16hours.

A :how about the capacity?

B: around 40,000pcs per month.



A: Are manufacturing work instructions available at working area?

B: yes.our technical department will make a instruction for all of our models. and it will stick on the machines

when they produce the model.



A:can we change the hole position in housing?

B: of course you can.



A:can we watch the painting workshop?

B:due to the time is 7pm in China.the workers got off work.we will show you next time. please pay attention to our Live.





A: what are the procedures of painting will we do?

B: we will polish the die casting part firstly. remove the burrs and make the surface smoothly.

then keep the parts in oven for 15minutes under 185 degree to make it solidify. then the workers

will spray powder on it and hung it on spray line.
