Product Details:
Payment & Shipping Terms:
|
| Material: | ADC12 Aluminum | Wattage: | 80W |
|---|---|---|---|
| IP: | 66 | CRI: | >70 |
| LED Color: | WW/NW/CW | Input Voltage: | AC85 - 265V |
| Frequency Range: | 50 - 60Hz | Working Ambient Temperature: | -30℃ - 50℃ |
| Working Ambient Humidity: | 10% - 90% | IK: | 08 |
| High Light: | LED Street Light Housing 80w,ik08 LED Street Light Housing,CW Street Light Housing |
||

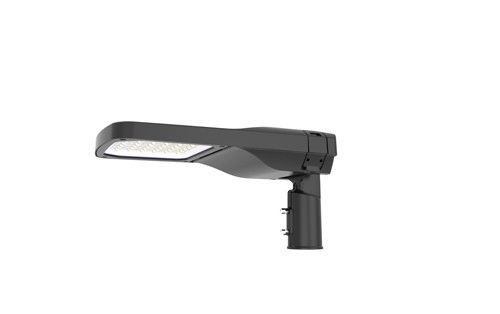

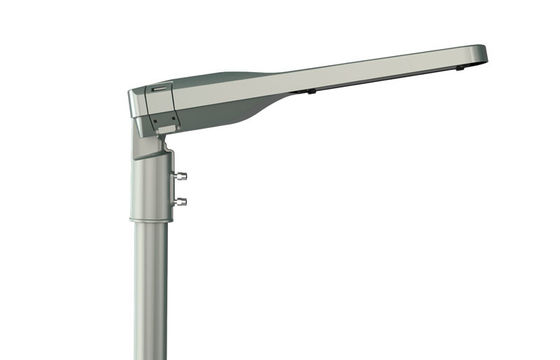

Product Description:
| Product Code | ZHSL-19-30 | ZHSL-19-50 | ZHSL-19-80 | ZHSL-19-150 | |
| Input Wattage | 30W | 50W | 80 W | 150W | |
| Color Temperature | 3000-6500K | 3000/4000/6500 | 3000/4000/6500 | 3000/4000/6500 | |
| Luminous Flux | 3300-3750 lm | 5500-6250 lm | 9200-10400 lm | 16500-19500 lm | |
| Input Voltage | AC90-305V | AC 90-305 V | AC 90-305 V | AC 90-305 V | |
| Frequency Range | 50/60Hz | 50/60 Hz | 50/60 Hz | 50/60 Hz | |
| Power Factor | PF≥0.95 | PF≥0.95 | PF≥0.95 | PF≥0.95 | |
| color rendering index | Ra≥70 | Ra≥70 | Ra≥70 | Ra≥70 | |
| Temperature of Working Condition | -40-50℃ | -40--50℃ | -40--50℃ | -40--50℃ | |
| Humidity of Working Condition | 20%-90%RH | 20%-90%RH | 20%-90%RH | 20%-90%RH | |
| LED Lifetime | 50000h | 50000 h | 50000 h | 50000 h | |
| Protectin Grade | IP66 | IP 66 | IP 66 | IP 66 | |
| Installation Pipe Diameter | φ60mm | φ60 mm | φ60 mm | φ70 mm | |
| Installation Height | 4-6m | 4-6 m | 5-8 m | 10-12 m | |
| Net Weight | 3 kgs | 3.5 kgs | 5 kgs | 6.4 kgs | |
| Gross Weight | 3.5 kgs | 4 kgs | 6 kgs | 7.4 kgs | |
| Packing Size | 51*23.6*15 cm | 63*28*15.5 cm | 67*31*16 cm | 82.5834*16 cm | |
Application
It is suitable for the street lighting at highways, urban roads and secondary roads, stadiums, sidewalks, residential areas,
industrial areas, squares, parks, schools, villas, gardens and other places.
Why choose us
1. Die-casting Man has more than 21 years experience in manufactuering the outdoor lighting.
2. We have our own die-casting machine,CNC machine,spray line,assembling line.In this way,will be easy to control the quality.
3. And we also have our own tooling shop and develop department,can help customer develop their own products.
FAQ
Q1. Can you produce according to the samples or drawings?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q2: How to confirm the quality with us before starting to produce?
1) We can provide ip65 led light samples and you can choose one or more, and then we make the quality according to that. 2) Send us your samples, and we will make it according to your quality.
Q3: How to solve the quality problems after sales?
A: Take photos of the problems and send to us. We will make a satisfied solution for you within three days after we confirm the problems.
Q4. What is your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the goods by your logo after getting your authorization letters.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance tothe standards.
