Product Details:
Payment & Shipping Terms:
|
| Wattage: | 50w | Material: | ADC12 Aluminum |
|---|---|---|---|
| Color Temeperature: | 3000-6500k | Input Voltage: | AC90 - 305V |
| Pipe Diameter: | Φ 60MM | Luminous Flux: | 5500-6250lm |
| High Light: | 50w led street light housing,50000h led street light housing,6250lm led street light housing |
||
50W ALUMINIUM OUTDOOR LED STREET LIGHT HOUSING IP66 IK08
Product Material
* Die casting aluminum body
* Ultra clear tempered glass and PC lens
Product Specification
| Product Code | ZHSL-19-50 | ZHSL-19-80 | ZHSL-19-150 |
| Input Wattage | 50W | 80W | 150W |
| Color Temperature | 3000-6500K | 3000-6500K | 3000-6500K |
| Luminous Flux | 5500-6250lm | 9200-10400lm | 17250-19500lm |
| Input Voltage | AC90-305V | AC90-305V | AC90-305V |
| Frequency Range | 50/60Hz | 50/60Hz | 50/60Hz |
| Power Factor | PF≥0.95 | PF≥0.95 | PF≥0.95 |
| Color rendering index | Ra≥70 | Ra≥70 | Ra≥70 |
| Temperature of working condition | -40-50℃ | -40-50℃ | -40-50℃ |
| Humidity of working condition | 20%-90%RH | 20%-90%RH | 20%-90%RH |
| LED Lifetime | 50000h | 50000h | 50000h |
| Protection Grade | IP66 | IP66 | IP66 |
| Installation Pipe Diameter | Φ60mm | Φ60mm | Φ60mm |
| Installation Height | 4-6m | 6-10m | 8-12m |
| Net Weight | 3.7kgs | 6.2kgs | 7.4kgs |
| Gross Weight | 4.2kgs | 6.5kgs | 8.0kgs |
| Packing Size(mm) | 620*270*155 | 670*310*155 | 810*340*155 |
| Product Size(mm) | 577*233*103 | 627*271*103 | 768*301*104 |

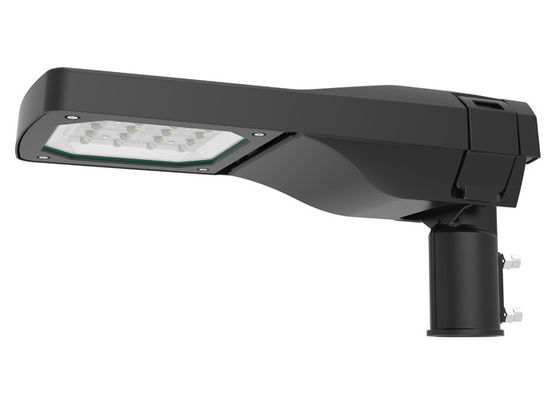

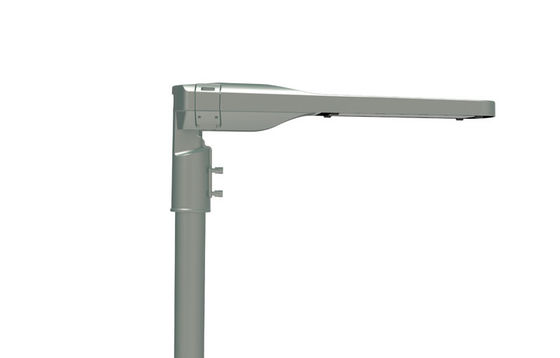

Product Picture
Company profile
* A professional origin die casting manufacturer of led outdoor light.
* With more than 2 decades years experience.
* Full facilities of outdoor lighting testing for IP/ IK/ Salt Spray / Thermal / IES files, etc.
* Offering led complete-set lamp and empty housing, including led street light / led solar street light /led high bay light / led high pole light / led garden light / led urban light.
* 6 elite designers & engineers, developing 8-12 new styles every year.
* ISO9001 quality control system.
* CE, RoHS, TUV certificates.
* ODM and OEM service are both available to customers domestic and overseas.
